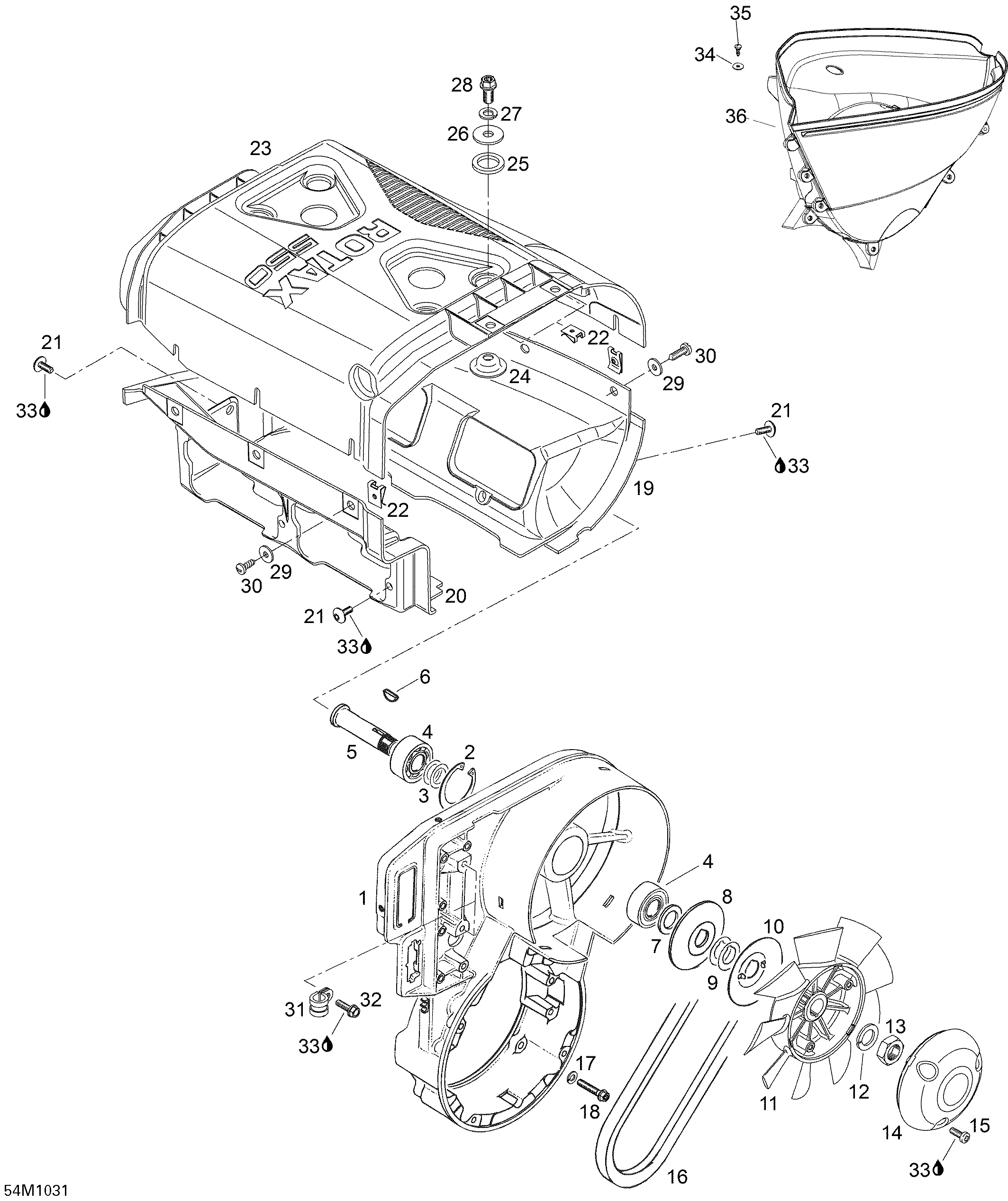

01- Fan для BRP Ski-Doo Skandic SUV 550F - 2010
-
№АртикулНазвание
-
1420912203 Fan HousingFan Housing
-
2420945880 Lock RingLock Ring
-
3420244585 ShimShim
-
4420832161 Ball BearingBall Bearing
-
5420937940 Fan AxleFan Axle
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Spacer BushingSpacer Bushing
-
8420980496 FlangeFlange
-
9420827080 Shim 0.5 mmShim 0.5 mm
-
9420827082 Shim 0.2 mmShim 0.2 mm
-
10420980523 Protection WasherProtection Washer
-
11420866294 FanFan
-
12420945756 Lock WasherLock Washer
-
13420942285 Hex. Nut M16 X 1.5Hex. Nut M16 X 1.5
-
14420975900 Fan CoverFan Cover
-
15420841971 ScrewScrew
-
16414630800 V-BeltV-Belt
-
17420945751 Lock Washer 6 mmLock Washer 6 mm
-
18420440642 Torx Flanged Screw M6 X 30Torx Flanged Screw M6 X 30
-
19420811392 Lower CowlingLower Cowling
-
20420812600 Lower CowlingLower Cowling
-
21420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
22417300005 Spring Nut 4.8Spring Nut 4.8
-
23420812596 Cylinder CowlCylinder Cowl
-
24420827817 Cup WasherCup Washer
-
25420960865 Rubber WasherRubber Washer
-
26420227935 WasherWasher
-
27420945752 Lock Washer 8 mmLock Washer 8 mm
-
28420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
29420926185 WasherWasher
-
30417300006 Tapping Screw M4.8 X 16Tapping Screw M4.8 X 16
-
31420851250 ClampClamp
-
32420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34250000222 Slotted Indented Hex. Screw #10 X 5/8Slotted Indented Hex. Screw #10 X 5/8
-
35391301600 WasherWasher
-
36605155173 Cooling Channel Ass'yCooling Channel Ass'y
