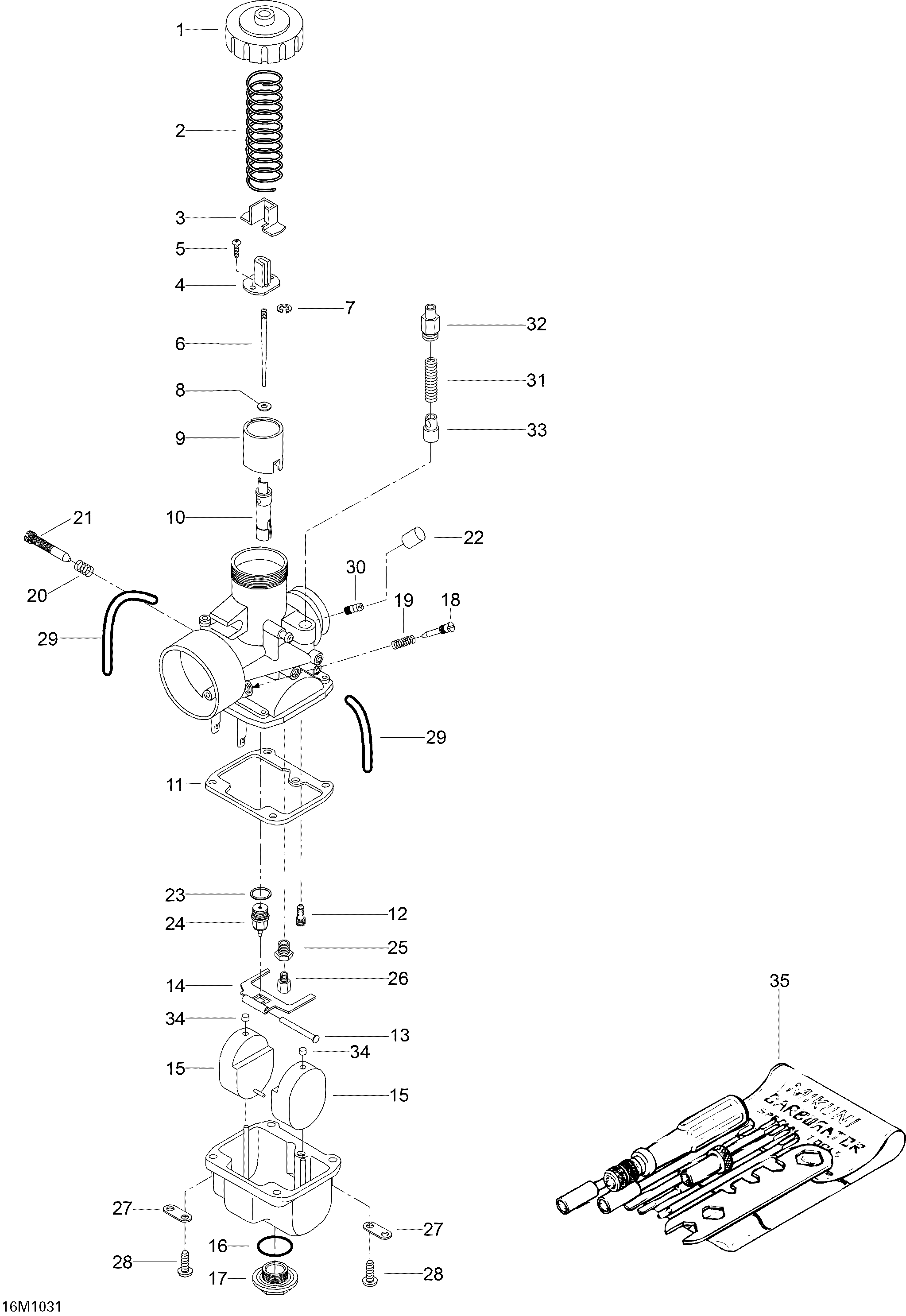

02- Carburetor для BRP Ski-Doo Skandic SUV 550F - 2010
-
№АртикулНазвание
-
—605619004 Carburetor VM30-215. Includes 1 to 34Carburetor VM30-215. Includes 1 to 34
-
1404103700 CoverCover
-
2404154800 SpringSpring
-
3404122100 CoverCover
-
4404160800 ConnectorConnector
-
5404121300 Screw With WasherScrew With Washer
-
6404162113 Needle J8-6BFY46Needle J8-6BFY46
-
7404152400 E-RingE-Ring
-
8404117000 PackingPacking
-
9404128400 Piston Valve 2.5Piston Valve 2.5
-
10404120800 Needle Jet NJ P-8 (159)Needle Jet NJ P-8 (159)
-
11404104200 GasketGasket
-
12404109100 Pilot Jet PJ40Pilot Jet PJ40
-
13404103300 Lever PinLever Pin
-
14404107600 Float LeverFloat Lever
-
15404107100 FloatFloat
-
16404107300 O-RingO-Ring
-
17404107400 Drain Plug ScrewDrain Plug Screw
-
18404102300 Air ScrewAir Screw
-
19404101800 SpringSpring
-
20404101700 SpringSpring
-
21404102800 Idle Speed ScrewIdle Speed Screw
-
22404156600 CapCap
-
23404101600 Seat WasherSeat Washer
-
24404147500 Needle Valve 1.2Needle Valve 1.2
-
25404105500 Guide ScrewGuide Screw
-
26404119000 Main Jet, MJ 190Main Jet, MJ 190
-
27404103000 PlatePlate
-
28404102000 Screw With Lock WasherScrew With Lock Washer
-
29404160100 Air Vent TubeAir Vent Tube
-
30404127600 NippleNipple
-
31404127400 SpringSpring
-
32404161100 Guide HolderGuide Holder
-
33404160400 Plunger Ass'yPlunger Ass'y
-
34404105800 CapCap
-
35404112000 Tool KitTool Kit
