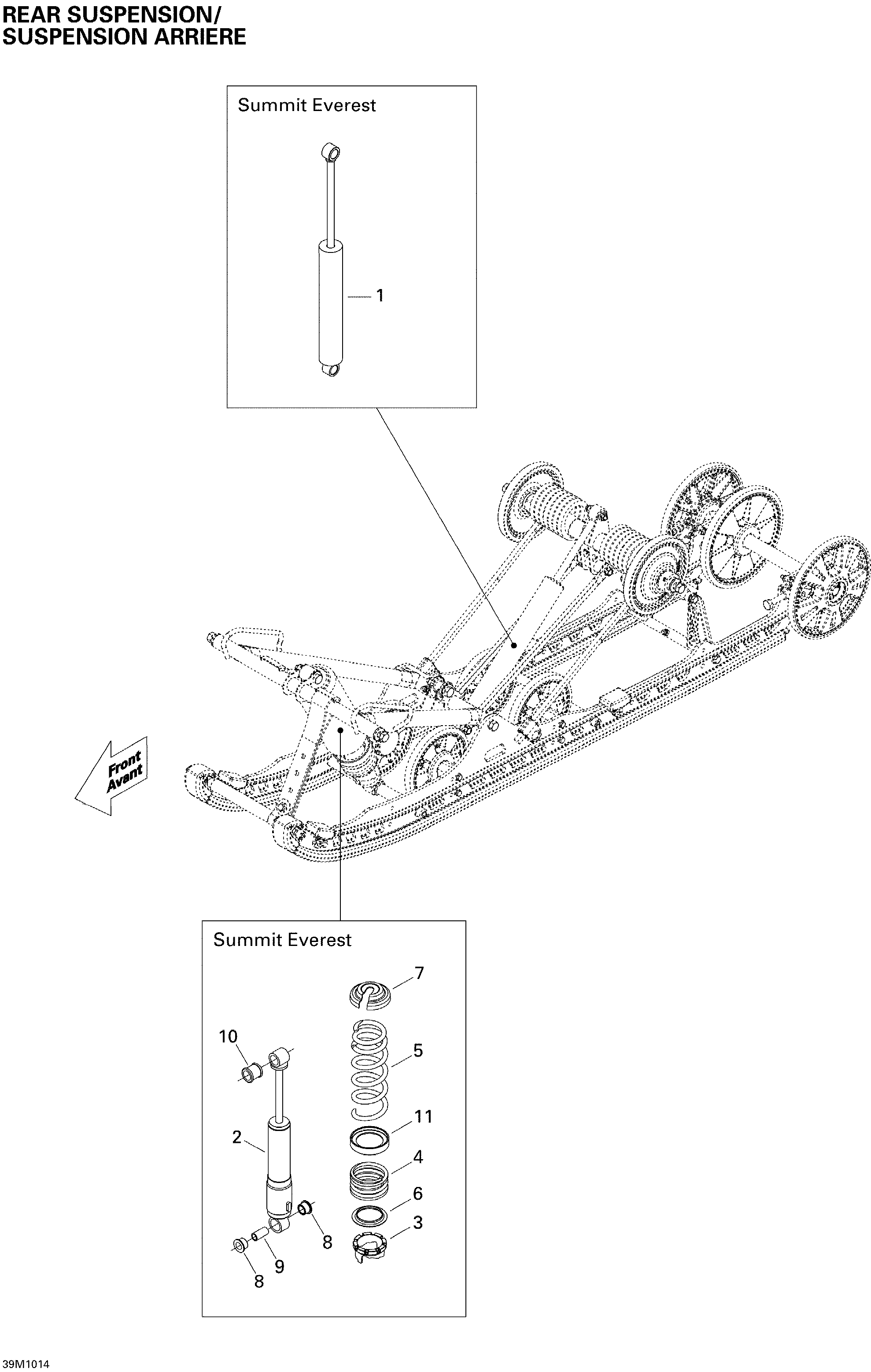

08- Rear Suspension Shocks для BRP Ski-Doo Summit Everest 800R PTEK - 2010
-
№АртикулНазвание
-
1503192207 Rear ShockRear Shock
-
2503192182 Center ShockCenter Shock
-
3505070150 Adjustment CamAdjustment Cam
-
4503191343 SpringSpring
-
5503192279 SpringSpring
-
6503191872 Spring GuideSpring Guide
-
7503192029 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
-
11503191281 Spring SpacerSpring Spacer
