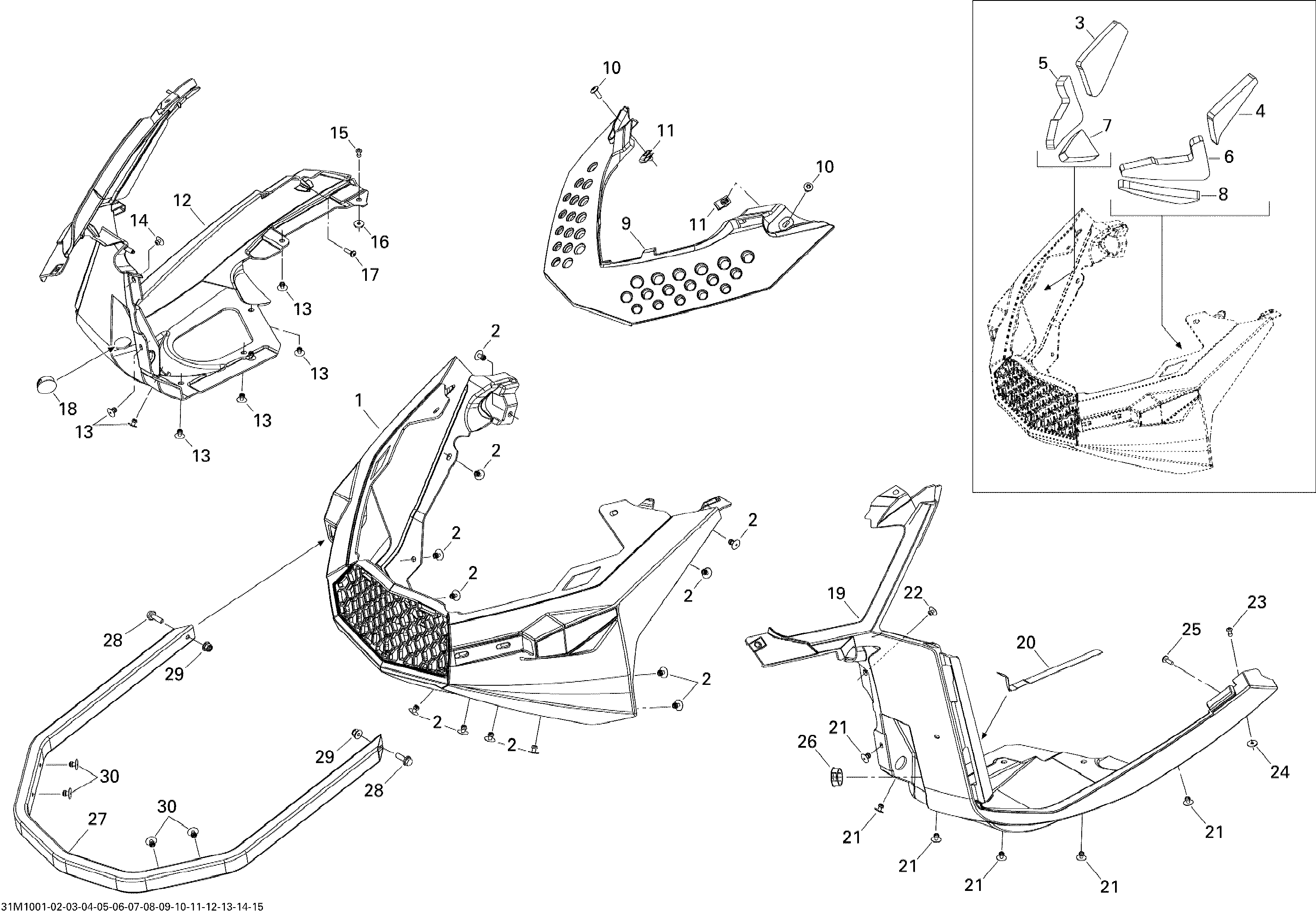

09- Bottom Pan для BRP Ski-Doo Summit Everest 800R PTEK - 2010
-
№АртикулНазвание
-
1502006971 Black Front Bottom PanBlack Front Bottom Pan
-
2293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
3502006829 RH Foam UpperRH Foam Upper
-
4502006830 LH Foam UpperLH Foam Upper
-
5502006906 RH Middle FoamRH Middle Foam
-
6502006907 LH Middle FoamLH Middle Foam
-
7502006908 RH Lower FoamRH Lower Foam
-
8502006909 LH Lower FoamLH Lower Foam
-
9502007068 Bottom Pan CapBottom Pan Cap
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
12502006831 RH Bottom PanRH Bottom Pan
-
13293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
14293150103 Pop RivetPop Rivet
-
15390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
16517124300 WasherWasher
-
17250000146 Truss Head Torx Screw, K50 X 16Truss Head Torx Screw, K50 X 16
-
18414916600 Nylon CapNylon Cap
-
19502006832 LH Bottom PanLH Bottom Pan
-
20293250087 GasketGasket
-
21293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
-
22293150103 Pop RivetPop Rivet
-
23390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
24517124300 WasherWasher
-
25250000146 Truss Head Torx Screw, K50 X 16Truss Head Torx Screw, K50 X 16
-
26414916600 Nylon CapNylon Cap
-
27502006833 Front BumperFront Bumper
-
28207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
29233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30293150104 Pop Rivet 3/16'', BlackPop Rivet 3/16'', Black
