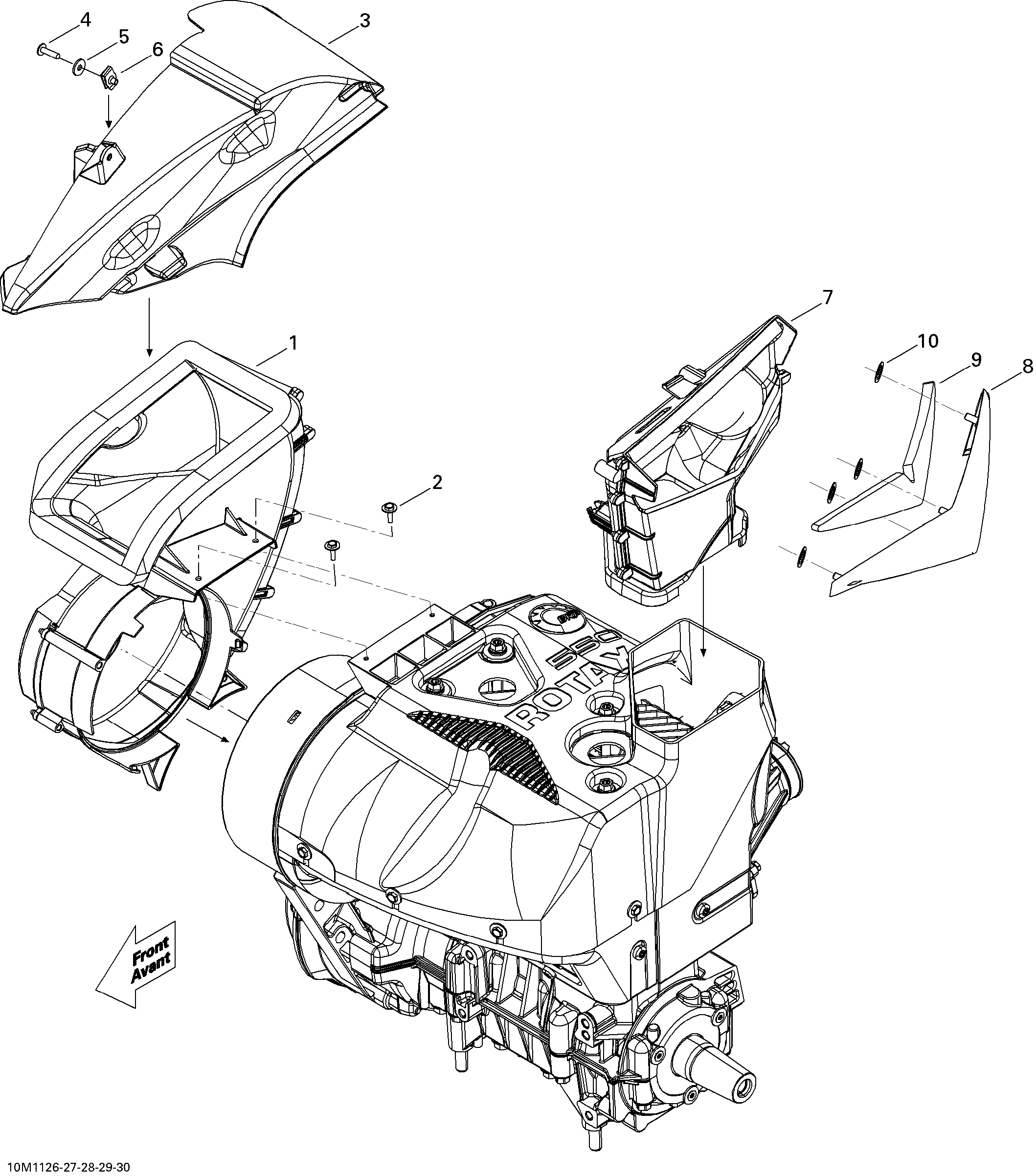

01- Cooling System для BRP Ski-Doo Expedition Sport 550F XP-FAN - 2011
-
№АртикулНазвание
-
1509000448 Inlet Duct Ass'yInlet Duct Ass'y
-
2250000377 Plastite Screw Type K-40 M4 X 16Plastite Screw Type K-40 M4 X 16
-
3509000451 Air Chamber Ass'yAir Chamber Ass'y
-
4250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
5391301600 WasherWasher
-
6250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
7509000452 Outlet Duct Ass.Outlet Duct Ass.
-
8509000585 Outlet Air Deflector. Black-Bkack ModelOutlet Air Deflector. Black-Bkack Model
-
9509000574 Air Inlet FoamAir Inlet Foam
-
10732610072 Push NutPush Nut
