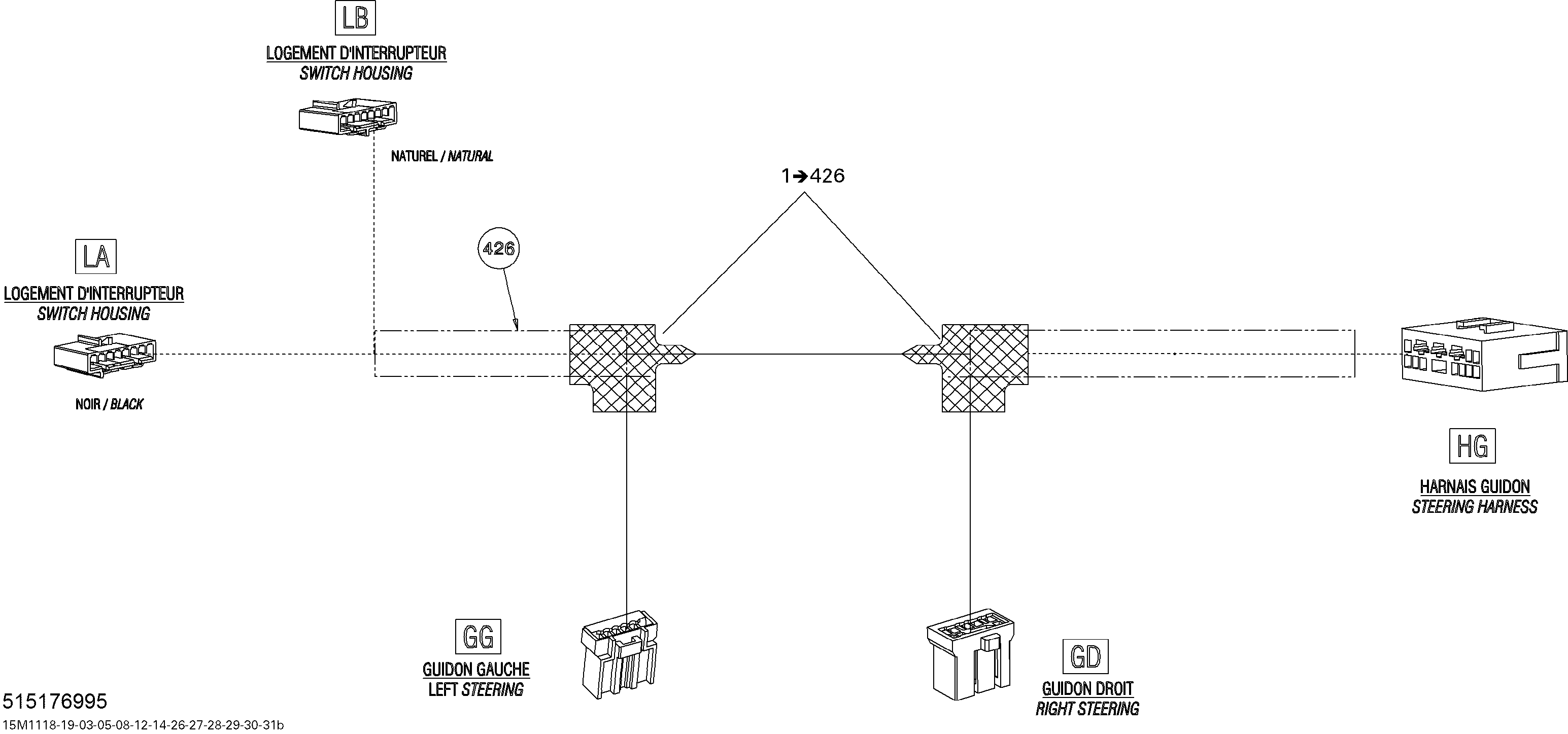

10- Steering Wiring Harness для BRP Ski-Doo Expedition Sport 550F XP-FAN - 2011
-
№АртикулНазвание
-
1515176995 Steering Wiring Harness Ass'y. Includes 1 to 426Steering Wiring Harness Ass'y. Includes 1 to 426
-
GD515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
GD515175231 Female TerminalFemale Terminal
-
GG515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
GG515175231 Female TerminalFemale Terminal
-
HG515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
HG515175273 Male TerminalMale Terminal
-
HG515175232 Male TerminalMale Terminal
-
LA515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
LA515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LA515175808 Female TerminalFemale Terminal
-
LA515175941 Female TerminalFemale Terminal
-
LB293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
LB515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
LB515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LB515175808 Female TerminalFemale Terminal
-
LB515175941 Female TerminalFemale Terminal
-
426515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
