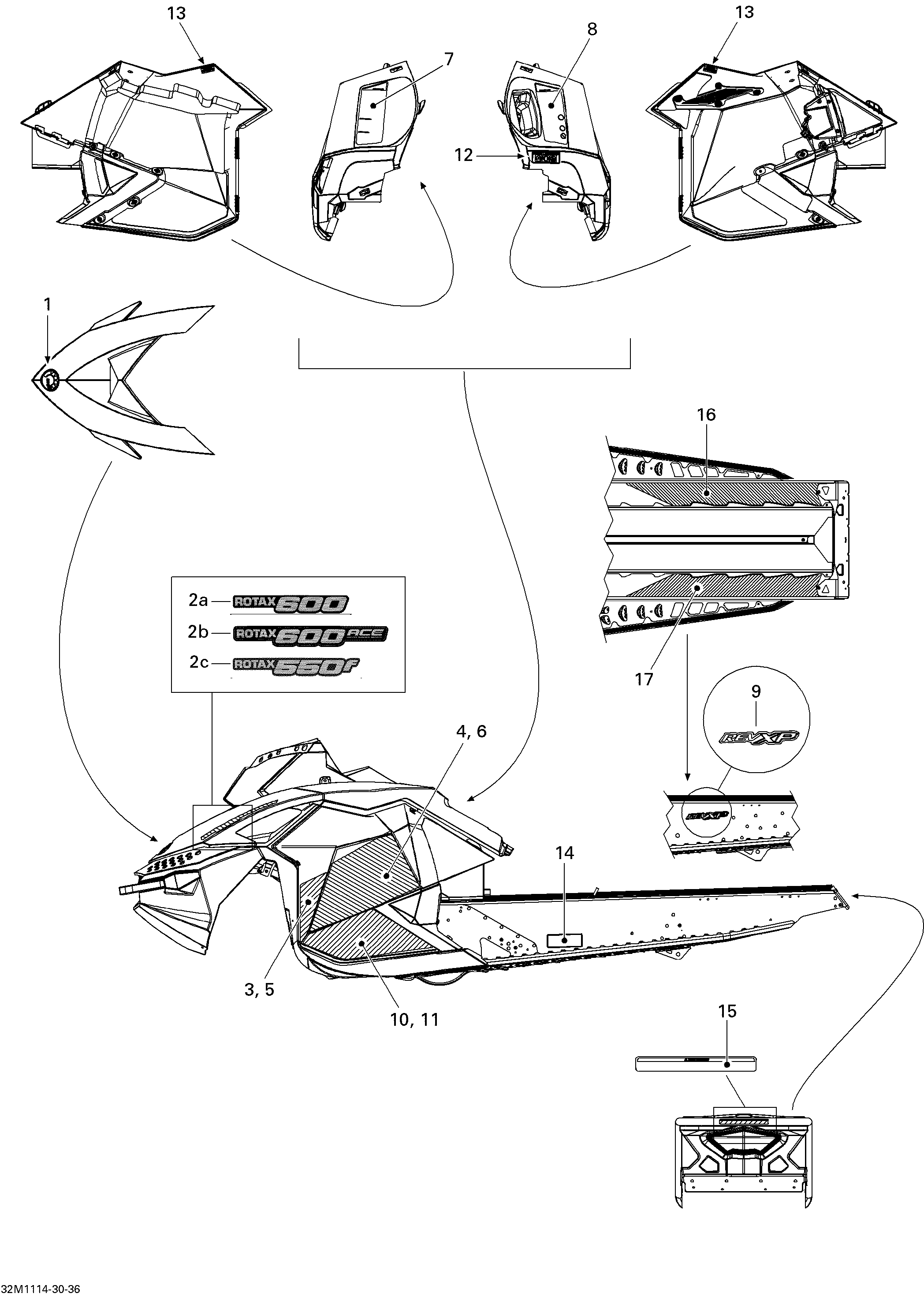

09- Decals для BRP Ski-Doo Grand Touring Sport 600 XP - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2a516004386 Hood Decal, Rotax 600Hood Decal, Rotax 600
-
3516004676 RH Front Side DecalRH Front Side Decal
-
4516004678 RH Side DecalRH Side Decal
-
5516004675 LH Front Side DecalLH Front Side Decal
-
6516004677 LH Side DecalLH Side Decal
-
7516004561 Warning Decal, SecurityWarning Decal, Security
-
8516004589 Warning Decal, SecurityWarning Decal, Security
-
9516004028 Frame Decal, REV XPFrame Decal, REV XP
-
10516004674 RH Lower DecalRH Lower Decal
-
11516004673 LH Lower DecalLH Lower Decal
-
13516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
15516004440 Warning Decal, TrackWarning Decal, Track
-
16516004231 RH Frame DecalRH Frame Decal
-
17516004230 LH Frame DecalLH Frame Decal
