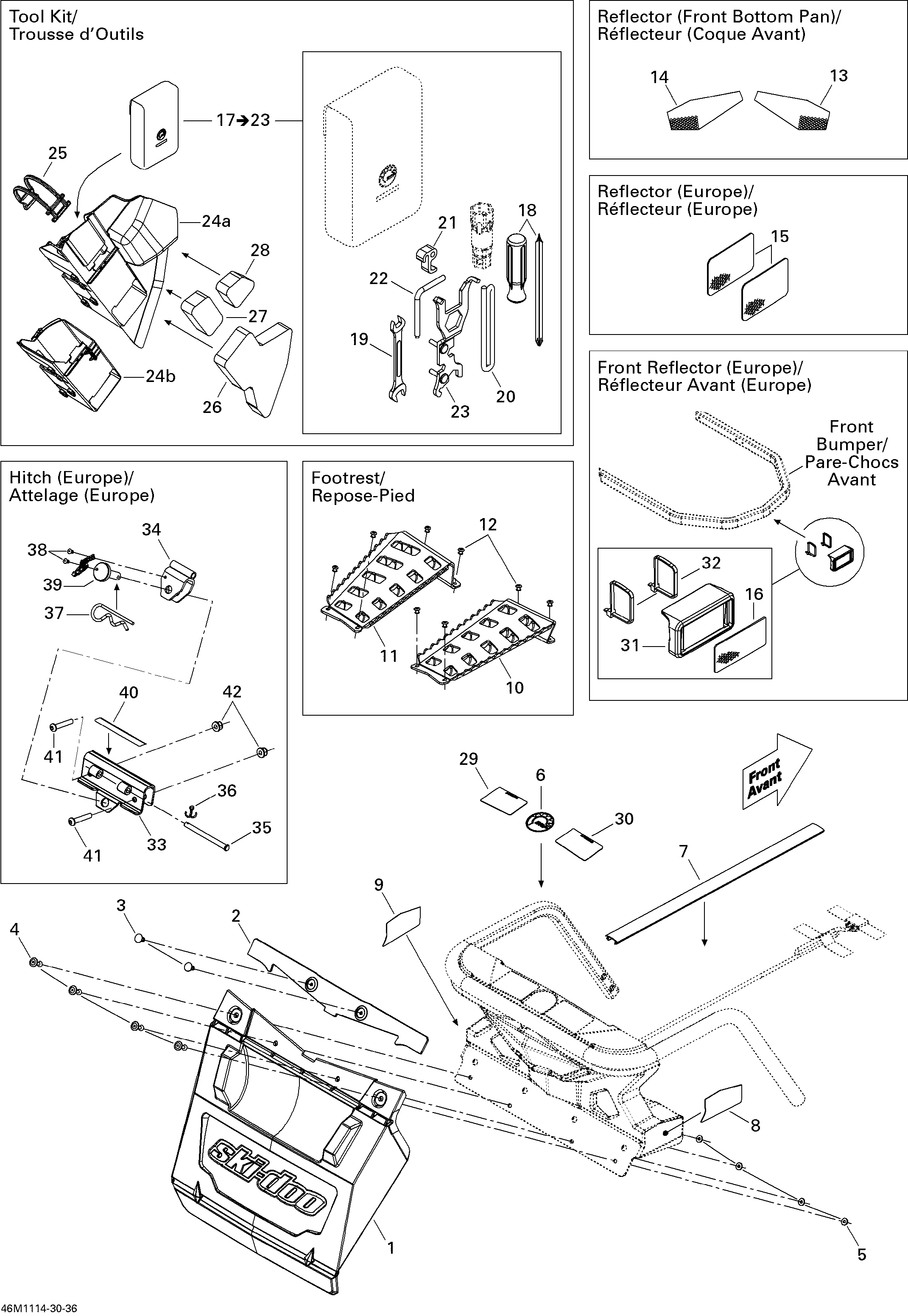

09- Utilities для BRP Ski-Doo Grand Touring Sport 600 XP - 2011
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2520000953 Esthetic PlateEsthetic Plate
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5517124300 WasherWasher
-
6219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
7520000829 Radiator TrimRadiator Trim
-
8520000881 RH Reflector. North AmericaRH Reflector. North America
-
9520000880 LH Reflector. North AmericaLH Reflector. North America
-
10520000887 RH FootrestRH Footrest
-
11520000888 LH FootrestLH Footrest
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13520000718 RH Front ReflectorRH Front Reflector
-
14520000719 LH Front ReflectorLH Front Reflector
-
17529000054 Tool Kit. Includes 17 to 23Tool Kit. Includes 17 to 23
-
18529000004 Screw DriverScrew Driver
-
19529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
20412500200 Starter Rope, MeterStarter Rope, Meter
-
21529019400 Starter GripStarter Grip
-
22520001028 Spacing ToolSpacing Tool
-
23520000988 Wrench SuspensionWrench Suspension
-
24a520000842 Tool Kit RackTool Kit Rack
-
24b520000894 Tool Kit RackTool Kit Rack
-
24b520000894 Tool Kit RackTool Kit Rack
-
25520000528 LatchLatch
-
26520001059 FoamFoam
-
27520001061 FoamFoam
-
28520001062 FoamFoam
-
29516004583 LH Warning Decal, SecurityLH Warning Decal, Security
-
30516004605 RH Warning Decal, SecurityRH Warning Decal, Security
