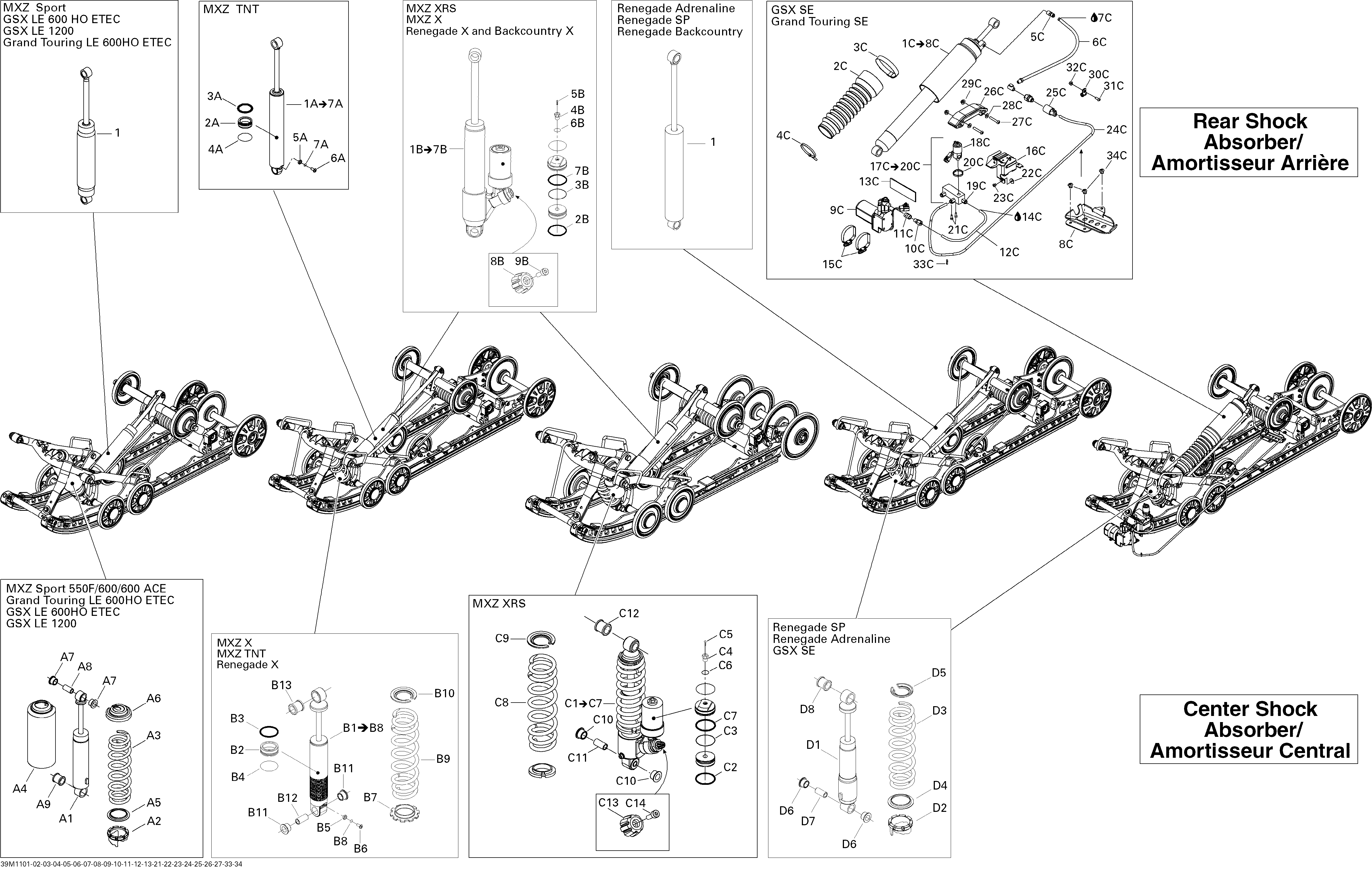

08- Rear Suspension Shocks для BRP Ski-Doo GSX LE 600HO ETEC XP - 2011
-
№АртикулНазвание
-
1503191588 Rear ShockRear Shock
-
A1503191590 Center ShockCenter Shock
-
A2505070150 Adjustment CamAdjustment Cam
-
A3503191329 SpringSpring
-
A4503191126 ProtectorProtector
-
A5503191872 Spring GuideSpring Guide
-
A6706200881 Spring StopperSpring Stopper
-
A7503189117 CushionCushion
-
A8503189282 BushingBushing
-
A9503189271 CushionCushion
