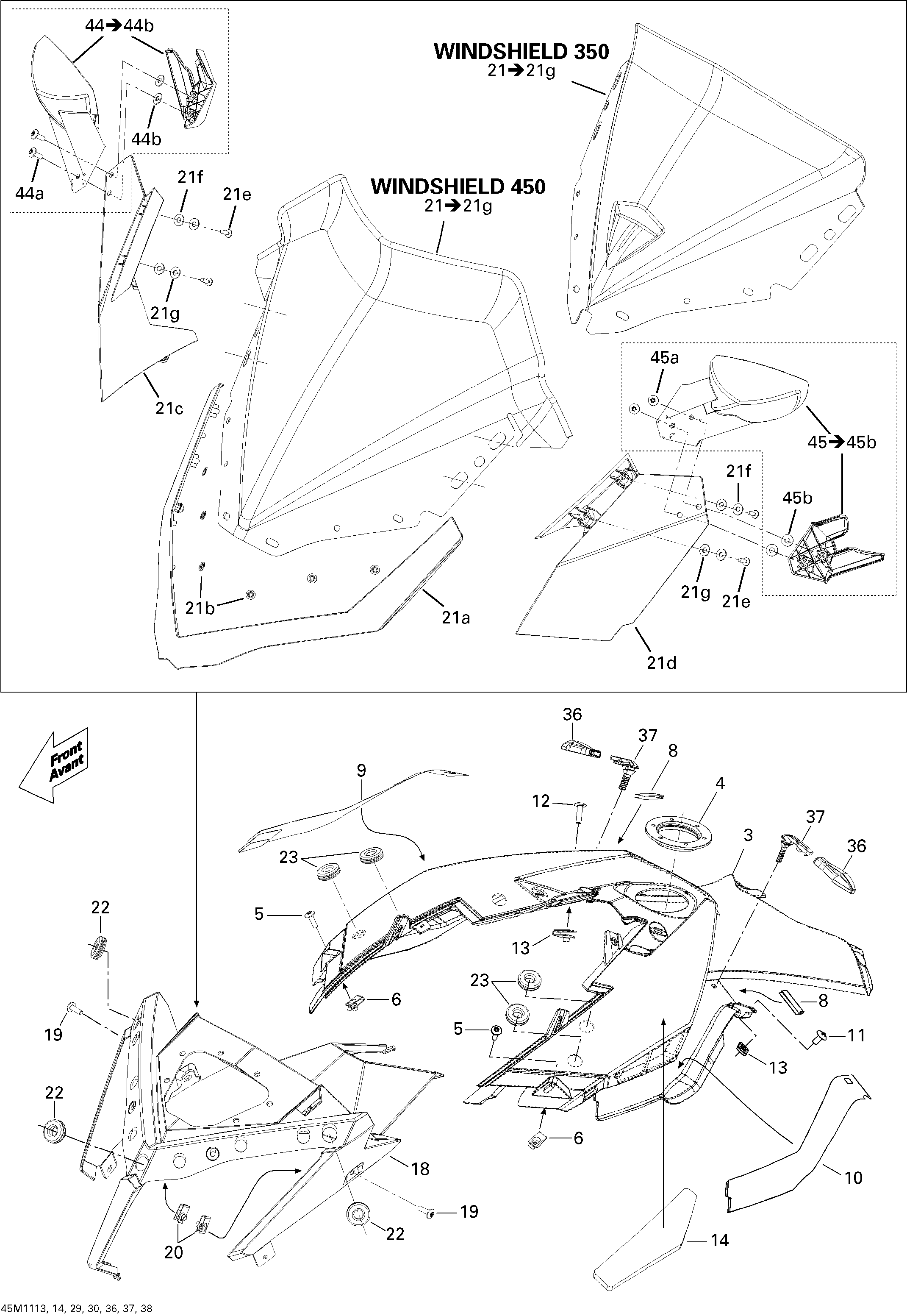

09- Windshield And Console для BRP Ski-Doo GSX LE 600HO ETEC XP - 2011
-
№АртикулНазвание
-
3517304412 White ConsoleWhite Console
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
8517304105 Console DecalConsole Decal
-
9517304103 RH DecalRH Decal
-
10517304104 LH DecalLH Decal
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18517304576 Gauge SupportGauge Support
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
21860200478 Windsheld Kit 375. Includes B21 to B21gWindsheld Kit 375. Includes B21 to B21g
-
21517304395 Windsheld 375mm. Windshield OnlyWindsheld 375mm. Windshield Only
-
21a517303607 Windshield SupportWindshield Support
-
21b732610072 Push NutPush Nut
-
21c517303791 RH Air DeflectorRH Air Deflector
-
21d517303792 LH Air DeflectorLH Air Deflector
-
21e250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
21f250200025 Washer M5Washer M5
-
21g250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
36860200239 Black Latch KitBlack Latch Kit
-
37517303981 Panel LatchPanel Latch
-
44517304146 LH Mirror Ass'yLH Mirror Ass'y
-
44a250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
44b250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
45517304145 RH Mirror Ass'yRH Mirror Ass'y
-
45a250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
45b250200024 Rubber Washer 5 mmRubber Washer 5 mm
