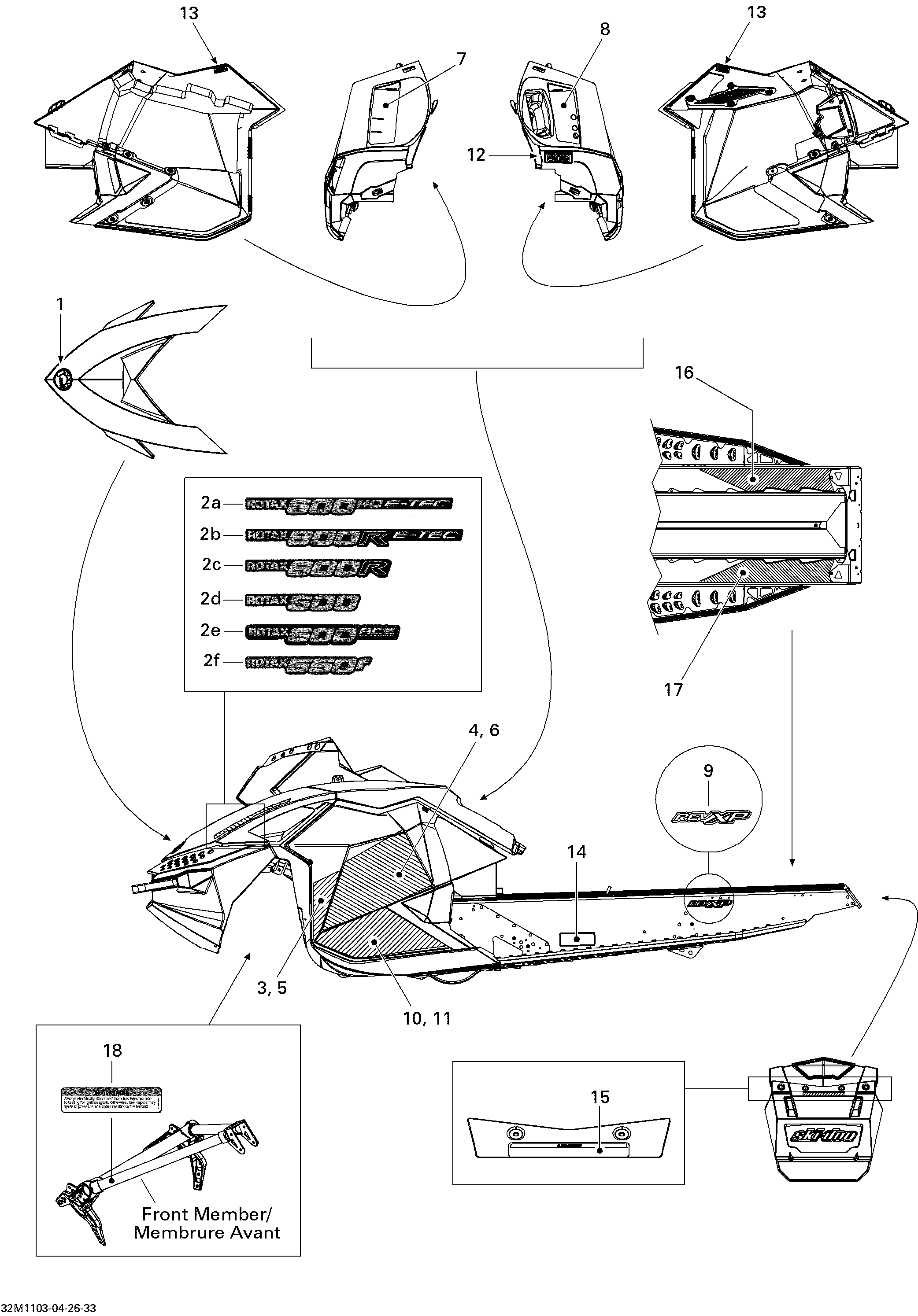

09- Decals 600HOETEC для BRP Ski-Doo MX Z TNT 600HO ETEC - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2a516003532 Hood Decal, Rotax 600 HO E-TECHood Decal, Rotax 600 HO E-TEC
-
3516004680 RH Front Side DecalRH Front Side Decal
-
4516004314 RH Side DecalRH Side Decal
-
5516004679 LH Front Side DecalLH Front Side Decal
-
6516004313 LH Side DecalLH Side Decal
-
7516004561 Warning Decal, SecurityWarning Decal, Security
-
8516004589 Warning Decal, SecurityWarning Decal, Security
-
9516004205 Decal REV XPDecal REV XP
-
10516004316 RH Lower DecalRH Lower Decal
-
11516004315 LH Lower DecalLH Lower Decal
-
13516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
15516004440 Warning Decal, TrackWarning Decal, Track
-
16516003858 RH Frame DecalRH Frame Decal
-
17516003857 LH Frame DecalLH Frame Decal
-
18516003940 Warning Decal, InjectorsWarning Decal, Injectors
