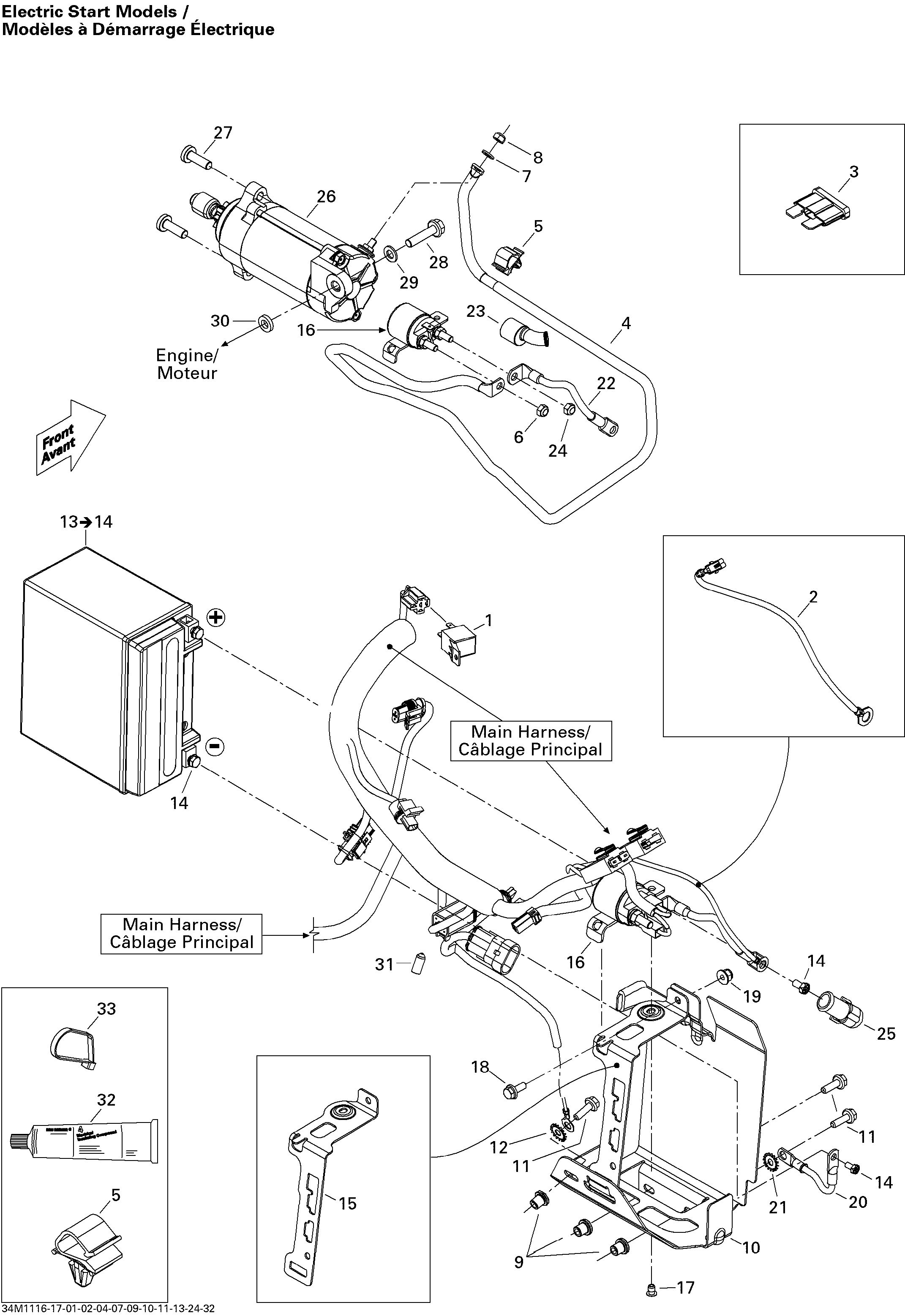

10- Battery And Starter для BRP Ski-Doo MX Z TNT 600HO ETEC - 2011
-
№АртикулНазвание
-
1515177041 RelayRelay
-
2515176744 Fuse Battery WireFuse Battery Wire
-
3410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
4515176785 Battery WireBattery Wire
-
5515176795 ClipClip
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7234061410 Flat Washer 6 mmFlat Washer 6 mm
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9415107300 InsertInsert
-
10515176886 Battery Support Ass'yBattery Support Ass'y
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
13410301203 Battery, 18 Amperes. 600HO ETEC, Inclus 13 to 14Battery, 18 Amperes. 600HO ETEC, Inclus 13 to 14
-
13296000295 Battery 18 Amp. 800R ETEC, Includes 13 to 14Battery 18 Amp. 800R ETEC, Includes 13 to 14
-
14295500849 Battery Fastener KitBattery Fastener Kit
-
15515177008 Battery StripBattery Strip
-
16515176501 Starter RelayStarter Relay
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20515176358 Ground WireGround Wire
-
21250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
22515176556 Battery WireBattery Wire
-
23515175919 Protector CapProtector Cap
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25710000495 Protector CapProtector Cap
-
26515176858 Starter Ass'yStarter Ass'y
-
27250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
28207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
29250200008 Flat Washer 8 mmFlat Washer 8 mm
-
30515176500 Washer. 600HO ETECWasher. 600HO ETEC
-
31515176141 CapCap
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
33293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
33293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
33293750008 Tie-Rap 350 mmTie-Rap 350 mm
