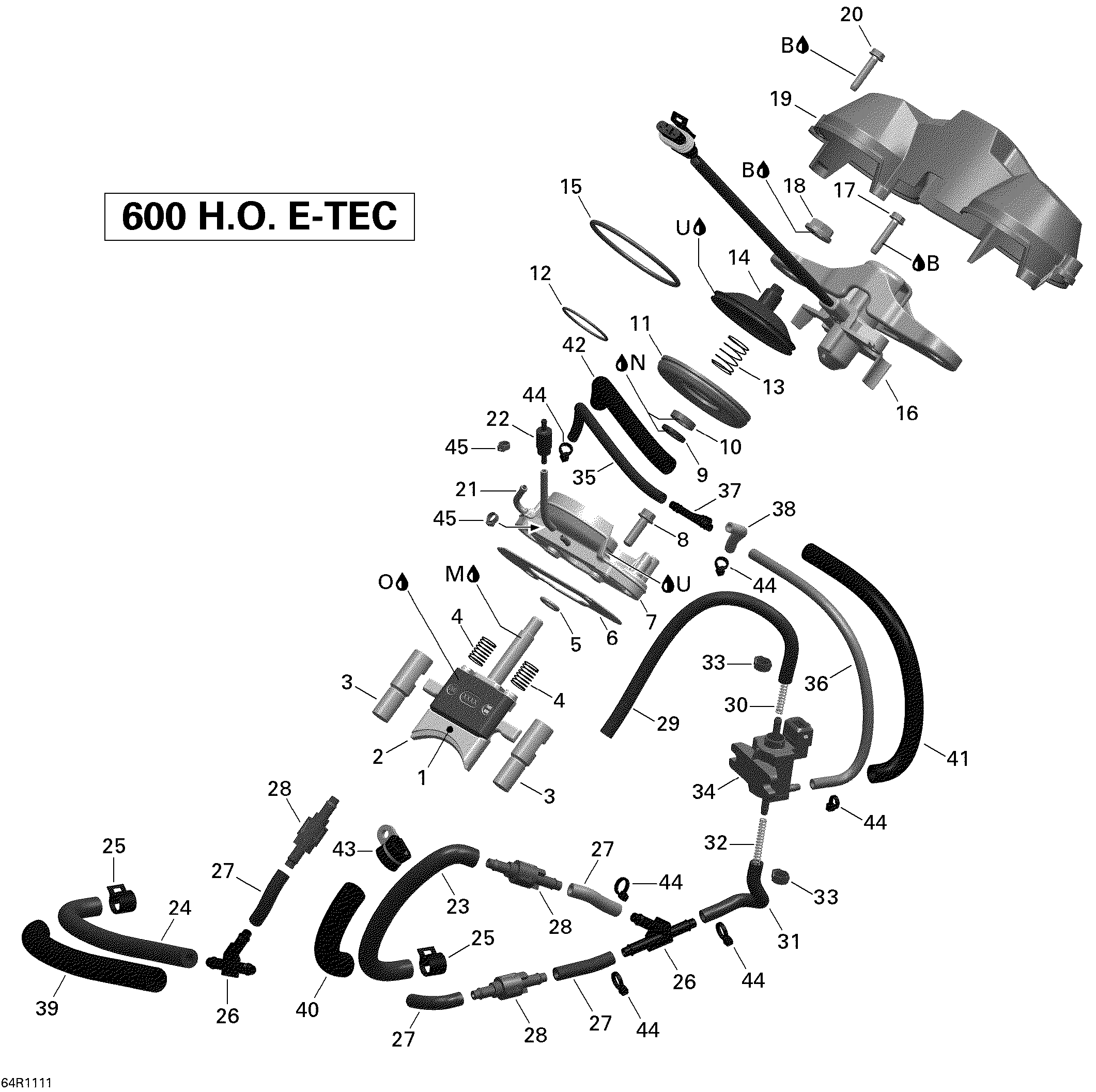

01- 3D Rave для BRP Ski-Doo MX Z X 600HO ETEC - 2011
-
№АртикулНазвание
-
1420854980 Exhaust Valve, UpperExhaust Valve, Upper
-
2420854973 Exhaust Valve, LowerExhaust Valve, Lower
-
3420854990 Exhaust ValveExhaust Valve
-
4420238556 SpringSpring
-
5420931765 O-RingO-Ring
-
6420430032 GasketGasket
-
7420854888 Valve HousingValve Housing
-
8420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
9420431380 Gasket RingGasket Ring
-
10420950730 Oil SealOil Seal
-
11420260724 BellowsBellows
-
12420838255 Hose SpringHose Spring
-
13420238557 SpringSpring
-
14420854442 Valve CoverValve Cover
-
15420939285 Hose SpringHose Spring
-
16420854088 Position SensorPosition Sensor
-
17420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
18420942190 Nut M12 X 1.5Nut M12 X 1.5
-
19420910820 Rave CoverRave Cover
-
20420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
21414413800 Oil HoseOil Hose
-
22420956515 Check Valve Ass'yCheck Valve Ass'y
-
23420460782 Molded HoseMolded Hose
-
24420460782 Molded HoseMolded Hose
-
25420853511 ClampClamp
-
26420460635 Y-FittingY-Fitting
-
27420460851 High Pressure Air Hose, 40 mmHigh Pressure Air Hose, 40 mm
-
28420660543 Check ValveCheck Valve
-
29415080200 High Pressure Air Hose, 205 mmHigh Pressure Air Hose, 205 mm
-
30420939972 SpringSpring
-
31420460852 High Pressure Air Hose, 80 mmHigh Pressure Air Hose, 80 mm
-
32420939972 SpringSpring
-
33420853658 Gear ClampGear Clamp
-
34270600005 Solenoid ValveSolenoid Valve
-
35420660571 High Pressure Air Hose, 180 mmHigh Pressure Air Hose, 180 mm
-
36420660575 High Pressure Air Hose, 220 mmHigh Pressure Air Hose, 220 mm
-
37293710068 T-FittingT-Fitting
-
38420660572 High Pressure Air Hose, 50 mmHigh Pressure Air Hose, 50 mm
-
39409901800 Tubing 13 mmTubing 13 mm
-
40409901800 Tubing 13 mmTubing 13 mm
-
41415079900 Tubing 10 mmTubing 10 mm
-
42415079900 Tubing 10 mmTubing 10 mm
-
43420851250 ClampClamp
-
44293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
45420851508 ClampClamp
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
M420297433 Molykote G-N, 50 gMolykote G-N, 50 g
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
U420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
