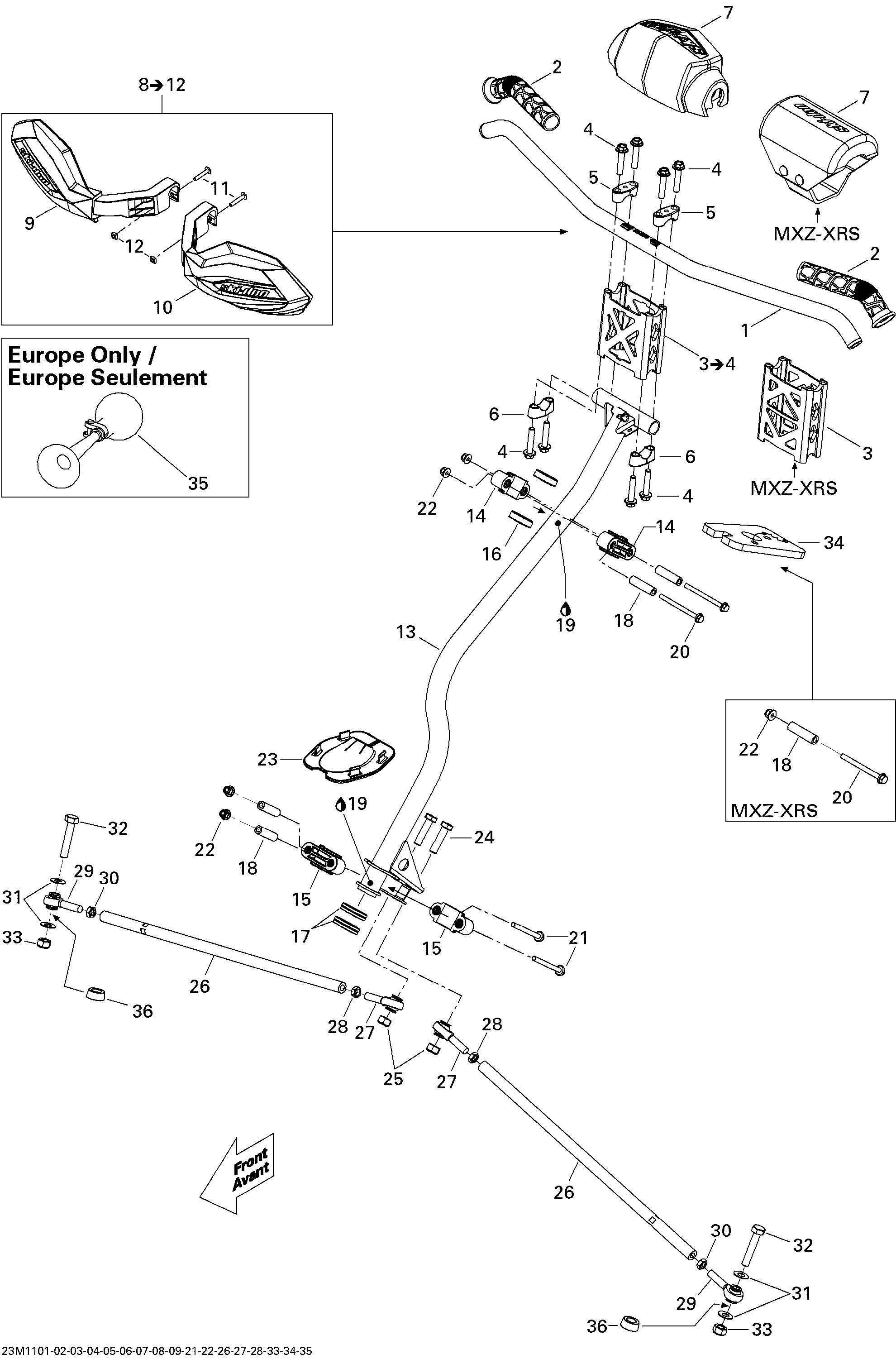

07- Steering 600HO ETEC для BRP Ski-Doo MX Z X 600HO ETEC - 2011
-
№АртикулНазвание
-
1506152458 HandlebarHandlebar
-
2506152226 GripGrip
-
3860200268 Handlebar Extension Kit. Includes 3 to 4Handlebar Extension Kit. Includes 3 to 4
-
4250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
5506152395 Steering SupportSteering Support
-
6506152395 Steering SupportSteering Support
-
7506152192 Steering PadSteering Pad
-
8860200470 Air Deflector Kit, Black. Includes 8 to 12Air Deflector Kit, Black. Includes 8 to 12
-
8860200469 Air Deflector Kit, White. Includes 8 to 12Air Deflector Kit, White. Includes 8 to 12
-
9517304439 RH Deflector, BlackRH Deflector, Black
-
9517304659 RH Deflector, WhiteRH Deflector, White
-
10517304440 LH Deflector, BlackLH Deflector, Black
-
10517304660 LH Deflector, WhiteLH Deflector, White
-
11250000501 Phillips Screw M6 X 35. For Black Kit and Red KitPhillips Screw M6 X 35. For Black Kit and Red Kit
-
11250000406 Socket Screw Head Flange M6 X 35. For Yellow Kit and White KitSocket Screw Head Flange M6 X 35. For Yellow Kit and White Kit
-
12250000498 Square Nut M6. For Black Kit and Red KitSquare Nut M6. For Black Kit and Red Kit
-
12232862412 Scare nut M6. For Yellow Kit and White KitScare nut M6. For Yellow Kit and White Kit
-
13506152469 Main Tube. 600HO ETECMain Tube. 600HO ETEC
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152217 Lower Half-HousingLower Half-Housing
-
16506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
17506152218 Lower Vibration RingLower Vibration Ring
-
18506152297 Housing BushingHousing Bushing
-
19293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152496 Tie-RodTie-Rod
-
27506152081 LH Thread Ball JointLH Thread Ball Joint
-
28250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
29506152019 RH Thread Ball JointRH Thread Ball Joint
-
30732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
31506152194 WasherWasher
-
32207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
33232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
34506152521 CushionCushion
