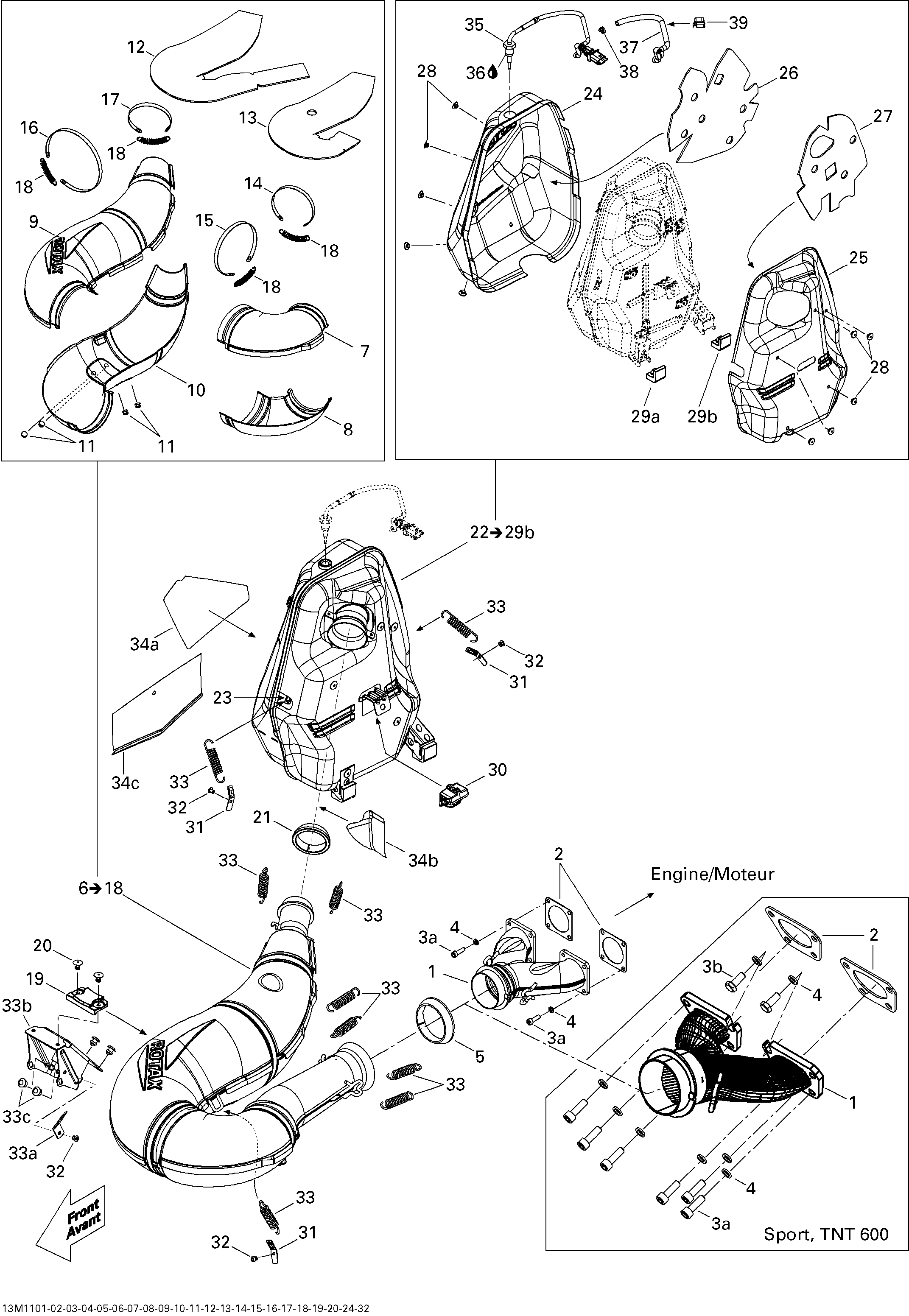

01- Exhaust System 800R ETEC для BRP Ski-Doo MX Z X 800R ETEC - 2011
![](/wa-data/public/shop/sheme/bombardier/ski-doo/c526e47d-3027-472f-ba20-687c3606627d.png)
-
№АртикулНазвание
-
1420673373 Exhaust Manifold. 800R ETECExhaust Manifold. 800R ETEC
-
2420430482 Gasket. 800R ETECGasket. 800R ETEC
-
3a250000414 Socket Head Screw M8 X 22. 800R ETECSocket Head Screw M8 X 22. 800R ETEC
-
4250200111 Washer. 800R ETECWasher. 800R ETEC
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054812 Tune Pipe Ass'y. Includes 6 to 18, 800R ETECTune Pipe Ass'y. Includes 6 to 18, 800R ETEC
-
7514054485 Front Upper EnveloppeFront Upper Enveloppe
-
8514054486 Front Lower EnveloppeFront Lower Enveloppe
-
9514054590 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11293150091 Henrob RivetHenrob Rivet
-
12514054487 Insulating WoolInsulating Wool
-
14514054408 Retaining StrapRetaining Strap
-
15514054409 Retaining StrapRetaining Strap
-
16514054410 Retaining StrapRetaining Strap
-
17514053499 Retaining StrapRetaining Strap
-
18514053643 SpringSpring
-
19514054275 BumperBumper
-
20293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
21514054174 Exhaust GasketExhaust Gasket
-
22514054663 Muffler Ass'y. Includes 22 to 29b, 800R ETECMuffler Ass'y. Includes 22 to 29b, 800R ETEC
-
23514054155 Spring BracketSpring Bracket
-
24514054710 RH Deflector. 800R ETECRH Deflector. 800R ETEC
-
25514054202 LH Deflector. 800R ETECLH Deflector. 800R ETEC
-
26514054711 RH Insulating WoolRH Insulating Wool
-
27514054299 LH Insulating WoolLH Insulating Wool
-
28390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
29a514054274 Lower StopperLower Stopper
-
29b514054496 Lower StopperLower Stopper
-
30514054606 Upper StopperUpper Stopper
-
31514054087 Spring Bracket. 800R ETECSpring Bracket. 800R ETEC
-
32293150147 Hemlock Rivet. 800R ETECHemlock Rivet. 800R ETEC
-
33514054226 SpringSpring
-
34a514054488 Reflective SheetReflective Sheet
-
34b514054817 Heat ShieldHeat Shield
-
35514054641 Temperature SensorTemperature Sensor
-
36293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
39414227300 ClipClip
