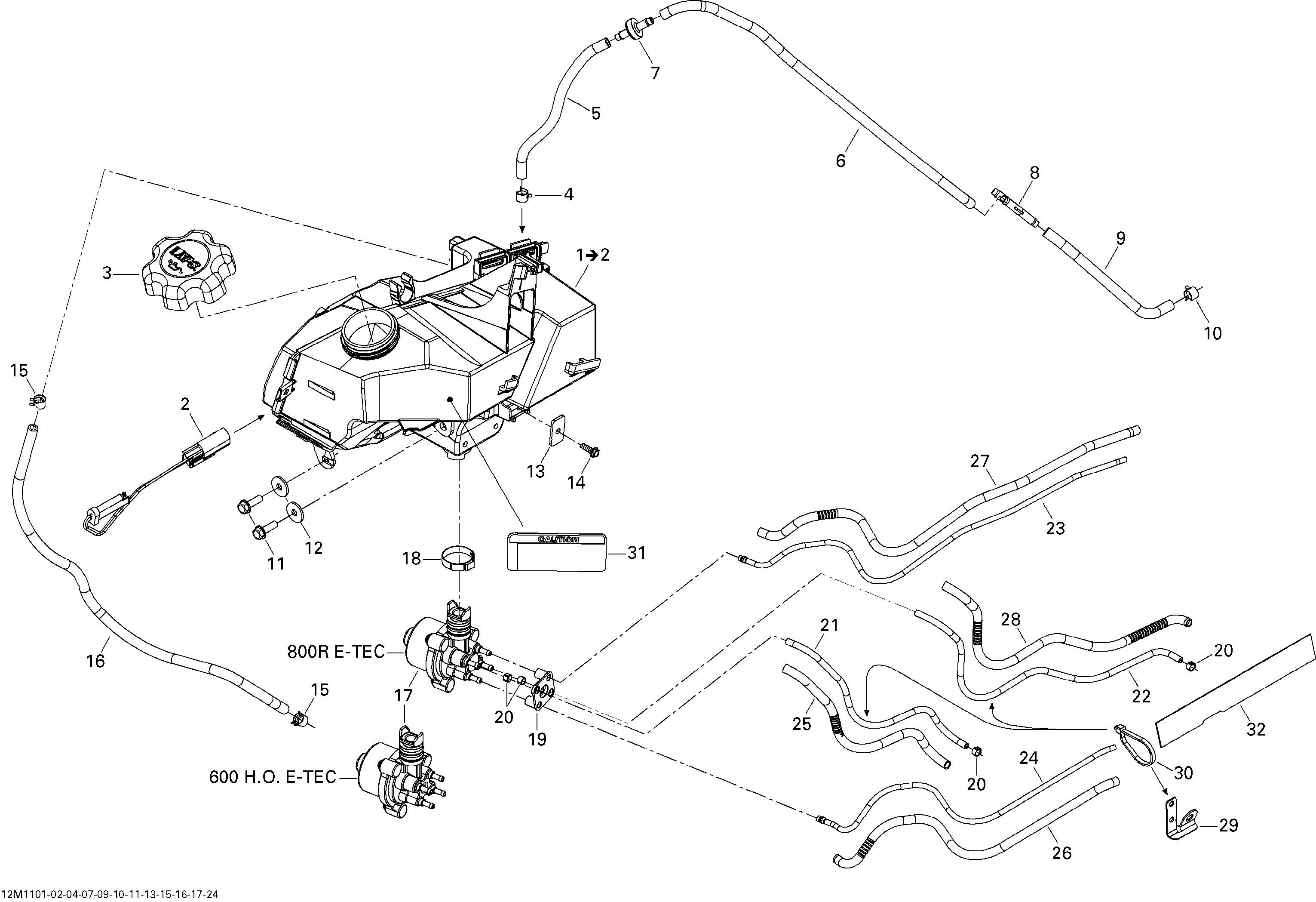

02- Oil System 800RETEC для BRP Ski-Doo MX Z X 800R ETEC - 2011
-
№АртикулНазвание
-
1519000257 Oil Tank. Includes 1 to 2Oil Tank. Includes 1 to 2
-
2515176508 Oil Level SensorOil Level Sensor
-
3519000194 CapCap
-
4414554800 Spring ClampSpring Clamp
-
5415080200 Hose, PolyurethaneHose, Polyurethane
-
6415080200 Hose, PolyurethaneHose, Polyurethane
-
7275500398 Check ValveCheck Valve
-
8293710059 Y-FittingY-Fitting
-
9415080200 Hose, PolyurethaneHose, Polyurethane
-
10414554800 Spring ClampSpring Clamp
-
11250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
12224061201 Flat WasherFlat Washer
-
13519000179 BracketBracket
-
14241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
15414554800 Spring ClampSpring Clamp
-
16415080200 Hose, PolyurethaneHose, Polyurethane
-
17519000254 Oil PumpOil Pump
-
18293650099 Oetiker Gear ClampOetiker Gear Clamp
-
19519000271 BracketBracket
-
20293650100 Oetiker ClampOetiker Clamp
-
21519000182 Hose 3.5 mmHose 3.5 mm
-
22519000182 Hose 3.5 mmHose 3.5 mm
-
23519000184 Hose 2.5 mmHose 2.5 mm
-
24519000184 Hose 2.5 mmHose 2.5 mm
-
25515175442 Tubing 6 mmTubing 6 mm
-
26515175442 Tubing 6 mmTubing 6 mm
-
27515175442 Tubing 6 mmTubing 6 mm
-
28515175442 Tubing 6 mmTubing 6 mm
-
29519000245 BracketBracket
-
30293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
31516004719 Notice Decal, OilNotice Decal, Oil
-
32516004648 Protect DecalProtect Decal
