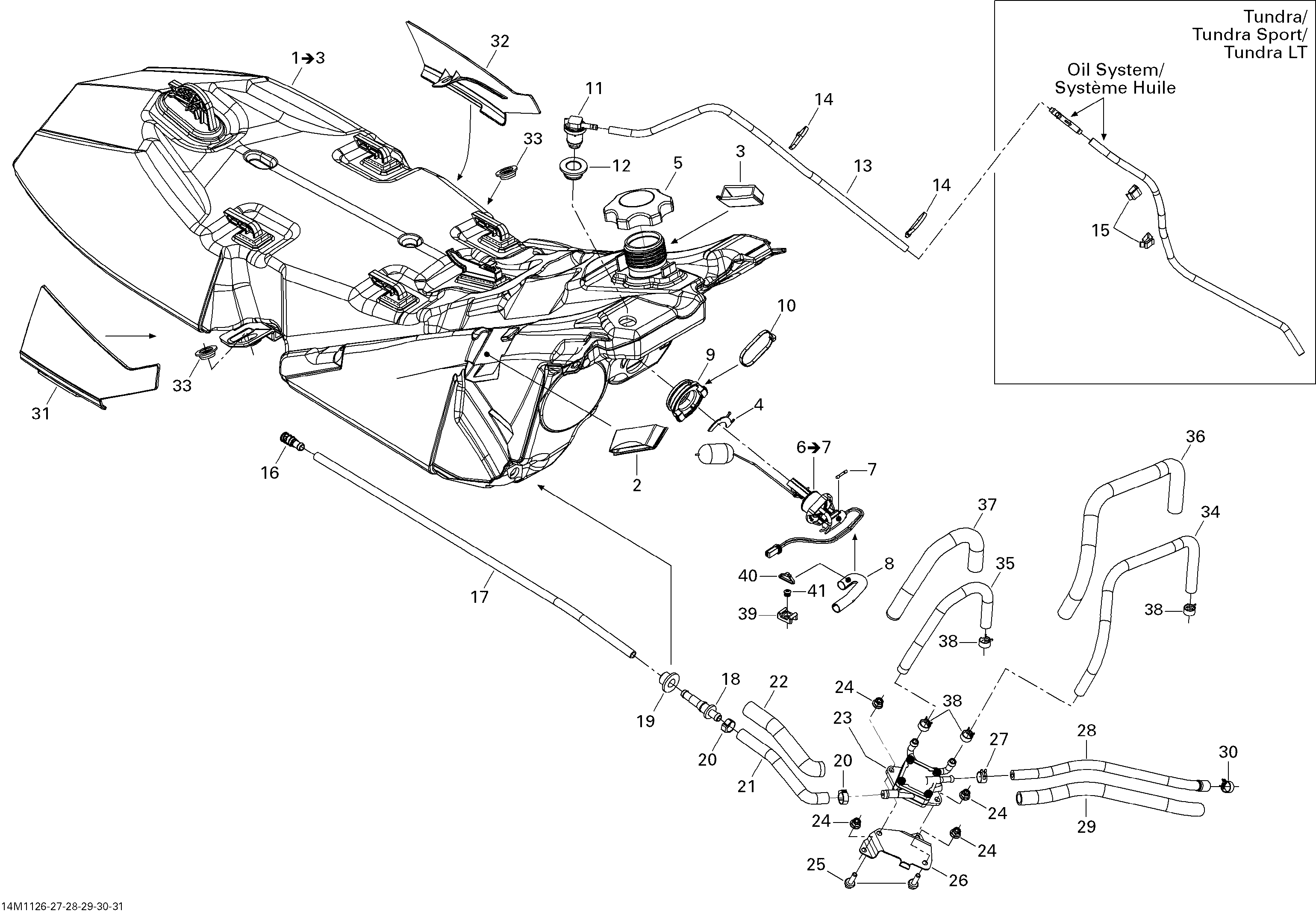

02- Fuel System для BRP Ski-Doo MXZ Sport 550F XP-FAN - 2011
-
№АртикулНазвание
-
1513033574 Fuel Tank Ass'y. Includes 1 to 3Fuel Tank Ass'y. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033649 SpacerSpacer
-
5513033025 Fuel Tank CapFuel Tank Cap
-
6513033624 Fuel Level Sensor Ass'y. Includes 6 to 7Fuel Level Sensor Ass'y. Includes 6 to 7
-
7710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
8415079900 Tubing 10 mmTubing 10 mm
-
9513033606 GrommetGrommet
-
10293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
11513033188 Check ValveCheck Valve
-
12513033596 GrommetGrommet
-
13415080200 Hose, PolyurethaneHose, Polyurethane
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16414872100 Fuel FilterFuel Filter
-
17513033332 HoseHose
-
18414872700 Male ConnectorMale Connector
-
19513033435 GrommetGrommet
-
20293650053 Crimp ClampCrimp Clamp
-
21513033499 Formed HoseFormed Hose
-
22415080000 Tubing 16 mmTubing 16 mm
-
23403901813 Fuel PumpFuel Pump
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
26513033543 Pump BracketPump Bracket
-
27414415200 Universal Spring ClampUniversal Spring Clamp
-
28513033553 Formed HoseFormed Hose
-
29415080000 Tubing 16 mmTubing 16 mm
-
30513033029 Universal Spring ClampUniversal Spring Clamp
-
31513033418 RH CapRH Cap
-
32513033419 LH CapLH Cap
-
33513033326 Shoulder BushingShoulder Bushing
-
34415129492 HoseHose
-
35415129492 HoseHose
-
36415080000 Tubing 16 mmTubing 16 mm
-
37415080000 Tubing 16 mmTubing 16 mm
-
38513033029 Universal Spring ClampUniversal Spring Clamp
-
39515176795 ClipClip
-
40293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
41390402000 Pop Rivet 3/16''Pop Rivet 3/16''
