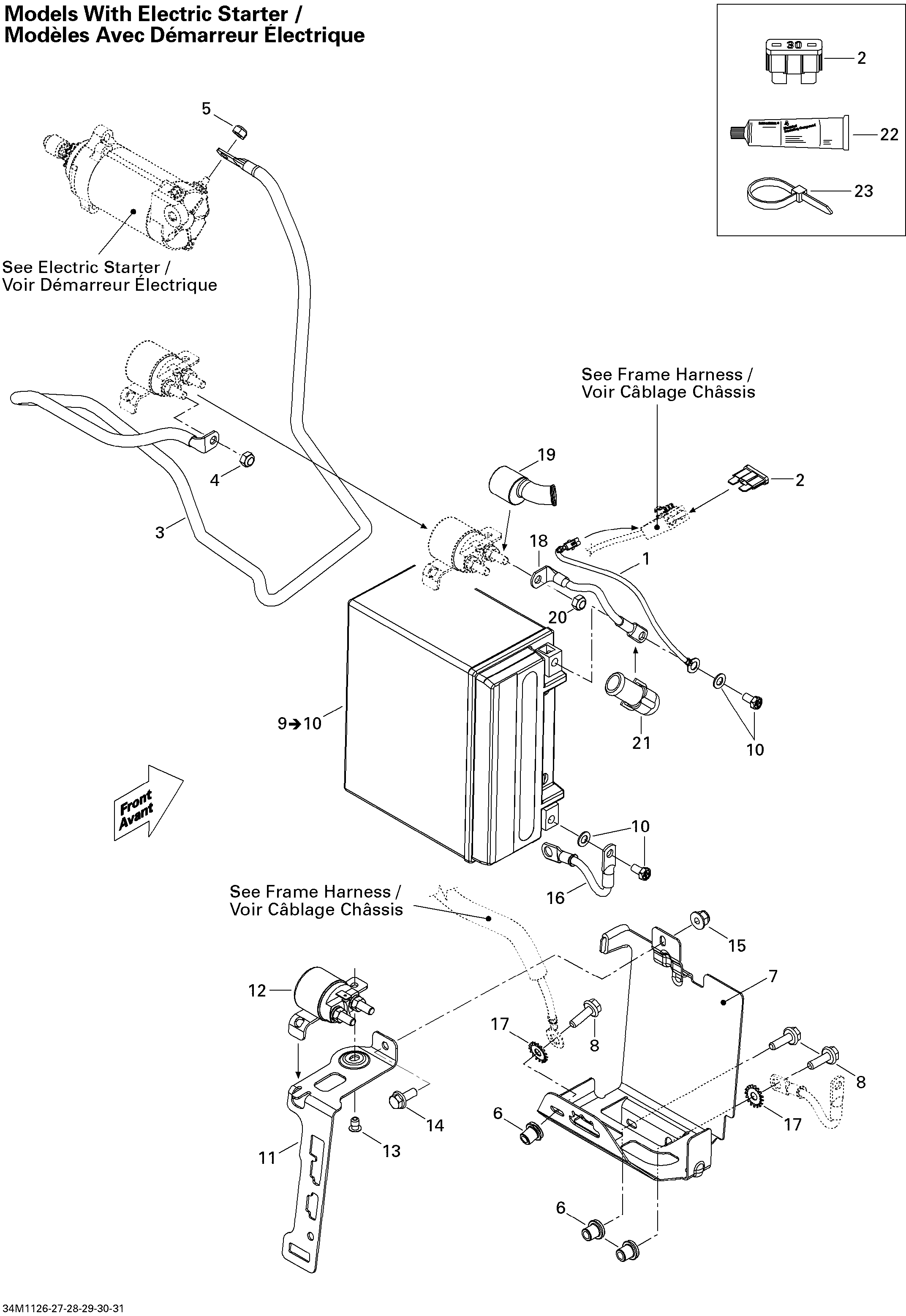

10- Battery And Starter для BRP Ski-Doo MXZ Sport 550F XP-FAN - 2011
-
№АртикулНазвание
-
1515176744 Fuse Battery WireFuse Battery Wire
-
2410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
3515175905 Battery WireBattery Wire
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6415107300 InsertInsert
-
7515176886 Battery Support Ass'yBattery Support Ass'y
-
8207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
9410301203 Battery, 18 Amperes. Includes 9 to 10Battery, 18 Amperes. Includes 9 to 10
-
10295500849 Battery Fastener KitBattery Fastener Kit
-
11515177008 Battery StripBattery Strip
-
12515176501 Starter RelayStarter Relay
-
13390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
14207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16515176358 Ground WireGround Wire
-
17250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
18515176556 Battery WireBattery Wire
-
19515175919 Protector CapProtector Cap
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21710000495 Protector CapProtector Cap
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
23293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
23293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
23293750009 Tie-Rap 173 mmTie-Rap 173 mm
