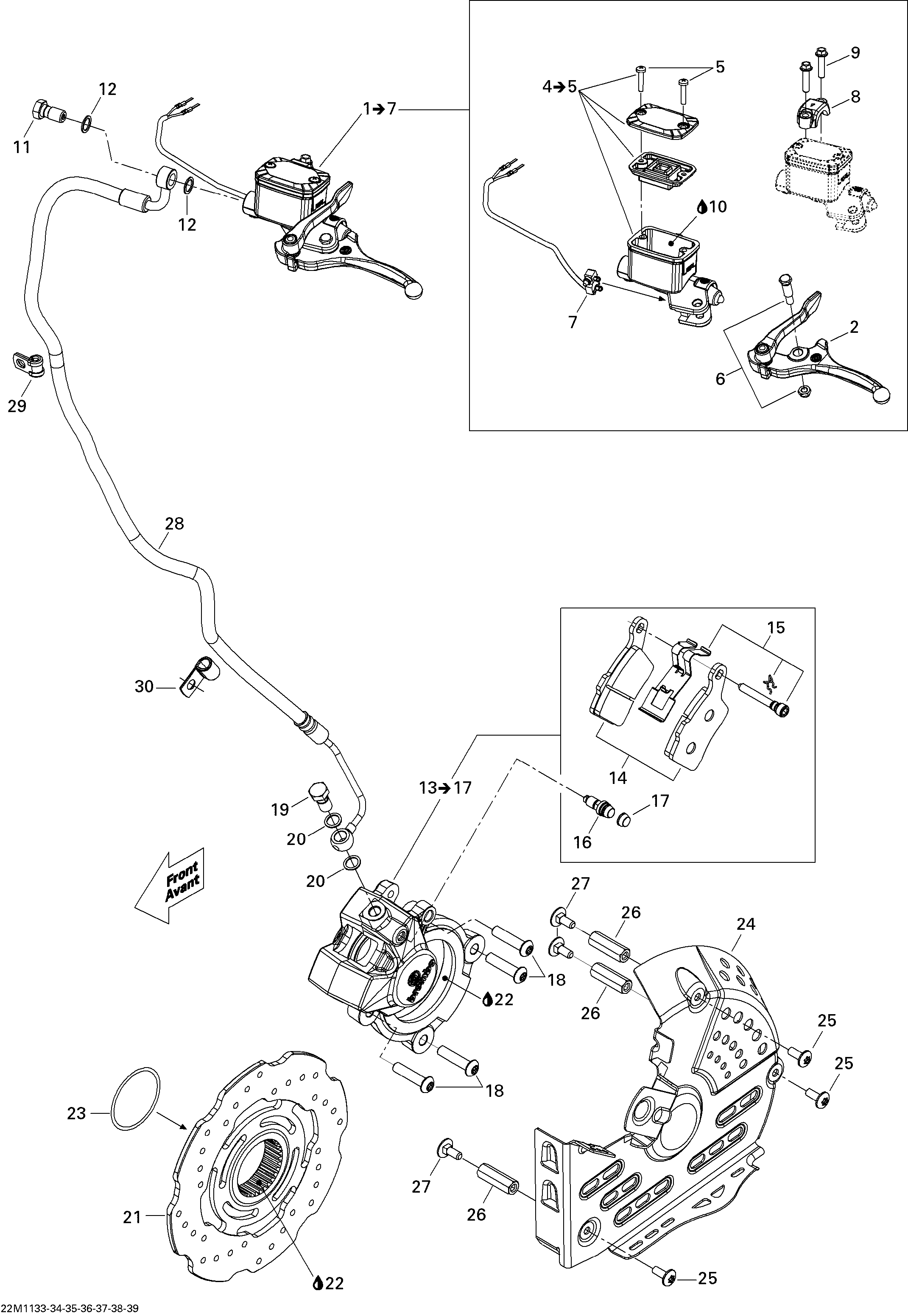

06- Hydraulic Brakes для BRP Ski-Doo MXZ Sport 600ACE - 2011
-
№АртикулНазвание
-
1507032518 Master Cylinder Ass'y. Includes 1 to 7Master Cylinder Ass'y. Includes 1 to 7
-
2507032476 LeverLever
-
4507032478 Reservoir Ass'y. Includes 4 to 5Reservoir Ass'y. Includes 4 to 5
-
5415129356 Screw M4 X 20Screw M4 X 20
-
6415030000 Pin Ass'yPin Ass'y
-
7507032479 MicroswitchMicroswitch
-
8219800081 ClampClamp
-
9250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10293600131 Hydraulic OilHydraulic Oil
-
11414920500 Banjo BoltBanjo Bolt
-
12414920600 WasherWasher
-
13507032498 Brake Caliper Ass'y. Includes 13 to 17Brake Caliper Ass'y. Includes 13 to 17
-
14507032473 Brake Pads KitBrake Pads Kit
-
15507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
16507032475 BleederBleeder
-
17414989700 BootBoot
-
18250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
19414920500 Banjo BoltBanjo Bolt
-
20414920600 WasherWasher
-
21507032487 DiskDisk
-
22293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
23293300134 O-RingO-Ring
-
24507032446 Disk Protector, AluminumDisk Protector, Aluminum
-
25250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
26507032497 Threaded TubeThreaded Tube
-
27207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
28507032522 HoseHose
-
29705600459 ClampClamp
-
30414176000 Open ClampOpen Clamp
