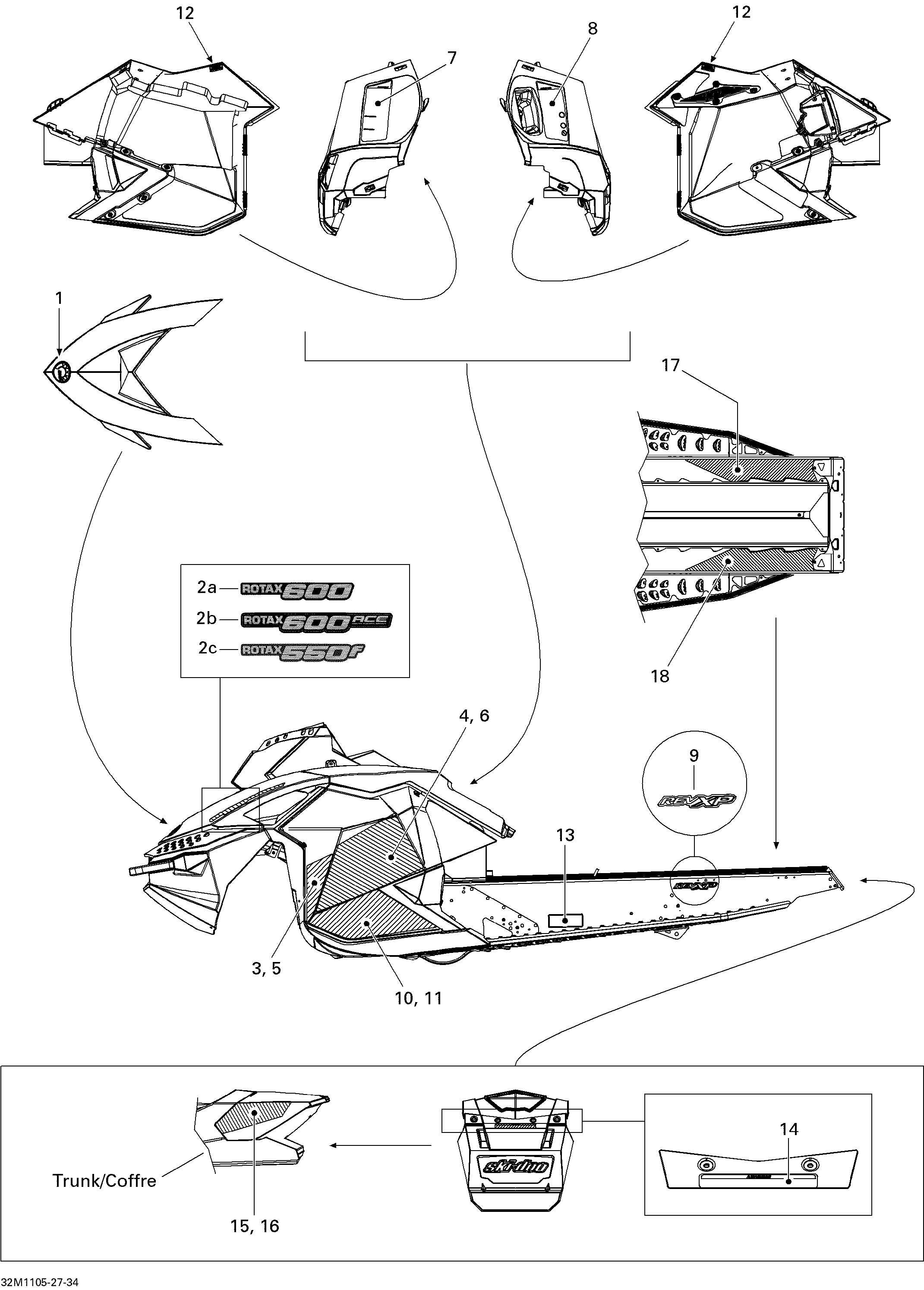

09- Decals для BRP Ski-Doo MXZ Sport 600ACE - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2b516004624 Hood Decal, Rotax 600ACEHood Decal, Rotax 600ACE
-
3516004670 RH Front Side DecalRH Front Side Decal
-
4516004666 RH Side DecalRH Side Decal
-
5516004669 LH Front Side DecalLH Front Side Decal
-
6516004665 LH Side DecalLH Side Decal
-
7516004561 Warning Decal, SecurityWarning Decal, Security
-
8516004589 Warning Decal, SecurityWarning Decal, Security
-
9516003543 Decal, REV XPDecal, REV XP
-
10516004668 RH Lower DecalRH Lower Decal
-
11516004667 LH Lower DecalLH Lower Decal
-
12516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
13516004517 Conformity Decal, BATConformity Decal, BAT
-
14516004440 Warning Decal, TrackWarning Decal, Track
-
15516004672 RH Cover DecalRH Cover Decal
-
16516004671 LH Cover DecalLH Cover Decal
