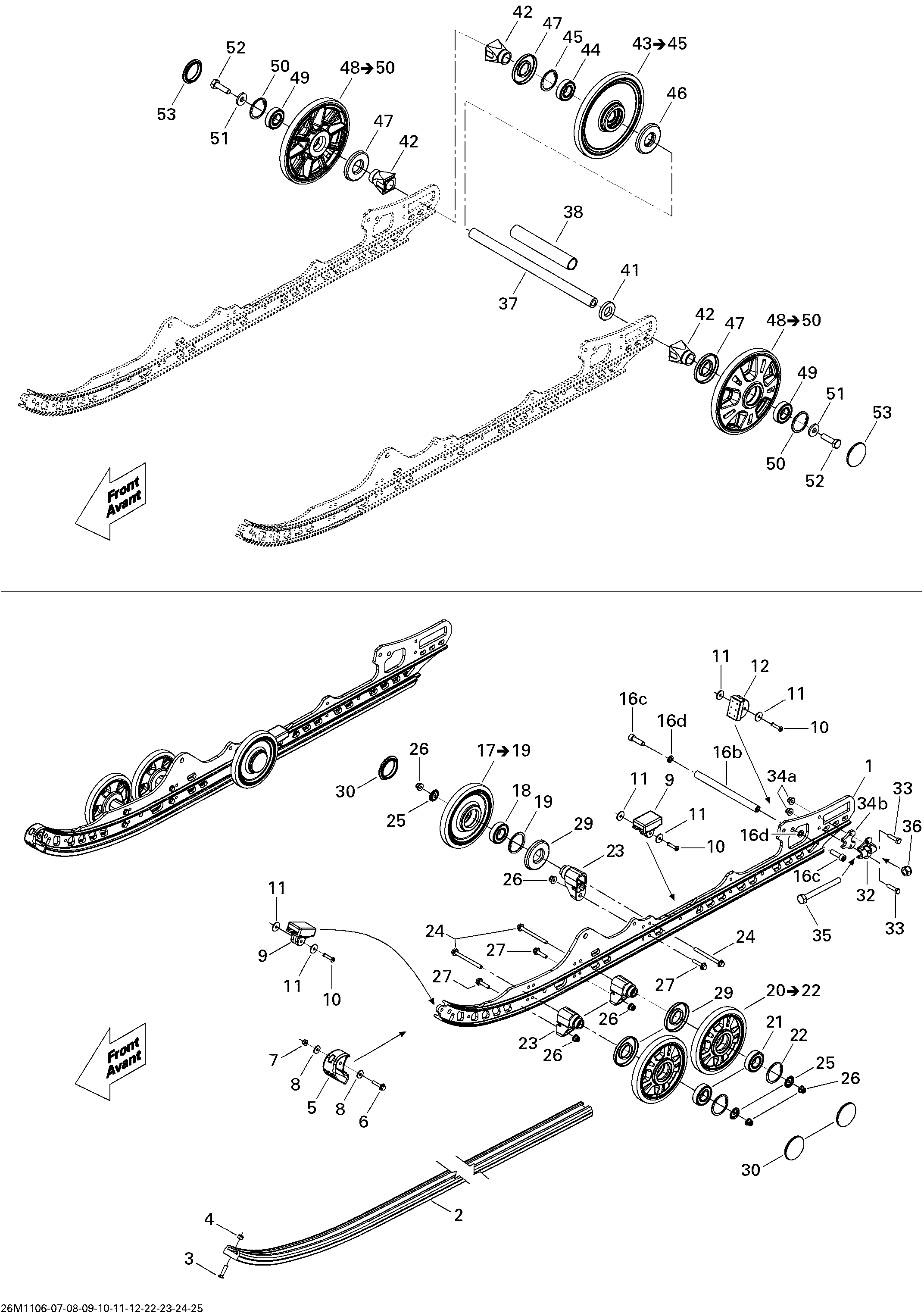

08- Rear Suspension для BRP Ski-Doo Renegade ADRENALINE 800R PTEK - 2011
-
№АртикулНазвание
-
1503192318 Runner 137''Runner 137''
-
2503191306 Black - Slider Shoe 137''Black - Slider Shoe 137''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
16b503191260 Axle StrapAxle Strap
-
16c250000478 Socket Screw M10 X 35Socket Screw M10 X 35
-
16d503192496 WasherWasher
-
17503191316 Wheel 141 Ass'y. Includes 17 to 19Wheel 141 Ass'y. Includes 17 to 19
-
18503190396 Ball BearingBall Bearing
-
19415129371 Retaining RingRetaining Ring
-
20503192441 Wheel 141 mm Ass'y, Red. Includes 20 to 22Wheel 141 mm Ass'y, Red. Includes 20 to 22
-
21503190396 Ball BearingBall Bearing
-
22415129371 Retaining RingRetaining Ring
-
23503192793 Molded SupportMolded Support
-
24250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
25503191820 Wheel Cup M6Wheel Cup M6
-
26250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
27250000476 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
29503190434 Labyrinth SealLabyrinth Seal
-
30570063600 Wheel CapWheel Cap
-
32503192814 TensionerTensioner
-
33250000480 Hex Cap Screw DIN.931Hex Cap Screw DIN.931
-
34a233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34b503190379 Tensioner SpacerTensioner Spacer
-
35250000481 Hex. Screw Cap Full Thread M10 X 100Hex. Screw Cap Full Thread M10 X 100
-
36250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
37503190429 Rear AxleRear Axle
-
38503190430 SpacerSpacer
-
41503190432 WasherWasher
-
42503190428 Rear Wheel SpacerRear Wheel Spacer
-
43503191559 Wheel, 180 mm, Black. Includes 43 to 45Wheel, 180 mm, Black. Includes 43 to 45
-
44503190396 Ball BearingBall Bearing
-
45415129371 Retaining RingRetaining Ring
-
46503190682 Labyrinth SealLabyrinth Seal
-
47503190434 Labyrinth SealLabyrinth Seal
-
48503192424 Wheel 180 mm Ass'y, Red. Includes 48 to 50Wheel 180 mm Ass'y, Red. Includes 48 to 50
-
49503190396 Ball BearingBall Bearing
-
50415129371 Retaining RingRetaining Ring
-
51503190439 WasherWasher
-
52250000019 Hex. Screw With NylonHex. Screw With Nylon
-
53570063600 Wheel CapWheel Cap
