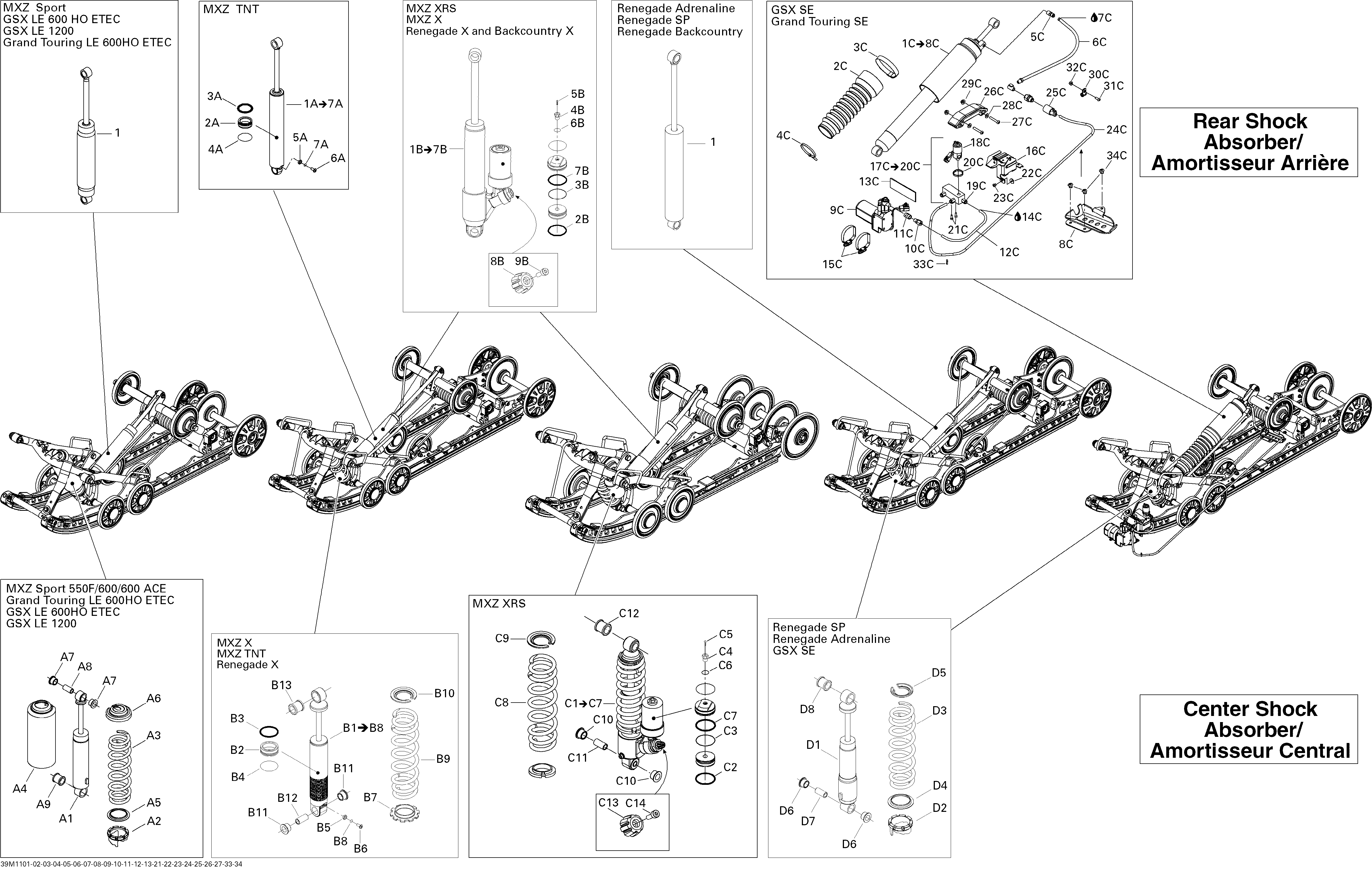

08- Rear Suspension Shocks для BRP Ski-Doo Renegade ADRENALINE 800R PTEK - 2011
-
№АртикулНазвание
-
1503192037 Rear ShockRear Shock
-
D1503192504 Center ShockCenter Shock
-
D2505070150 Adjustment CamAdjustment Cam
-
D3503191879 SpringSpring
-
D4503191872 Spring GuideSpring Guide
-
D5503192029 Spring StopperSpring Stopper
-
D6503189117 CushionCushion
-
D7503189282 BushingBushing
-
D8503189271 CushionCushion
