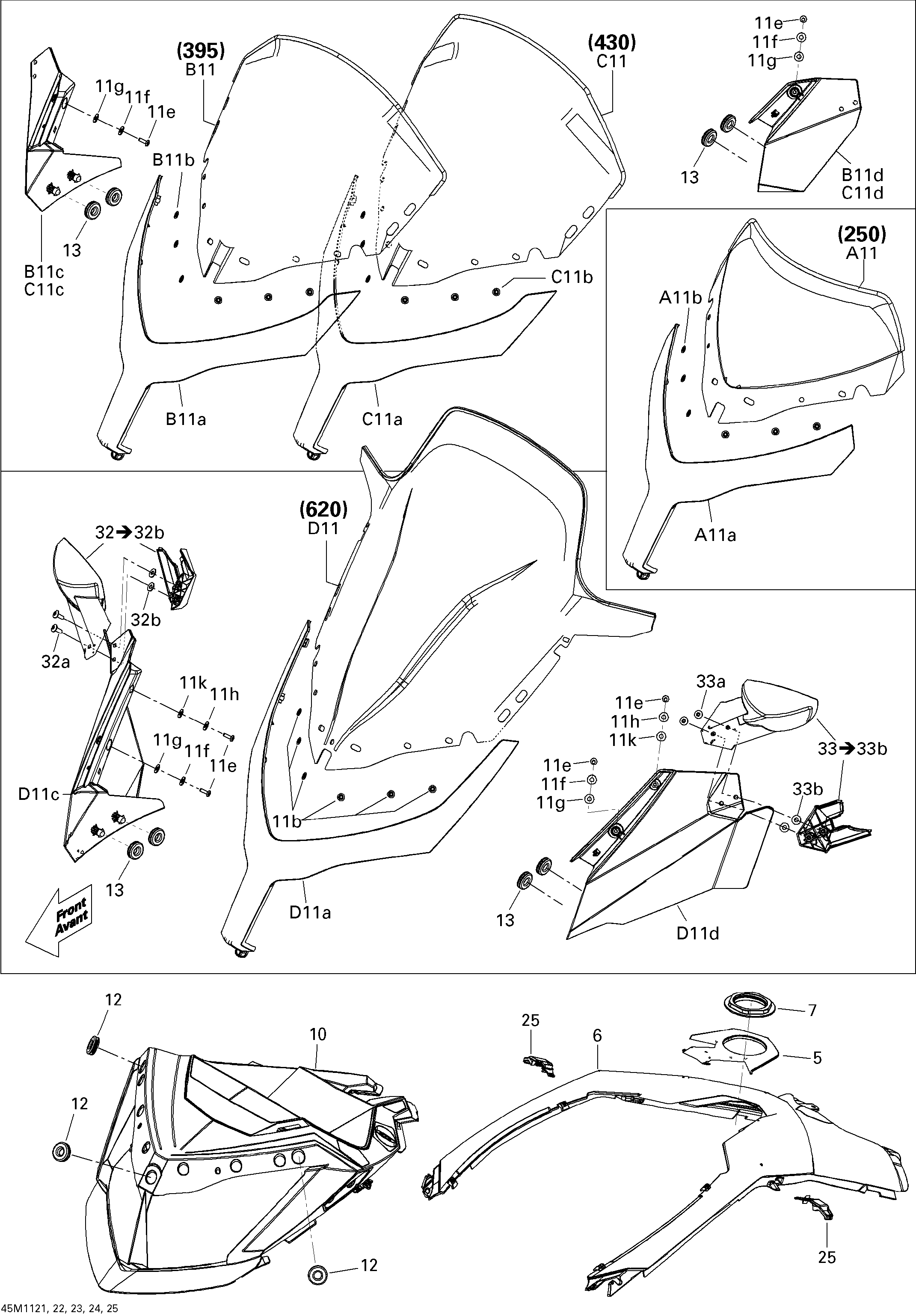

09- Windshield And Console для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2011
-
№АртикулНазвание
-
5517304027 Cap ConsoleCap Console
-
6517303741 Console, Black. XConsole, Black. X
-
6517304593 Console, Roadster RedConsole, Roadster Red
-
7517304518 Console NutConsole Nut
-
10517303742 Indicator Support. XIndicator Support. X
-
10517303972 Indicator Support. ADRIndicator Support. ADR
-
A11517303888 Low Windshield (250). XLow Windshield (250). X
-
A11a517303959 Low Windshield Support. XLow Windshield Support. X
-
A11b732610072 Push NutPush Nut
-
B11517303887 Medium Windshield (395). ADRMedium Windshield (395). ADR
-
B11a517303798 Medium Windshield Support. ADRMedium Windshield Support. ADR
-
B11b732610072 Push NutPush Nut
-
B11c517304024 RH Console Air Deflector. ADRRH Console Air Deflector. ADR
-
B11d517304025 LH Console Air Deflector. ADRLH Console Air Deflector. ADR
-
11e250000146 Truss Head Torx Screw K50 X 16. ADRTruss Head Torx Screw K50 X 16. ADR
-
11f250200025 Washer M5. ADRWasher M5. ADR
-
11g250200024 Rubber Washer 5 mm. ADRRubber Washer 5 mm. ADR
-
12517303756 Grommet. XGrommet. X
-
13517303756 Grommet. ADRGrommet. ADR
-
25517303973 Panel LatchPanel Latch
