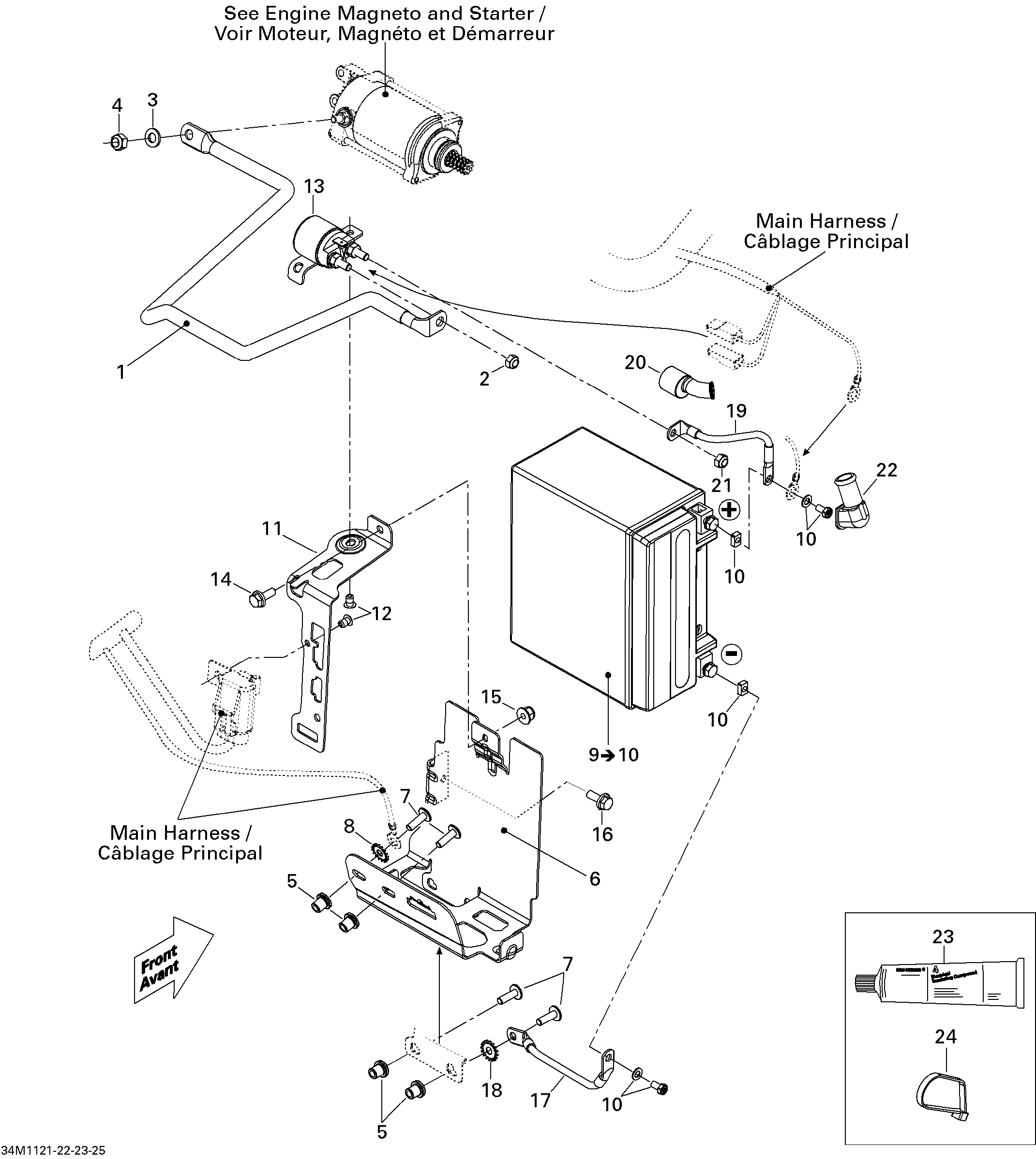

10- Battery And Starter для BRP Ski-Doo Renegade X & Adrenaline 1200 XR - 2011
-
№АртикулНазвание
-
1515176557 Battery WireBattery Wire
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5415107300 InsertInsert
-
6515176970 Battery SupportBattery Support
-
7250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
8250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
9296000295 Battery 18 Amp. Includes 9 to 10Battery 18 Amp. Includes 9 to 10
-
10295500849 Battery Fastener KitBattery Fastener Kit
-
11515177008 Battery StripBattery Strip
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13515176501 Starter RelayStarter Relay
-
14207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
17515175749 Ground WireGround Wire
-
18250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
19515176556 Battery WireBattery Wire
-
20515175919 Protector CapProtector Cap
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
22710000495 Protector CapProtector Cap
-
23293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
24293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24293750027 Tie-Rap 206 mmTie-Rap 206 mm
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
