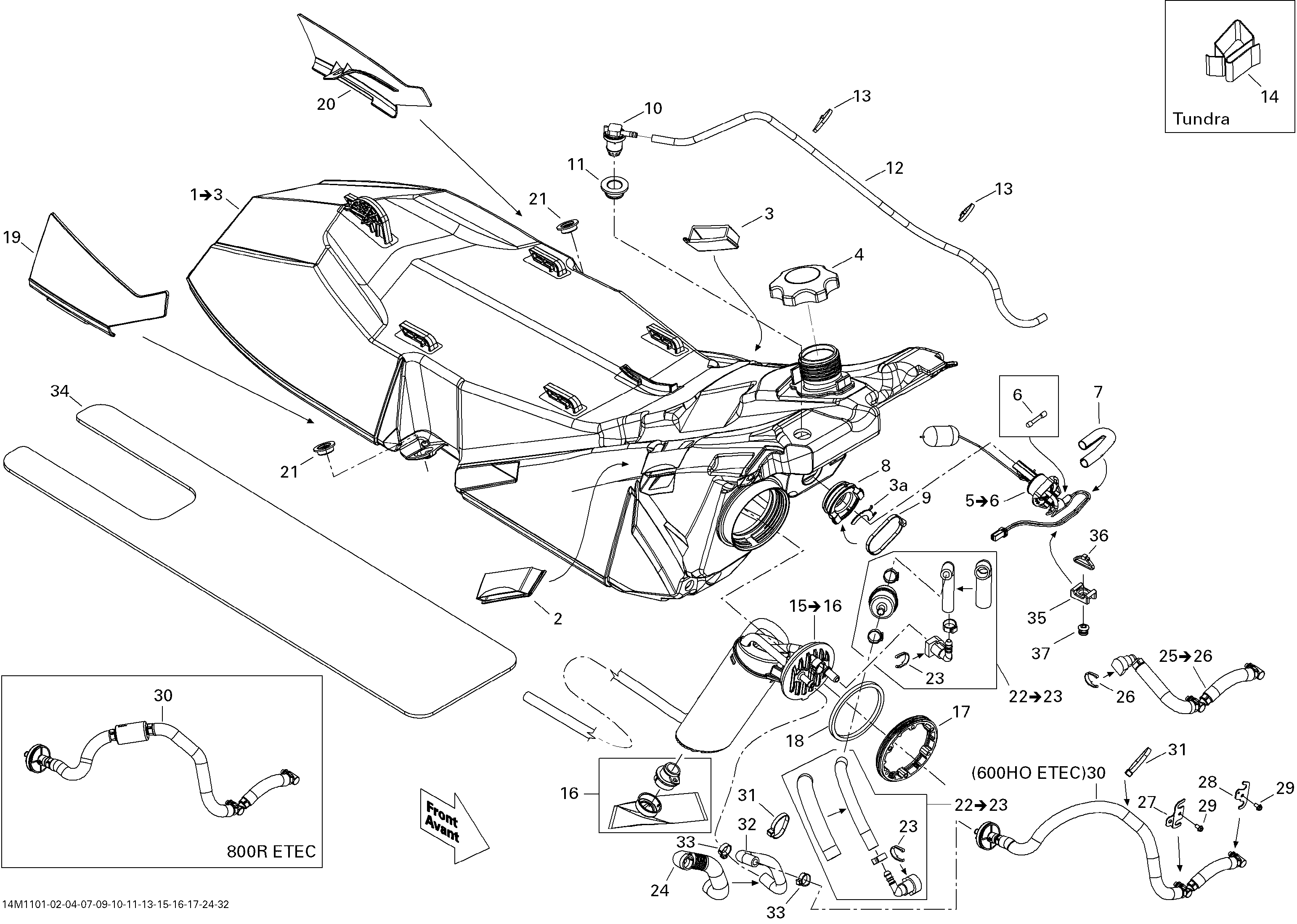

02- Fuel System 600HO ETEC для BRP Ski-Doo Renegade X 600HO ETEC - 2011
-
№АртикулНазвание
-
1513033578 Fuel Tank Ass'y. Includes 1 to 3Fuel Tank Ass'y. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
3a513033649 SpacerSpacer
-
4513033024 Fuel CapFuel Cap
-
5513033624 Fuel Level Sensor Ass'y. Includes 5 to 6Fuel Level Sensor Ass'y. Includes 5 to 6
-
6710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
7415079900 Tubing 10 mmTubing 10 mm
-
8513033606 GrommetGrommet
-
9293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
10513033188 Check ValveCheck Valve
-
11513033596 GrommetGrommet
-
12415080200 Hose, PolyurethaneHose, Polyurethane
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15513033579 Fuel Pump. Includes 15 to 16Fuel Pump. Includes 15 to 16
-
16415129451 Fuel FilterFuel Filter
-
17513033180 RingRing
-
18513033334 GasketGasket
-
19513033418 RH CapRH Cap
-
20513033419 LH CapLH Cap
-
21513033326 Shoulder BushingShoulder Bushing
-
22513033560 Hose Ass'y. Includes 22 to 23Hose Ass'y. Includes 22 to 23
-
23513033135 Locking ClipLocking Clip
-
24415080000 Tubing 16 mmTubing 16 mm
-
25513033594 Hose Ass'y. Includes 25 to 26Hose Ass'y. Includes 25 to 26
-
26513033135 Locking ClipLocking Clip
-
27513033542 BracketBracket
-
28513033593 BracketBracket
-
29207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
30513033595 Hose Ass'y. 600HO ETECHose Ass'y. 600HO ETEC
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
32513033544 Formed HoseFormed Hose
-
33293650047 Crimp ClampCrimp Clamp
-
34513033588 Insulating FoamInsulating Foam
-
35515176795 ClipClip
-
36293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
37390402000 Pop Rivet 3/16''Pop Rivet 3/16''
