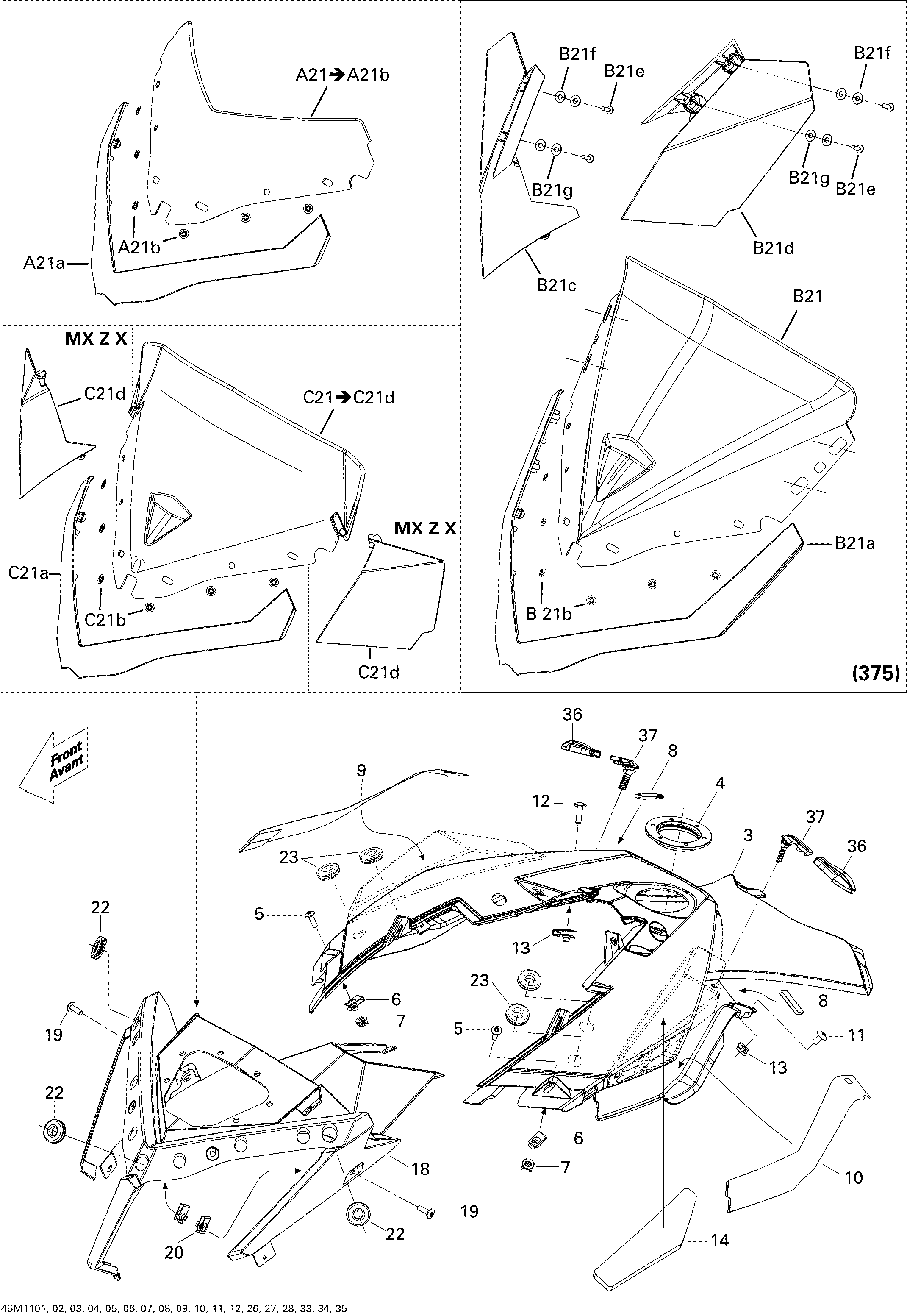

09- Windshield And Console 600HO ETEC для BRP Ski-Doo Renegade X 600HO ETEC - 2011
-
№АртикулНазвание
-
3517303924 Deep Black Console. 600HOEDeep Black Console. 600HOE
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0. 600HOEPanel Nut, M6 X 1.0. 600HOE
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
13250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
18517304575 Gauge SupportGauge Support
-
19250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
C21517304390 Windshield Ass'yWindshield Ass'y
-
C21a517303757 Windshield SupportWindshield Support
-
C21b732610072 Push NutPush Nut
-
22517303756 GrommetGrommet
-
23517303756 GrommetGrommet
-
36517304435 End Piece Latch, Bright White. White Bottom PanEnd Piece Latch, Bright White. White Bottom Pan
-
36860200239 Black Latch Kit. Black Bottom PanBlack Latch Kit. Black Bottom Pan
-
37517303981 Panel LatchPanel Latch
