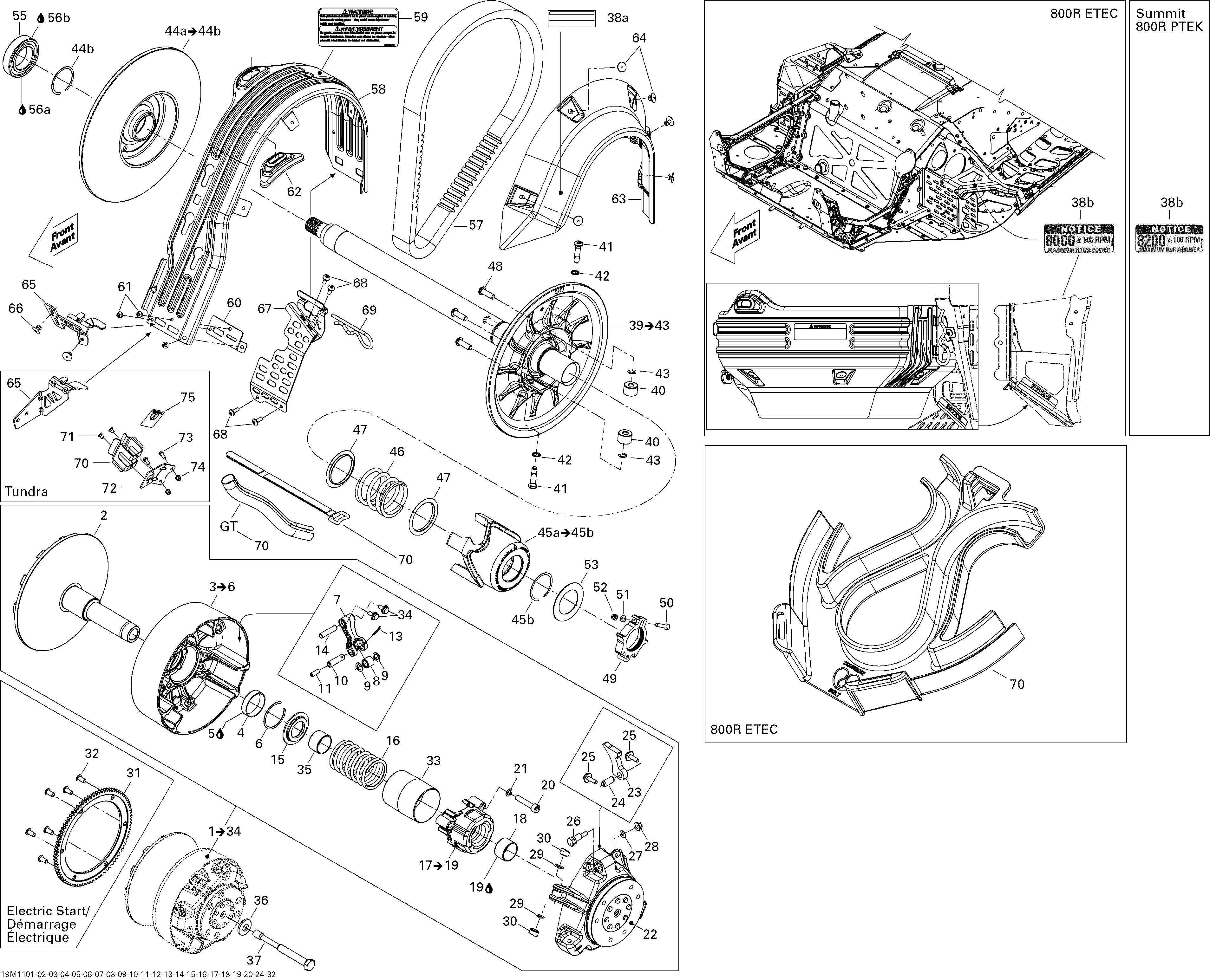

05- Pulley System 800R ETEC для BRP Ski-Doo Renegade X 800R ETEC - 2011

№

Артикул

Название
2

417223232 Fixed Flange Ass'y. 800R ETEC

Fixed Flange Ass'y. 800R ETEC

152 600 ₽
3

417223444 Sliding Flange Ass'y. Includes 3 to 6, 800R ETEC

Sliding Flange Ass'y. Includes 3 to 6, 800R ETEC

148 750 ₽
4

417223086 Bushing. 800R ETEC

Bushing. 800R ETEC

12 670 ₽
5

293800118 Loctite 680, 50 ml

Loctite 680, 50 ml

0 ₽
6

293370037 Circlip

Circlip

680 ₽
6

293370071 Circlip. 800R ETEC

Circlip. 800R ETEC

2 150 ₽
7

417222671 Lever

Lever

7 360 ₽
8

417222947 Roller

Roller

10 660 ₽
9

417004302 Stopper Washer

Stopper Washer

3 010 ₽
10

417222594 Pin

Pin

7 770 ₽
13

732958001 Cotter Pin

Cotter Pin

80 ₽
14

417223164 Lever Axle

Lever Axle

690 ₽
15

417222312 Spring Seat

Spring Seat

2 970 ₽
16

414817700 Spring, Blue/green

Spring, Blue/green

16 770 ₽
17

417222759 Spring Cover Ass'y. Includes 17 to 19

Spring Cover Ass'y. Includes 17 to 19

13 110 ₽
18

417009204 Bushing

Bushing

6 060 ₽
19

413703100 Loctite 609, 10 ml

Loctite 609, 10 ml

2 760 ₽
20

205084044 Socket Head Screw M8 X 40

Socket Head Screw M8 X 40

1 050 ₽
21

250200009 Lock Washer 8 mm

Lock Washer 8 mm

890 ₽
22

417223441 Governor Cup Ass'y

Governor Cup Ass'y

40 480 ₽
22

417223425 Governor Cup Ass'y. 800R ETEC

Governor Cup Ass'y. 800R ETEC

40 020 ₽
23

417222546 Ramp 414

Ramp 414

3 180 ₽
24

250400050 Spring Pin M10 X 22

Spring Pin M10 X 22

1 120 ₽
25

250000418 Flanged Hex. Screw M6 X 18, Scotch Grip

Flanged Hex. Screw M6 X 18, Scotch Grip

1 540 ₽
26

417223460 Calibration Screw

Calibration Screw

1 240 ₽
27

417005600 Washer

Washer

1 540 ₽
28

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
29

732401030 O-Ring

O-Ring

330 ₽
30

417223271 Slider Shoe. 800R ETEC

Slider Shoe. 800R ETEC

3 490 ₽
31

417222952 Ring Gear. 800R ETEC

Ring Gear. 800R ETEC

0 ₽
32

250000243 Torx Screw M8 X 16, Scotch Grip

Torx Screw M8 X 16, Scotch Grip

290 ₽
33

417009205 Guard

Guard

5 880 ₽
34

250000412 Flanged Hex. Screw M6 X 12, Scotch Grip

Flanged Hex. Screw M6 X 12, Scotch Grip

1 540 ₽
35

417223471 Bushing. 800R ETEC

Bushing. 800R ETEC

1 550 ₽
36

250200006 Spring Washer 14 mm

Spring Washer 14 mm

2 570 ₽
37

417300408 TRA 7 Bolt (M14 X 162.5 mm). 800R ETEC (Original)

TRA 7 Bolt (M14 X 162.5 mm). 800R ETEC (Original)

3 860 ₽
37

417300409 TRA 7 Bolt (M14 X 153.5 mm). 800R ETEC (New Crank Shaft)

TRA 7 Bolt (M14 X 153.5 mm). 800R ETEC (New Crank Shaft)

15 160 ₽
38a

516004542 English Decal

English Decal

750 ₽
38b

516004656 RPM Decal, (English Version). 800R ETEC

RPM Decal, (English Version). 800R ETEC

770 ₽
39

417127174 Fixe Flange Ass'y. Includes 39 to 43

Fixe Flange Ass'y. Includes 39 to 43

0 ₽
40

417127016 Roller

Roller

17 430 ₽
41

417127252 Stud. 800R ETEC

Stud. 800R ETEC

0 ₽
42

250200009 Lock Washer 8 mm

Lock Washer 8 mm

890 ₽
43

414753500 Circlip

Circlip

260 ₽
44a

417126955 Sliding Flange Ass'y. Includes 44a to 44b

Sliding Flange Ass'y. Includes 44a to 44b

31 280 ₽
44b

293370049 Circlip

Circlip

1 890 ₽
45a

417127083 Cam Ass'y. Includes 45a to 45b

Cam Ass'y. Includes 45a to 45b

11 670 ₽
45a

417126973 Cam Ass'y. Includes 45a to 45b, 800R ETEC

Cam Ass'y. Includes 45a to 45b, 800R ETEC

13 690 ₽
45b

293370049 Circlip

Circlip

1 890 ₽
46

417127137 Spring

Spring

14 250 ₽
47

417127116 Swivel Abutment

Swivel Abutment

3 000 ₽
48

250000283 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip

600 ₽
49

417127248 Adjustment Pulley Ass'y

Adjustment Pulley Ass'y

0 ₽
50

205052544 Socket Screw M5 X 25

Socket Screw M5 X 25

600 ₽
51

234051410 Flat Washer M5

Flat Washer M5

190 ₽
52

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5

320 ₽
53

417127155 Washer

Washer

790 ₽
55

504152574 Ball Bearing

Ball Bearing

2 340 ₽
56a

413703100 Loctite 609, 10 ml

Loctite 609, 10 ml

2 760 ₽
56b

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz

3 130 ₽
57

417300391 Belt

Belt

19 570 ₽
58

417300357 Belt Guard

Belt Guard

29 090 ₽
59

516004595 Security Label Decal English

Security Label Decal English

10 ₽
60

417300380 Reinforcement

Reinforcement

1 790 ₽
61

390909200 Avex Rivet

Avex Rivet

170 ₽
62

417300381 Guide

Guide

3 010 ₽
63

417300356 Side Protector

Side Protector

3 380 ₽
64

293150103 Pop Rivet 3/16''

Pop Rivet 3/16''

210 ₽
65

417300360 Front Belt Guard Bracket

Front Belt Guard Bracket

1 070 ₽
66

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''

240 ₽
67

417300375 Belt Guard Bracket

Belt Guard Bracket

0 ₽
68

250000145 Torx Screw M5 X 14

Torx Screw M5 X 14

140 ₽
69

114045200 Hair Pin

Hair Pin

3 680 ₽
70

508000702 Belt Plate. 800R ETEC

Belt Plate. 800R ETEC

1 280 ₽
