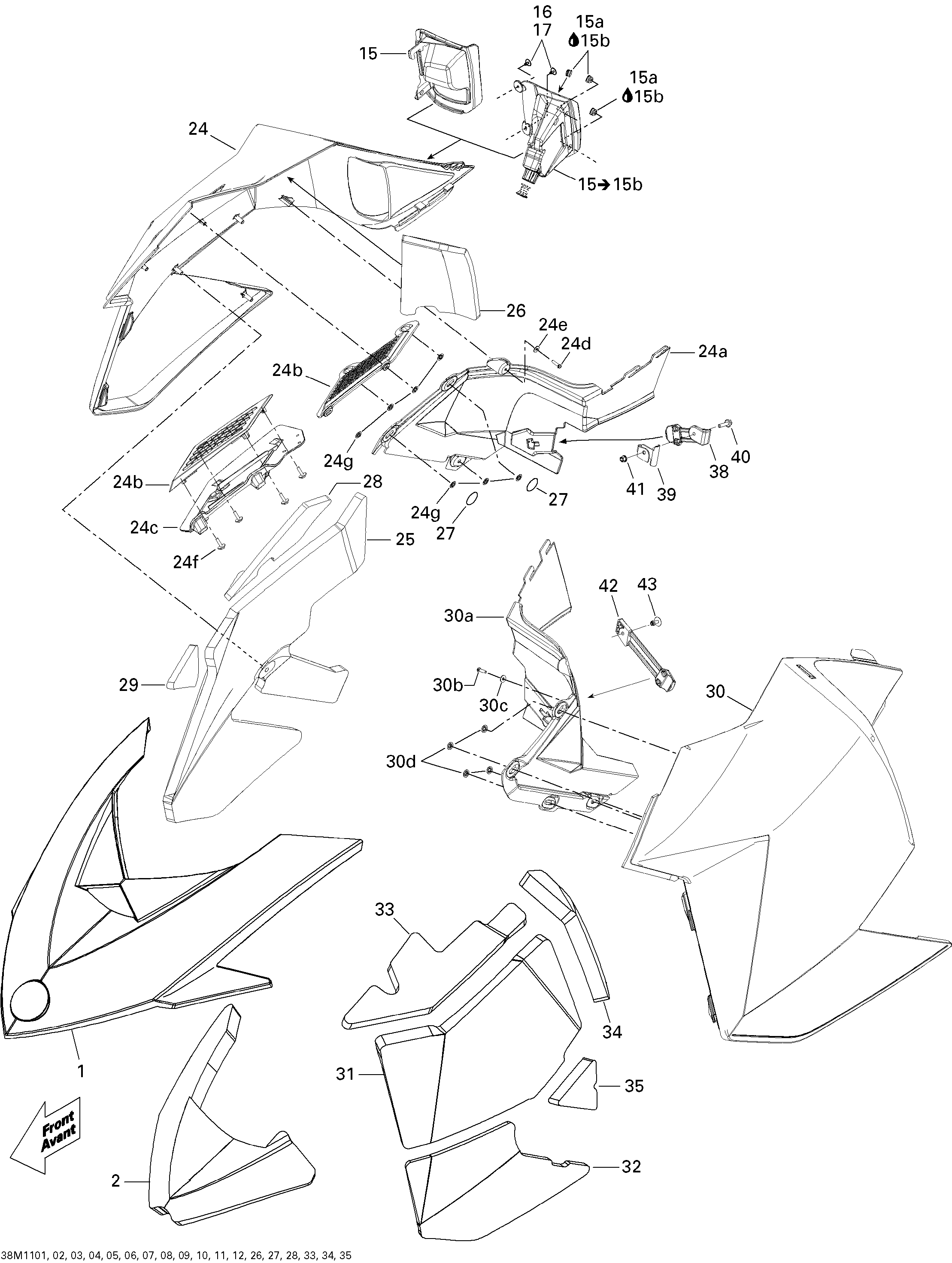

09- Hood 800R ETEC для BRP Ski-Doo Renegade X 800R ETEC - 2011
-
№АртикулНазвание
-
1517304530 Hood, Deep Black. Black HoodHood, Deep Black. Black Hood
-
1517304530 Hood, Deep Black. Black HoodHood, Deep Black. Black Hood
-
2517304881 Hood FoamHood Foam
-
2517304881 Hood FoamHood Foam
-
15517304322 RH Console. Manual StarterRH Console. Manual Starter
-
15517304322 RH Console. Manual StarterRH Console. Manual Starter
-
15a275500241 Cap, Black. Manual StarterCap, Black. Manual Starter
-
15a275500241 Cap, Black. Manual StarterCap, Black. Manual Starter
-
15b413408300 Loctite, Black Max, 3 ml. Manual StarterLoctite, Black Max, 3 ml. Manual Starter
-
15b413408300 Loctite, Black Max, 3 ml. Manual StarterLoctite, Black Max, 3 ml. Manual Starter
-
16250000113 Screw M4 X 16, Type K-40. Manual StarterScrew M4 X 16, Type K-40. Manual Starter
-
16250000113 Screw M4 X 16, Type K-40. Manual StarterScrew M4 X 16, Type K-40. Manual Starter
-
24517304029 RH Panel, Deep Black. Manual StarterRH Panel, Deep Black. Manual Starter
-
24517304029 RH Panel, Deep Black. Manual StarterRH Panel, Deep Black. Manual Starter
-
24517304210 RH Panel, Deep Black. Electric StarterRH Panel, Deep Black. Electric Starter
-
24517304210 RH Panel, Deep Black. Electric StarterRH Panel, Deep Black. Electric Starter
-
24517304419 RH Panel, Bright White. Electric StarterRH Panel, Bright White. Electric Starter
-
24517304419 RH Panel, Bright White. Electric StarterRH Panel, Bright White. Electric Starter
-
24517304422 RH Panel, Bright White. Manual StarterRH Panel, Bright White. Manual Starter
-
24517304422 RH Panel, Bright White. Manual StarterRH Panel, Bright White. Manual Starter
-
24a517303671 RH Moulding Panel, Deep BlackRH Moulding Panel, Deep Black
-
24a517303671 RH Moulding Panel, Deep BlackRH Moulding Panel, Deep Black
-
24a517304420 RH Moulding Panel, Viper RedRH Moulding Panel, Viper Red
-
24a517304420 RH Moulding Panel, Viper RedRH Moulding Panel, Viper Red
-
24b517304763 External Grill. 800REExternal Grill. 800RE
-
24b517303622 Grill. 600HOEGrill. 600HOE
-
24b517304763 External Grill. 800REExternal Grill. 800RE
-
24c517304764 Internal Grill. 800REInternal Grill. 800RE
-
24c517304764 Internal Grill. 800REInternal Grill. 800RE
-
24d241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
24d241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
24e234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
24e234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
24f250000113 Screw M4 X 16, Type K-40. 800REScrew M4 X 16, Type K-40. 800RE
-
24f250000113 Screw M4 X 16, Type K-40. 800REScrew M4 X 16, Type K-40. 800RE
-
24g732610072 Push NutPush Nut
-
24g732610072 Push NutPush Nut
-
25517304883 RH Center FoamRH Center Foam
-
25517304883 RH Center FoamRH Center Foam
-
26517304884 RH Panel Rear FoamRH Panel Rear Foam
-
26517304884 RH Panel Rear FoamRH Panel Rear Foam
-
27518325560 Adhesive PatchAdhesive Patch
-
27518325560 Adhesive PatchAdhesive Patch
-
30517304030 LH Panel, Deep Black. Black Bottom PanLH Panel, Deep Black. Black Bottom Pan
-
30517304030 LH Panel, Deep Black. Black Bottom PanLH Panel, Deep Black. Black Bottom Pan
-
30517304426 LH Panel, Bright White. White Bottom PanLH Panel, Bright White. White Bottom Pan
-
30517304426 LH Panel, Bright White. White Bottom PanLH Panel, Bright White. White Bottom Pan
-
30a517303673 LH Moulding Panel, Deep Black. Black Bottom PanLH Moulding Panel, Deep Black. Black Bottom Pan
-
30a517303673 LH Moulding Panel, Deep Black. Black Bottom PanLH Moulding Panel, Deep Black. Black Bottom Pan
-
30a517304427 LH Moulding Panel. White Bottom PanLH Moulding Panel. White Bottom Pan
-
30a517304427 LH Moulding Panel. White Bottom PanLH Moulding Panel. White Bottom Pan
-
30b241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
30b241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
30c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
30c234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
30d732610072 Push NutPush Nut
-
30d732610072 Push NutPush Nut
-
31517304887 LH Panel Center FoamLH Panel Center Foam
-
31517304887 LH Panel Center FoamLH Panel Center Foam
-
32517304888 LH Panel Lower FoamLH Panel Lower Foam
-
32517304888 LH Panel Lower FoamLH Panel Lower Foam
-
33517304889 LH Panel Upper FoamLH Panel Upper Foam
-
33517304889 LH Panel Upper FoamLH Panel Upper Foam
-
34517304890 LH Panel Rear FoamLH Panel Rear Foam
-
34517304890 LH Panel Rear FoamLH Panel Rear Foam
-
35517304891 FoamFoam
-
35517304891 FoamFoam
-
38517303612 Panel LatchPanel Latch
-
38517303612 Panel LatchPanel Latch
-
39517304221 Latch SupportLatch Support
-
39517304221 Latch SupportLatch Support
-
40207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
40207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
41233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
41233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
42517303808 Panel LatchPanel Latch
-
42517303808 Panel LatchPanel Latch
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
