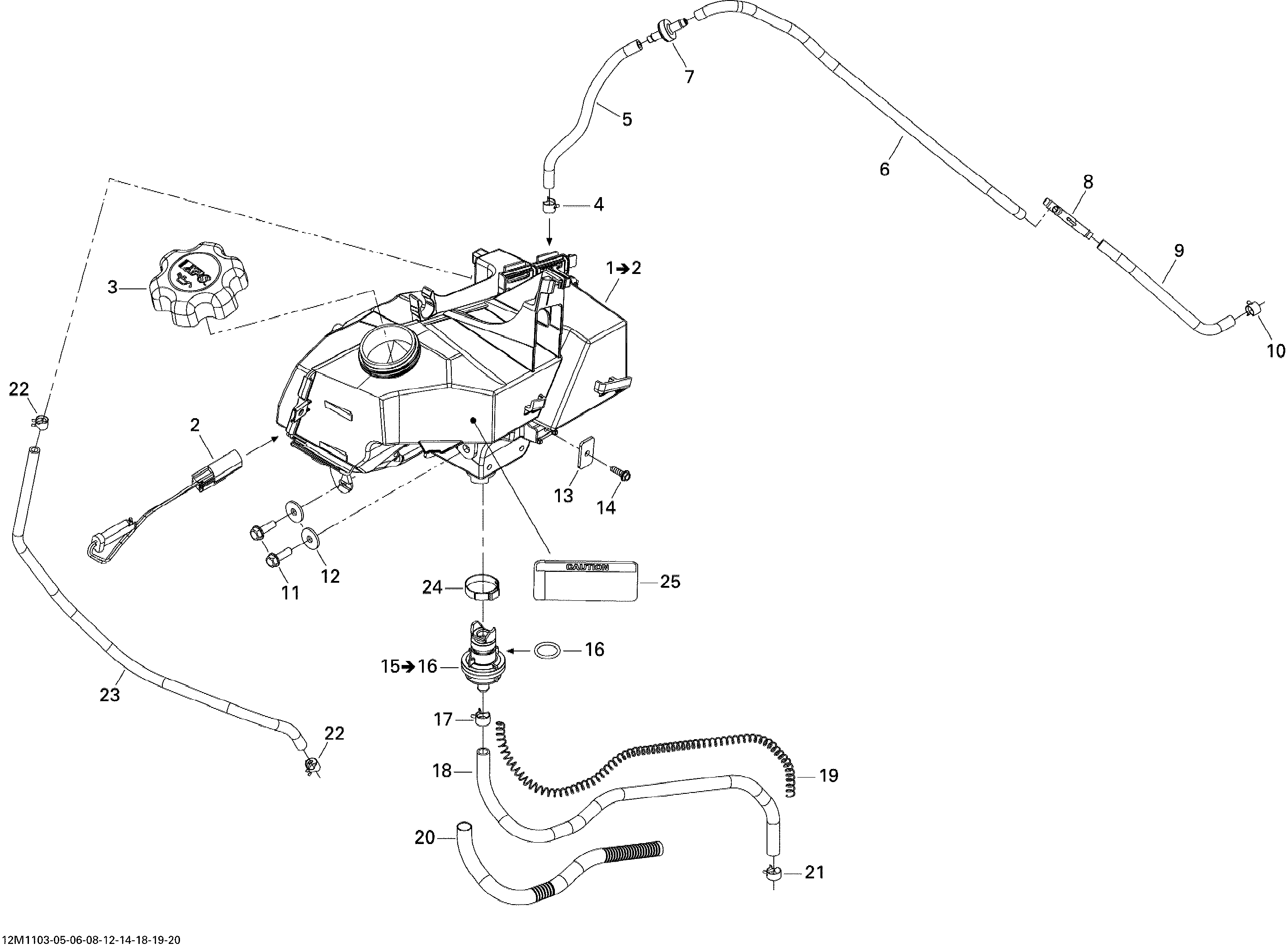

02- Oil System для BRP Ski-Doo Summit SPORT 600 - 2011
-
№АртикулНазвание
-
1519000257 Oil Tank. Includes 1 to 2Oil Tank. Includes 1 to 2
-
2515176508 Oil Level SensorOil Level Sensor
-
3519000194 CapCap
-
4414554800 Spring ClampSpring Clamp
-
5415080200 Hose, PolyurethaneHose, Polyurethane
-
6415080200 Hose, PolyurethaneHose, Polyurethane
-
7275500398 Check ValveCheck Valve
-
8293710059 Y-FittingY-Fitting
-
9415080200 Hose, PolyurethaneHose, Polyurethane
-
10414554800 Spring ClampSpring Clamp
-
11250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
12224061201 Flat WasherFlat Washer
-
13519000179 BracketBracket
-
14241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
15519000242 Oil Filter. Includes 15 to 16Oil Filter. Includes 15 to 16
-
16519000241 O-RingO-Ring
-
17414415200 Universal Spring ClampUniversal Spring Clamp
-
18415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
19519000196 SpringSpring
-
20415079900 Tubing 10 mmTubing 10 mm
-
21414420700 Spring ClipSpring Clip
-
22414554800 Spring ClampSpring Clamp
-
23415080200 Hose, PolyurethaneHose, Polyurethane
-
24293650099 Oetiker Gear ClampOetiker Gear Clamp
-
25516004719 Notice Decal, OilNotice Decal, Oil
