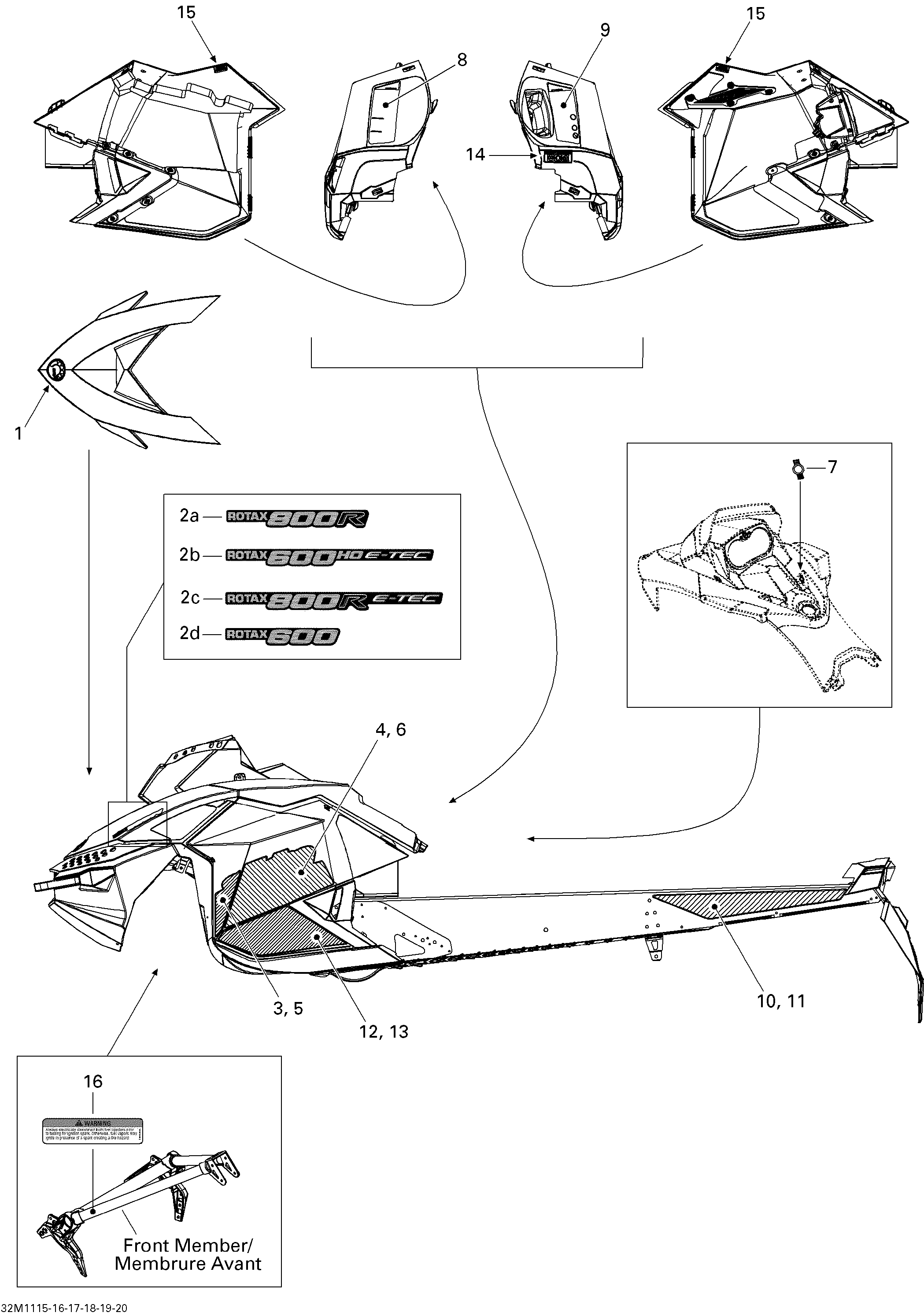

09- Decals для BRP Ski-Doo Summit SPORT 600 - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2d516004386 Hood Decal, Rotax 600Hood Decal, Rotax 600
-
3516004664 RH Front Side DecalRH Front Side Decal
-
4516004660 RH Side DecalRH Side Decal
-
5516004663 LH Front Side DecalLH Front Side Decal
-
6516004659 LH Side DecalLH Side Decal
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004589 Warning Decal, SecurityWarning Decal, Security
-
10516003688 RH Frame Decal, REV XP 146''RH Frame Decal, REV XP 146''
-
11516003687 LH Frame Decal, REV XP 146''LH Frame Decal, REV XP 146''
-
12516004662 RH Lower DecalRH Lower Decal
-
13516004661 LH Lower DecalLH Lower Decal
-
15516004566 Warning Decal, Hot PartsWarning Decal, Hot Parts
