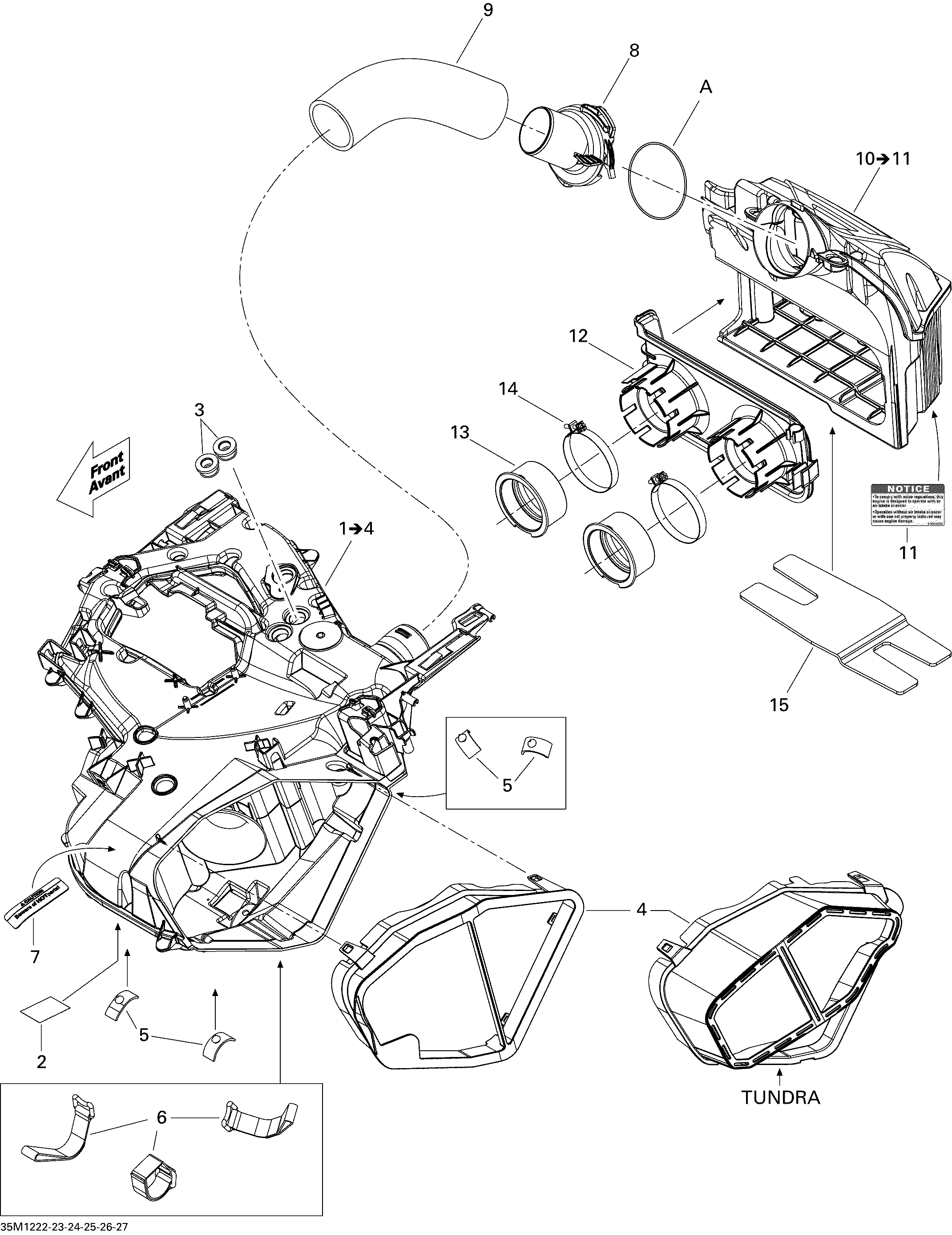

02- Air Intake System для BRP Ski-Doo Expedition Sport 550F XP-FAN - 2012
-
№АртикулНазвание
-
1508000712 Secondary Chamber Ass'y. Includes 1 to 4Secondary Chamber Ass'y. Includes 1 to 4
-
2509000688 Reflective SheetReflective Sheet
-
3508000574 GrommetGrommet
-
4508000568 Air FilterAir Filter
-
5508000537 StopperStopper
-
6508000532 Strip VelcroStrip Velcro
-
7516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
8508000562 LinkLink
-
9508000406 TubeTube
-
10508000680 Primary Chamber Ass'y. Includes 10 to 11Primary Chamber Ass'y. Includes 10 to 11
-
11516004572 Decal, Air IntakeDecal, Air Intake
-
12508000564 Adapter PlateAdapter Plate
-
13508000594 Air Intake AdapterAir Intake Adapter
-
14508000369 Gemi ClampGemi Clamp
-
15508000674 Insulated FoamInsulated Foam
-
A293300115 O-RingO-Ring
