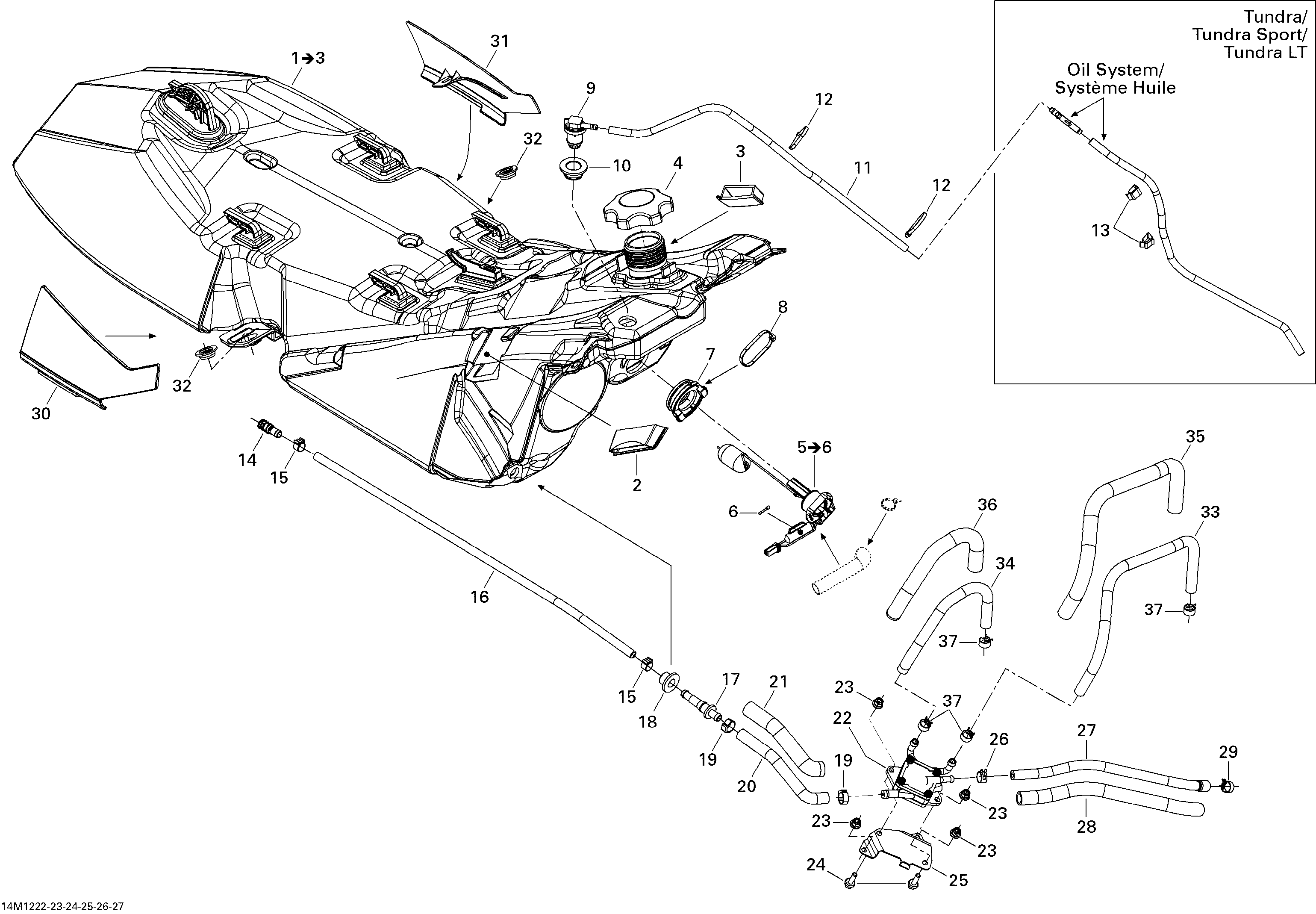

02- Fuel System для BRP Ski-Doo Expedition Sport 550F XP-FAN - 2012
-
№АртикулНазвание
-
1513033574 Fuel Tank Ass'y. Includes 1 to 3Fuel Tank Ass'y. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033025 Fuel Tank CapFuel Tank Cap
-
5513033642 Fuel Level Sensor Ass'y. Includes 5 to 6Fuel Level Sensor Ass'y. Includes 5 to 6
-
6710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
7513033606 GrommetGrommet
-
8293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9513033188 Check ValveCheck Valve
-
10513033596 GrommetGrommet
-
11415080200 Hose, PolyurethaneHose, Polyurethane
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14414872100 Fuel FilterFuel Filter
-
15513033010 Norma Spring ClampNorma Spring Clamp
-
16513033332 HoseHose
-
17414872700 Male ConnectorMale Connector
-
18513033435 GrommetGrommet
-
19293650053 Crimp ClampCrimp Clamp
-
20513033499 Formed HoseFormed Hose
-
21415080000 Tubing 16 mmTubing 16 mm
-
22403901813 Fuel PumpFuel Pump
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25513033543 Pump BracketPump Bracket
-
26414415200 Universal Spring ClampUniversal Spring Clamp
-
27513033553 Formed HoseFormed Hose
-
28415080000 Tubing 16 mmTubing 16 mm
-
29513033029 Universal Spring ClampUniversal Spring Clamp
-
30513033418 RH CapRH Cap
-
31513033419 LH CapLH Cap
-
32513033326 Shoulder BushingShoulder Bushing
-
33415129492 HoseHose
-
34415129492 HoseHose
-
35415080000 Tubing 16 mmTubing 16 mm
-
36415080000 Tubing 16 mmTubing 16 mm
-
37513033029 Universal Spring ClampUniversal Spring Clamp
