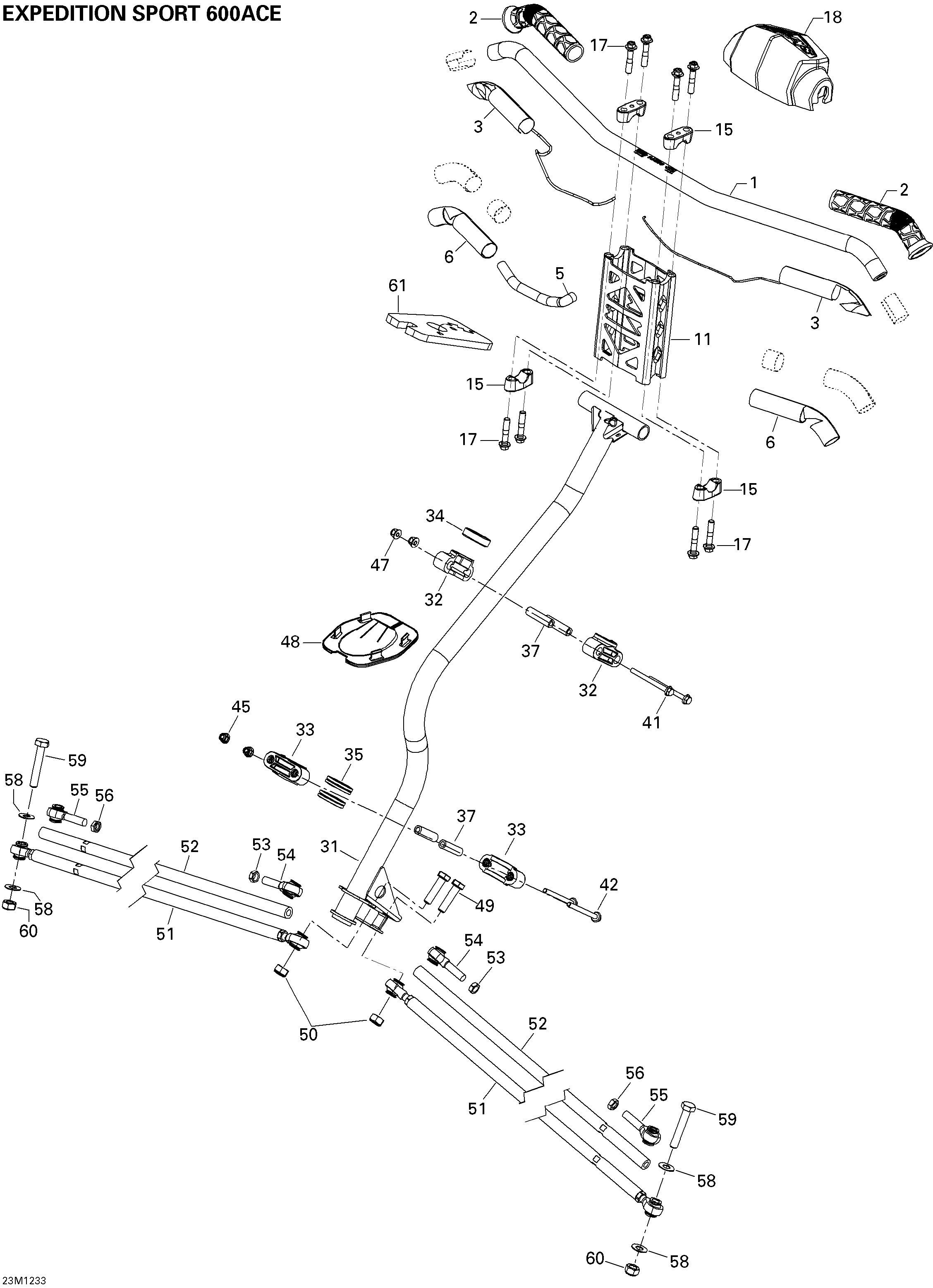

07- Steering для BRP Ski-Doo Expedition Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1506152362 Handle BarHandle Bar
-
2506152226 GripGrip
-
3506152484 Heating Element 20WHeating Element 20W
-
5515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
6506152360 InsulantInsulant
-
11860200526 Handlebar Extension KitHandlebar Extension Kit
-
15506152395 Steering SupportSteering Support
-
17250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
18506152192 Steering PadSteering Pad
-
31506152469 Main TubeMain Tube
-
32506152508 Upper Half-HousingUpper Half-Housing
-
33506152217 Lower Half-HousingLower Half-Housing
-
34506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
35506152218 Lower Vibration RingLower Vibration Ring
-
37506152297 Housing BushingHousing Bushing
-
41207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
42207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
45233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
47233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
48506152163 PlatePlate
-
49207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
50232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
52506152498 Tie-RodTie-Rod
-
53506152081 LH Thread Ball JointLH Thread Ball Joint
-
54250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
55506152019 RH Thread Ball JointRH Thread Ball Joint
-
56732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
58506152194 WasherWasher
-
59207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
60232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
61506152521 CushionCushion
