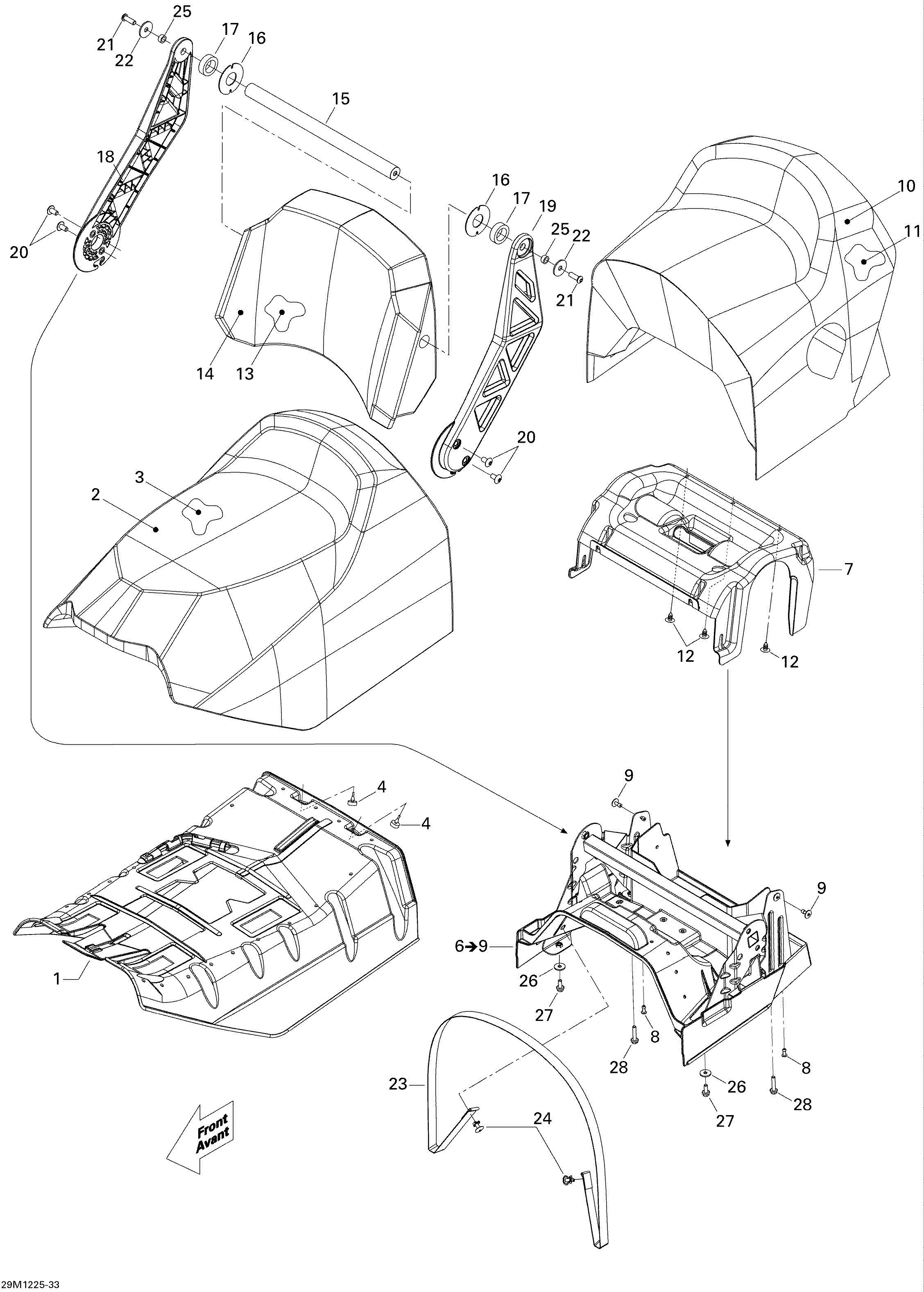

09- Seat для BRP Ski-Doo Expedition Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1510004775 Front Seat BaseFront Seat Base
-
2510005181 Seat CoverSeat Cover
-
3510004777 Front Seat FoamFront Seat Foam
-
4708000759 Rubber StopperRubber Stopper
-
6510005535 Seat Base Ass'y. Includes 6 to 9Seat Base Ass'y. Includes 6 to 9
-
7510004423 Foam SupportFoam Support
-
8390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
9293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
10510005399 Rear Seat CoverRear Seat Cover
-
11510004791 Rear Seat FoamRear Seat Foam
-
12414644300 DartDart
-
13510004782 Backrest FoamBackrest Foam
-
14510005309 Backrest CoverBackrest Cover
-
15510004377 Upper Backrest AxleUpper Backrest Axle
-
16510004379 WasherWasher
-
17510004378 Rubber ShimRubber Shim
-
18510005548 RH Arm, BlackRH Arm, Black
-
19510005549 LH Arm, BlackLH Arm, Black
-
20250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
21250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
22250200128 Flat Washer 8 mmFlat Washer 8 mm
-
23510004768 Seat BeltSeat Belt
-
24293150067 RivetRivet
-
25271000558 SpacerSpacer
-
26224061201 Flat WasherFlat Washer
-
27207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
28207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
