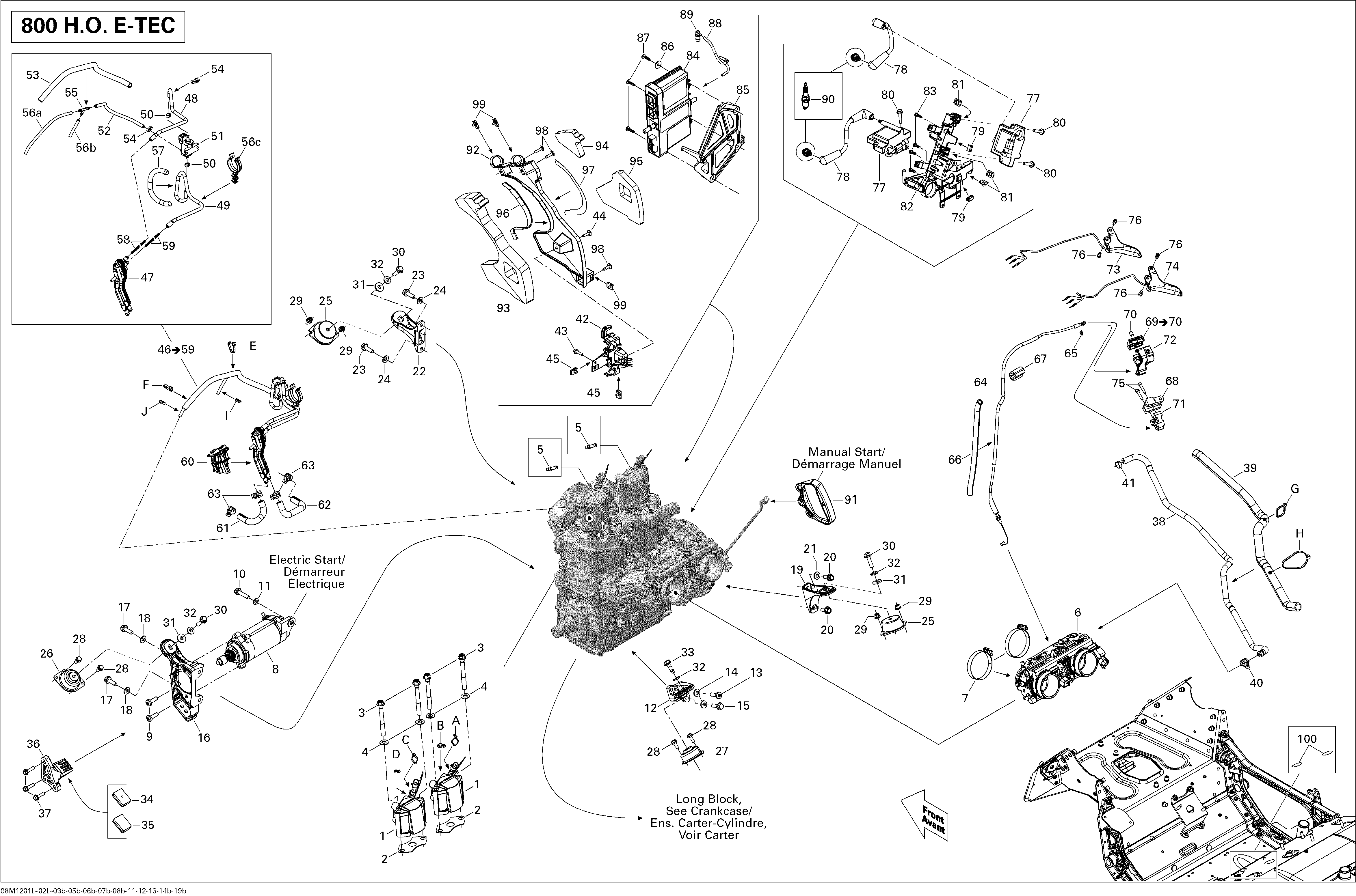

01- Engine для BRP Ski-Doo Freeride 154 800R E-TEC (Racing) - 2012
-
№АртикулНазвание
-
1512060728 Fuel InjectorFuel Injector
-
2420430930 GasketGasket
-
3420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
4234001410 Flat Washer 10 mmFlat Washer 10 mm
-
5420924724 Hose NippleHose Nipple
-
6420889199 Throttle BodyThrottle Body
-
7508000007 ClampClamp
-
12512060478 Rear Support, PTORear Support, PTO
-
13250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
16512060701 Front Support, PTOFront Support, PTO
-
17207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
18234281474 Conical Spring Washer M8Conical Spring Washer M8
-
19512060559 Rear Support, MAGRear Support, MAG
-
20207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
21234281474 Conical Spring Washer M8Conical Spring Washer M8
-
22512060469 Front Support, MAGFront Support, MAG
-
23207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060729 Rubber MountRubber Mount
-
26512060387 Rubber MountRubber Mount
-
27512060448 Rubber MountRubber Mount
-
28207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
29233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
31503183200 Washer, YellowWasher, Yellow
-
32234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33250000570 Hex. Screw M8Hex. Screw M8
-
35512060766 StopperStopper
-
36512060576 Stopper SupportStopper Support
-
37207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
38512060741 Formed Hose, OutputFormed Hose, Output
-
39415080000 Tubing 16 mmTubing 16 mm
-
40293650214 Norma Spring ClampNorma Spring Clamp
-
41293650046 Oetiker ClampOetiker Clamp
-
42512060298 Solenoid SupportSolenoid Support
-
43207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
44250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
45250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
46512060725 Manifold Ass'y. Includes 46 to 59Manifold Ass'y. Includes 46 to 59
-
47512060692 ManifoldManifold
-
48415080200 Hose, PolyurethaneHose, Polyurethane
-
49415080200 Hose, PolyurethaneHose, Polyurethane
-
50293650043 ClipClip
-
51512060774 Solenoid ValveSolenoid Valve
-
52270000374 Hose 4.3 mmHose 4.3 mm
-
53409901700 Tubing 9 mmTubing 9 mm
-
54293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
55293710068 T-FittingT-Fitting
-
56a270000374 Hose 4.3 mmHose 4.3 mm
-
56b270000374 Hose 4.3 mmHose 4.3 mm
-
56c512060762 Hose SupportHose Support
-
57415079900 Tubing 10 mmTubing 10 mm
-
58512060806 SpringSpring
-
59512060807 SpringSpring
-
60512060693 Manifold SupportManifold Support
-
61512060695 LH Formed HoseLH Formed Hose
-
62512060694 RH Formed HoseRH Formed Hose
-
63293650214 Norma Spring ClampNorma Spring Clamp
-
64512060667 Throttle CableThrottle Cable
-
65414274500 CirclipCirclip
-
66409901700 Tubing 9 mmTubing 9 mm
-
67512060313 ProtectorProtector
-
68512059969 Upper HousingUpper Housing
-
71512059537 Lower HousingLower Housing
-
73512060616 Throttle HandleThrottle Handle
-
75205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
76732601143 Flanged ScrewFlanged Screw
-
77512060711 Ignition CoilIgnition Coil
-
78512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
79710000992 ClipClip
-
80250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
81293100003 Nut M6Nut M6
-
82512060696 Solenoid SupportSolenoid Support
-
83241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
84512060781 Calibrated ModuleCalibrated Module
-
85512060297 Calibrated Module SupportCalibrated Module Support
-
86250200040 Flat WasherFlat Washer
-
87250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
88415080100 LineLine
-
89414814100 Male ConnectorMale Connector
-
90415129484 Spark Plug, NGK PFR7ABSpark Plug, NGK PFR7AB
-
91512060136 Starter Grip. Manual StartStarter Grip. Manual Start
-
92512060339 Noise ShieldNoise Shield
-
93512060343 Interior Noise FoamInterior Noise Foam
-
94512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
95512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
96512060574 Heat ShieldHeat Shield
-
97512060575 Heat ShieldHeat Shield
-
98250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
99250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
100518325560 Adhesive PatchAdhesive Patch
-
A293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
B293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
C293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
D293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
E293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
F293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
G414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
H293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
I293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
J293750001 Tie-Rap 94 mmTie-Rap 94 mm
