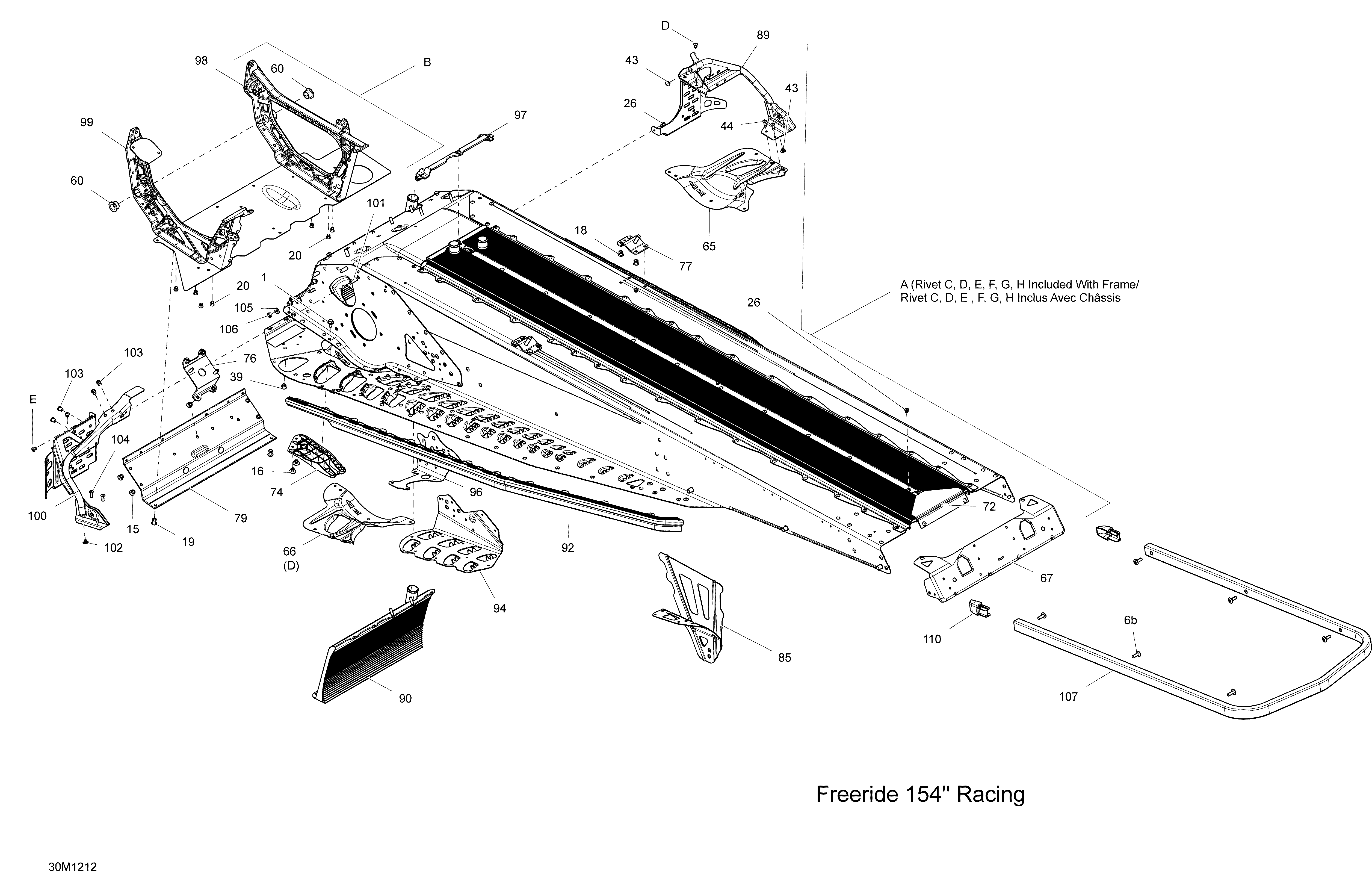

09- Frame для BRP Ski-Doo Freeride 154 800R E-TEC (Racing) - 2012
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
19293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
20293150144 Stavex RivetStavex Rivet
-
26293150144 Stavex RivetStavex Rivet
-
39293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
43293730042 DartDart
-
44390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60505072690 Leg CushionLeg Cushion
-
65518324874 RH ReinforcementRH Reinforcement
-
66518324875 LH ReinforcementLH Reinforcement
-
67518325421 Rear CapRear Cap
-
72518326692 Rear Radiator Ass'y, 154''Rear Radiator Ass'y, 154''
-
74518325782 RH DeflectorRH Deflector
-
74518325783 LH DeflectorLH Deflector
-
76518325943 MAG Engine SupportMAG Engine Support
-
77518325973 RH Rear BaseRH Rear Base
-
77518325974 LH Rear BaseLH Rear Base
-
79518326198 Front MemberFront Member
-
85518326621 RH Rear RetainerRH Rear Retainer
-
85518326622 LH Rear RetainerLH Rear Retainer
-
89518326216 RH StirupRH Stirup
-
90518326485 Front RadiatorFront Radiator
-
92518326601 RH RollerRH Roller
-
92518326602 LH RollerLH Roller
-
94860200522 Aluminum Reinforcement Frame KitAluminum Reinforcement Frame Kit
-
96518326616 RH Front RetainerRH Front Retainer
-
96518326617 LH Front RetainerLH Front Retainer
-
97518326656 SealSeal
-
98518326795 RH MemberRH Member
-
99518326796 LH MemberLH Member
-
100518326239 LH StirupLH Stirup
-
101250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
102293730042 DartDart
-
103293450268 InsertInsert
-
104293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
105250200039 Flat WasherFlat Washer
-
106232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
107518326049 Rear Bumper, Black, 154''Rear Bumper, Black, 154''
-
110520000840 CapCap
-
6b250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
A415129638 Frame FREERIDE 154'' RacingFrame FREERIDE 154'' Racing
-
B518326843 E-Module Ass'yE-Module Ass'y
-
C390909200 Avex RivetAvex Rivet
-
D390909100 Avex RivetAvex Rivet
-
E293150144 Stavex RivetStavex Rivet
-
F293150146 Henrob RivetHenrob Rivet
-
G293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
H293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
