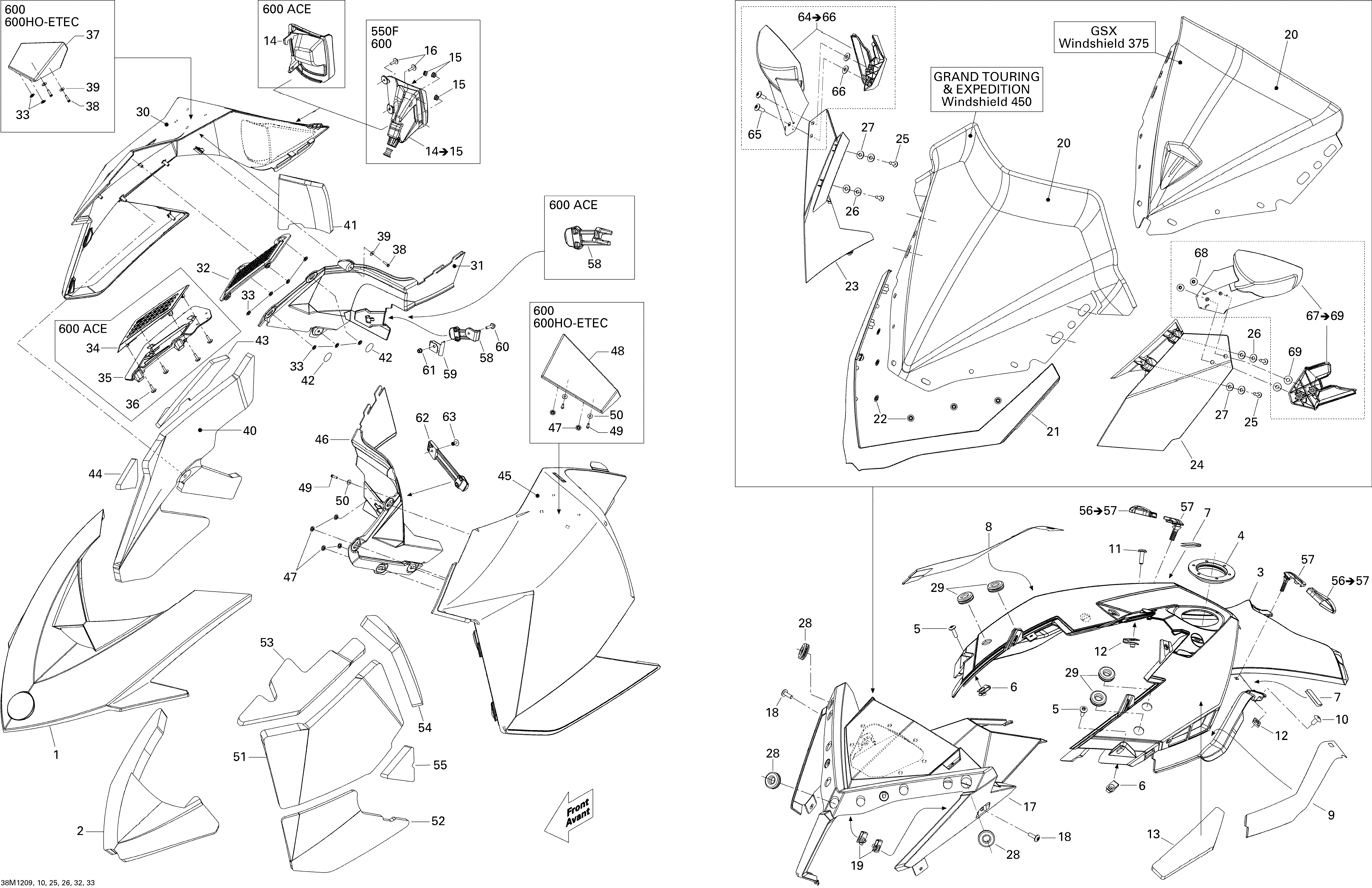

09- Hood, Windshield And Console для BRP Ski-Doo Grand Touring Sport 550F XP-FAN - 2012
-
№АртикулНазвание
-
1517304530 HoodHood
-
2517304913 Hood FoamHood Foam
-
3517304496 ConsoleConsole
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
10250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
13517304882 Foam. 550FFoam. 550F
-
14517304322 RH Console. Includes 14 to 15RH Console. Includes 14 to 15
-
15275500241 Cap, BlackCap, Black
-
16250000113 Screw M4 X 16, Type K-40. 550FScrew M4 X 16, Type K-40. 550F
-
17517304578 Gauge Support. 550FGauge Support. 550F
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
20517304766 Windshield 450. Grand TouringWindshield 450. Grand Touring
-
21517303607 Windshield SupportWindshield Support
-
22732610072 Push NutPush Nut
-
23517303791 RH Air Deflector. Grand TouringRH Air Deflector. Grand Touring
-
24517303792 LH Air Deflector. Grand TouringLH Air Deflector. Grand Touring
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
26250200025 Washer M5Washer M5
-
27250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
28517303756 GrommetGrommet
-
29517303756 GrommetGrommet
-
30517304029 RH Panel. 550FRH Panel. 550F
-
31517303671 RH Moulding PanelRH Moulding Panel
-
32517303622 GrillGrill
-
33732610072 Push NutPush Nut
-
38241141660 Flanged Hex. Screw K40 X 16. 550FFlanged Hex. Screw K40 X 16. 550F
-
39234042600 Flat Washer 4 mm, Stainless. 550FFlat Washer 4 mm, Stainless. 550F
-
40517304883 RH Center FoamRH Center Foam
-
41517304884 RH Panel Rear FoamRH Panel Rear Foam
-
42518325560 Adhesive PatchAdhesive Patch
-
43517304885 Foam. 550FFoam. 550F
-
44517304886 Foam. 550FFoam. 550F
-
45517304030 LH Panel. 550FLH Panel. 550F
-
46517303673 LH Moulding PanelLH Moulding Panel
-
47732610072 Push NutPush Nut
-
49241141660 Flanged Hex. Screw K40 X 16. 550FFlanged Hex. Screw K40 X 16. 550F
-
50234042600 Flat Washer 4 mm, Stainless. 550FFlat Washer 4 mm, Stainless. 550F
-
51517304887 LH Panel Center FoamLH Panel Center Foam
-
52517304888 LH Panel Lower FoamLH Panel Lower Foam
-
53517304889 LH Panel Upper FoamLH Panel Upper Foam
-
54517304890 LH Panel Rear FoamLH Panel Rear Foam
-
55517304891 FoamFoam
-
56860200239 Black Latch Kit. Includes 56 to 57Black Latch Kit. Includes 56 to 57
-
57517303981 Panel LatchPanel Latch
-
58517303612 Panel LatchPanel Latch
-
59517304221 Latch SupportLatch Support
-
60207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
61233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
62517303808 Panel LatchPanel Latch
-
63250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
64517305100 RH Mirror Ass'y. Includes 64 to 66RH Mirror Ass'y. Includes 64 to 66
-
65250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
66250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
67517305101 LH Mirror Ass'y. Includes 67 to 69LH Mirror Ass'y. Includes 67 to 69
-
68250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
69250200024 Rubber Washer 5 mmRubber Washer 5 mm
