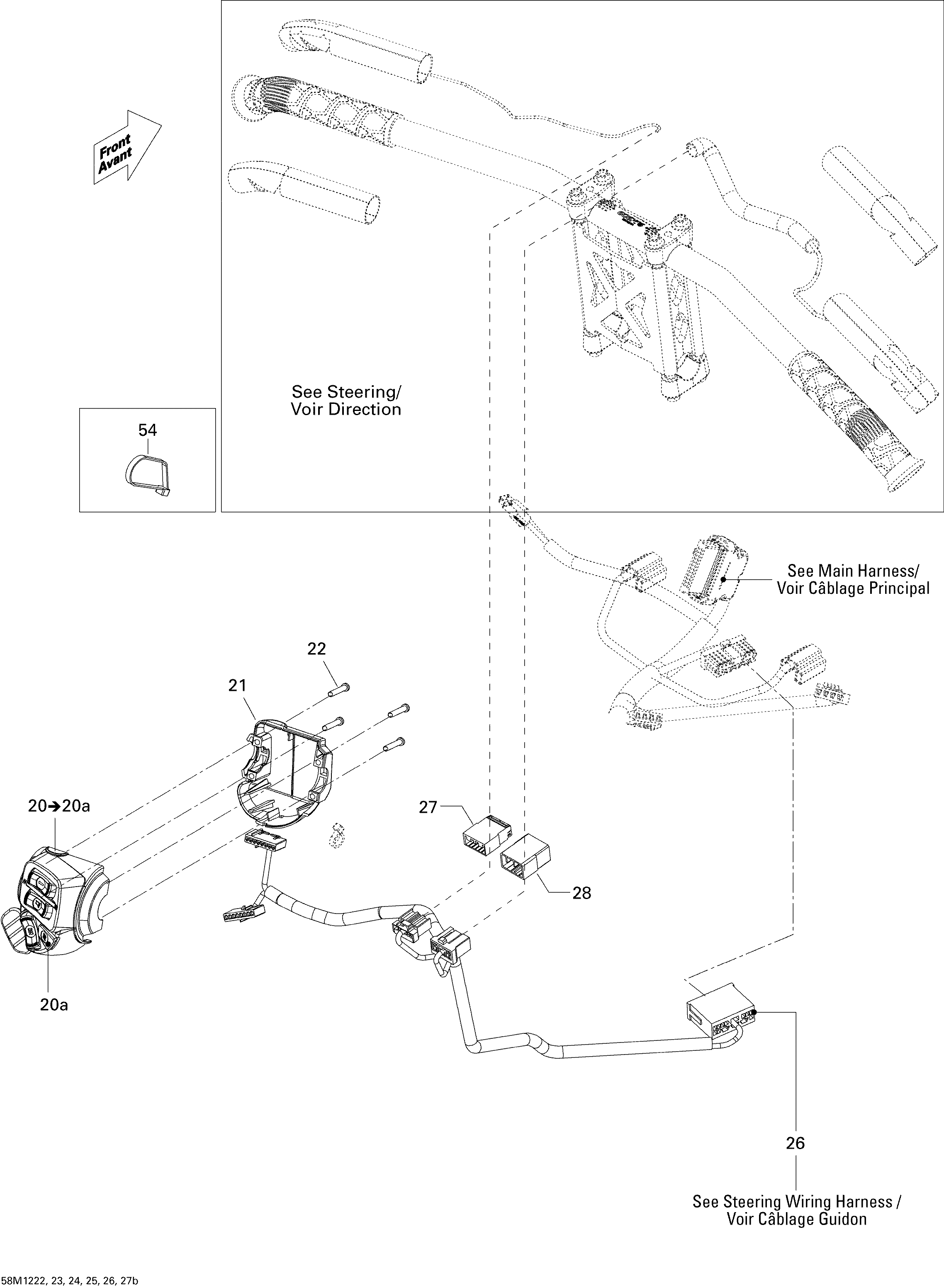

10- Electrical Accessories, Steering для BRP Ski-Doo Grand Touring Sport 550F XP-FAN - 2012
-
№АртикулНазвание
-
20515177021 LH HousingLH Housing
-
20a515176088 Start/RER ButtonStart/RER Button
-
21515175926 Housing Switch PlateHousing Switch Plate
-
22250000263 Torx Screw #8-18Torx Screw #8-18
-
26515176995 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
27515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
28515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
54293750001 Tie-Rap 94 mm. Electric StarterTie-Rap 94 mm. Electric Starter
-
54293750002 Tie-Rap 142 mm. Electric StarterTie-Rap 142 mm. Electric Starter
-
54293750008 Tie-Rap 350 mm. Electric StarterTie-Rap 350 mm. Electric Starter
-
54293750009 Tie-Rap 173 mm. Electric StarterTie-Rap 173 mm. Electric Starter
-
54414115200 Tie-Rap 180 mmTie-Rap 180 mm
