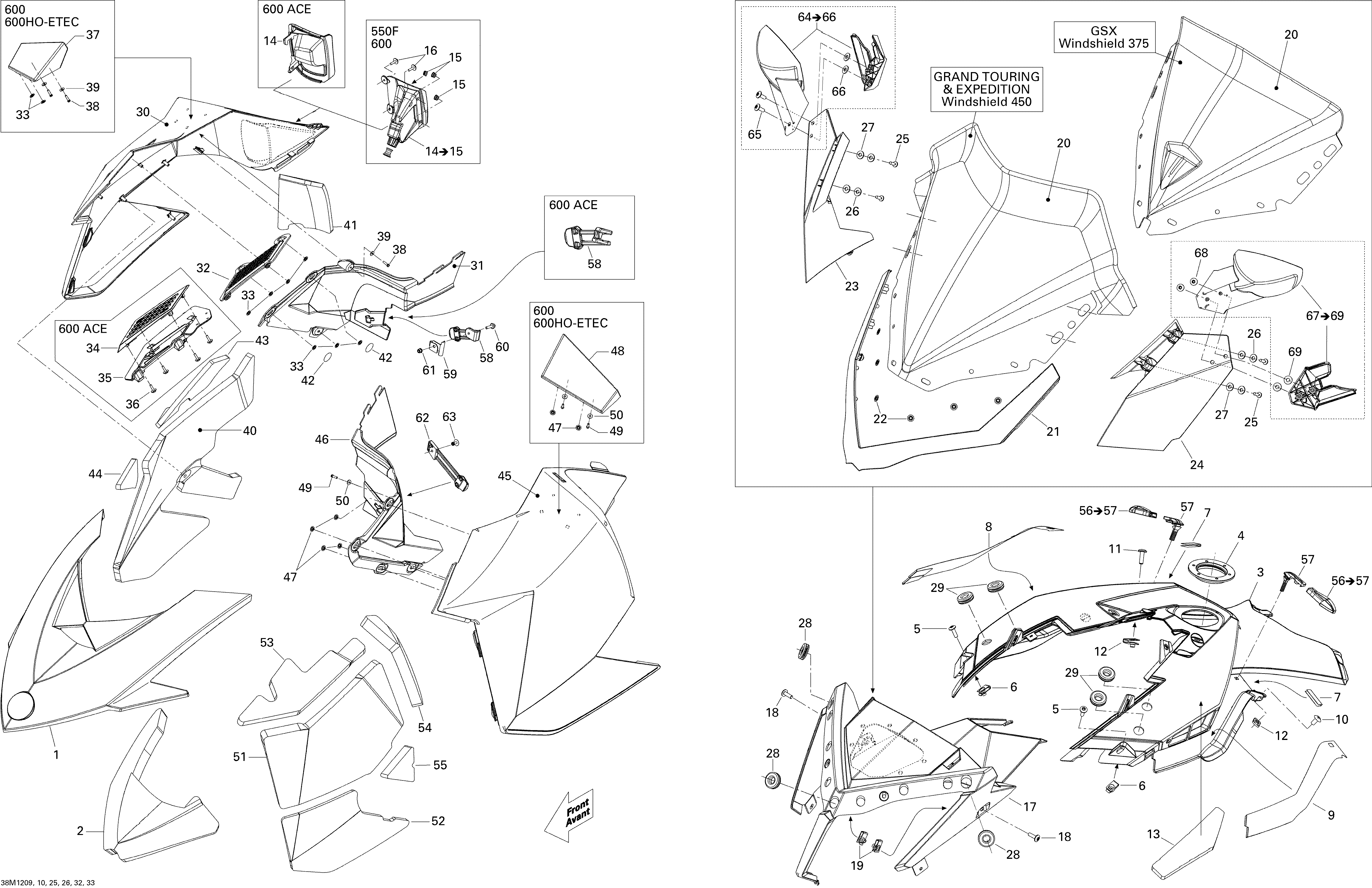

09- Hood, Windshield And Console для BRP Ski-Doo GSX LE 600HOETEC XP - 2012
-
№АртикулНазвание
-
1517304531 White HoodWhite Hood
-
2517304913 Hood FoamHood Foam
-
3517304412 White ConsoleWhite Console
-
4517304518 Console NutConsole Nut
-
5250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7517304105 Console DecalConsole Decal
-
8517304103 RH DecalRH Decal
-
9517304104 LH DecalLH Decal
-
10250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
17517304576 Gauge Support. 600HO-ETECGauge Support. 600HO-ETEC
-
18250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
19250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
20860200478 Windsheld Kit 375. Includes 21 to 28, GSXWindsheld Kit 375. Includes 21 to 28, GSX
-
20517304395 Windsheld 375mm. Windshield Only, GSXWindsheld 375mm. Windshield Only, GSX
-
21517303607 Windshield SupportWindshield Support
-
22732610072 Push NutPush Nut
-
23517303791 RH Air Deflector. GSXRH Air Deflector. GSX
-
24517303792 LH Air Deflector. GSXLH Air Deflector. GSX
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
26250200025 Washer M5Washer M5
-
27250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
28517303756 GrommetGrommet
-
29517303756 GrommetGrommet
-
30517304211 Deep Black RH Panel. 600HO-ETECDeep Black RH Panel. 600HO-ETEC
-
31517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
32517303622 GrillGrill
-
33732610072 Push NutPush Nut
-
37517303615 Black RH Air Deflector. 600HO-ETECBlack RH Air Deflector. 600HO-ETEC
-
38241141660 Flanged Hex. Screw K40 X 16. 600HO-ETECFlanged Hex. Screw K40 X 16. 600HO-ETEC
-
39234042600 Flat Washer 4 mm, Stainless. 600HO-ETECFlat Washer 4 mm, Stainless. 600HO-ETEC
-
40517304883 RH Center FoamRH Center Foam
-
41517304884 RH Panel Rear FoamRH Panel Rear Foam
-
42518325560 Adhesive PatchAdhesive Patch
-
45517304120 Deep Black LH Panel. 600HO-ETECDeep Black LH Panel. 600HO-ETEC
-
46517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
47732610072 Push NutPush Nut
-
48517303616 Black LH Air Deflector. 600HO-ETECBlack LH Air Deflector. 600HO-ETEC
-
49241141660 Flanged Hex. Screw K40 X 16. 600HO-ETECFlanged Hex. Screw K40 X 16. 600HO-ETEC
-
50234042600 Flat Washer 4 mm, Stainless. 600HO-ETECFlat Washer 4 mm, Stainless. 600HO-ETEC
-
51517304887 LH Panel Center FoamLH Panel Center Foam
-
52517304888 LH Panel Lower FoamLH Panel Lower Foam
-
53517304889 LH Panel Upper FoamLH Panel Upper Foam
-
54517304890 LH Panel Rear FoamLH Panel Rear Foam
-
55517304891 FoamFoam
-
56860200239 Black Latch Kit. Includes 56 to 57Black Latch Kit. Includes 56 to 57
-
57517303981 Panel LatchPanel Latch
-
58517303612 RH Panel LatchRH Panel Latch
-
59517304221 Latch SupportLatch Support
-
60207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
61233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
62517303808 LH Panel LatchLH Panel Latch
-
63250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
64517305100 RH Mirror Ass'y. Includes 64 to 66RH Mirror Ass'y. Includes 64 to 66
-
65250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
66250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
67517305101 LH Mirror Ass'y. Includes 67 to 69LH Mirror Ass'y. Includes 67 to 69
-
68250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
69250200024 Rubber Washer 5 mmRubber Washer 5 mm
