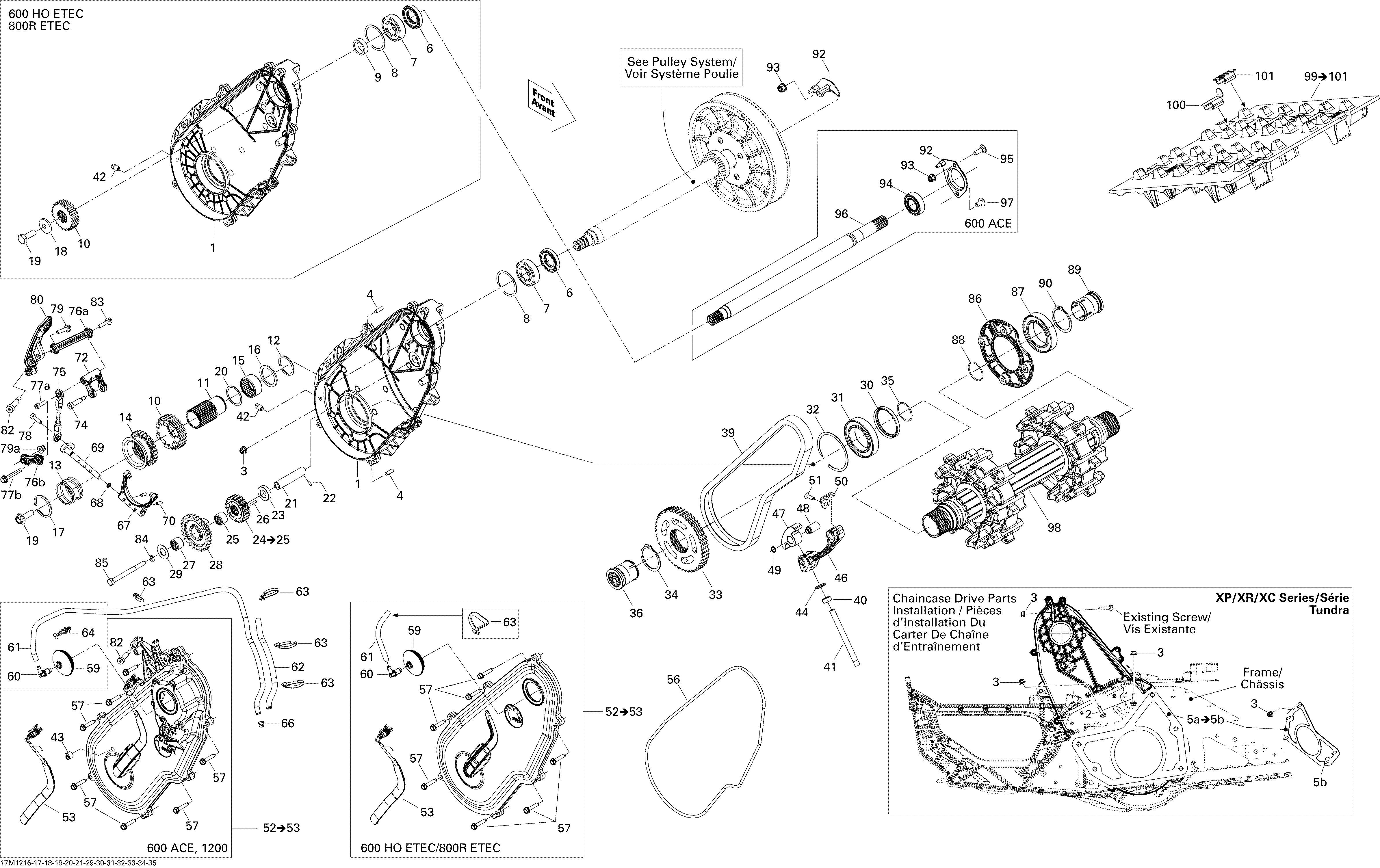

05- Drive System для BRP Ski-Doo GSX SE 800RETEC XR - 2012
-
№АртикулНазвание
-
1504153055 ChaincaseChaincase
-
2207662034 Hex. Flanged ScrewHex. Flanged Screw
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
6415049300 Oil SealOil Seal
-
7293350055 Ball BearingBall Bearing
-
8504152576 CirclipCirclip
-
9504152628 ShimShim
-
10504091000 Sprocket, 23 Teeth. 600HO ETECSprocket, 23 Teeth. 600HO ETEC
-
10504148400 Sprocket, 27 Teeth. 800R ETECSprocket, 27 Teeth. 800R ETEC
-
18504152784 Spring Washer M10Spring Washer M10
-
19207103044 Hex. Screw M10 X 30Hex. Screw M10 X 30
-
30504152571 SealSeal
-
31293350059 Ball BearingBall Bearing
-
32504152582 CirclipCirclip
-
33504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
34504152572 CirclipCirclip
-
35293300122 O-RingO-Ring
-
36504152619 Magnetic CapMagnetic Cap
-
39504152629 Drive Chain, 104 Links. 600HO ETECDrive Chain, 104 Links. 600HO ETEC
-
39504152630 Drive Chain, 106 Links. 800R ETECDrive Chain, 106 Links. 800R ETEC
-
40232006414 Hex. Nut M10Hex. Nut M10
-
41504152602 Adjustment ScrewAdjustment Screw
-
42504152854 Magnetic PlugMagnetic Plug
-
44250200100 Bonded WasherBonded Washer
-
46504152685 Chain TensionerChain Tensioner
-
47504152739 Slider Chain Ass'y. 800R ETECSlider Chain Ass'y. 800R ETEC
-
47504153031 Slider Chain Ass'y. 600HO ETECSlider Chain Ass'y. 600HO ETEC
-
48504152841 Tensionner AxleTensionner Axle
-
49504152282 CirclipCirclip
-
52504153059 Chaincase Cover Ass'y. Includes 52 to 53Chaincase Cover Ass'y. Includes 52 to 53
-
53504152896 SensorSensor
-
56293300130 O-RingO-Ring
-
57210263080 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
59504152860 CapCap
-
60414580700 Male ConnectorMale Connector
-
61415080200 Hose, PolyurethaneHose, Polyurethane
-
86504152949 Housing BearingHousing Bearing
-
87293350059 Ball BearingBall Bearing
-
88293300122 O-RingO-Ring
-
89504152619 Magnetic CapMagnetic Cap
-
90504152572 CirclipCirclip
-
92504152974 Bearing HousingBearing Housing
-
93233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
98504153083 Drive Axle Ass'yDrive Axle Ass'y
-
99504152905 Track Ass'y 15X137X1.2. Includes 99 to 101Track Ass'y 15X137X1.2. Includes 99 to 101
-
100415129528 Track GuideTrack Guide
-
101504152651 CleatCleat
-
5a518325816 Plate. Includes 5a to 5bPlate. Includes 5a to 5b
