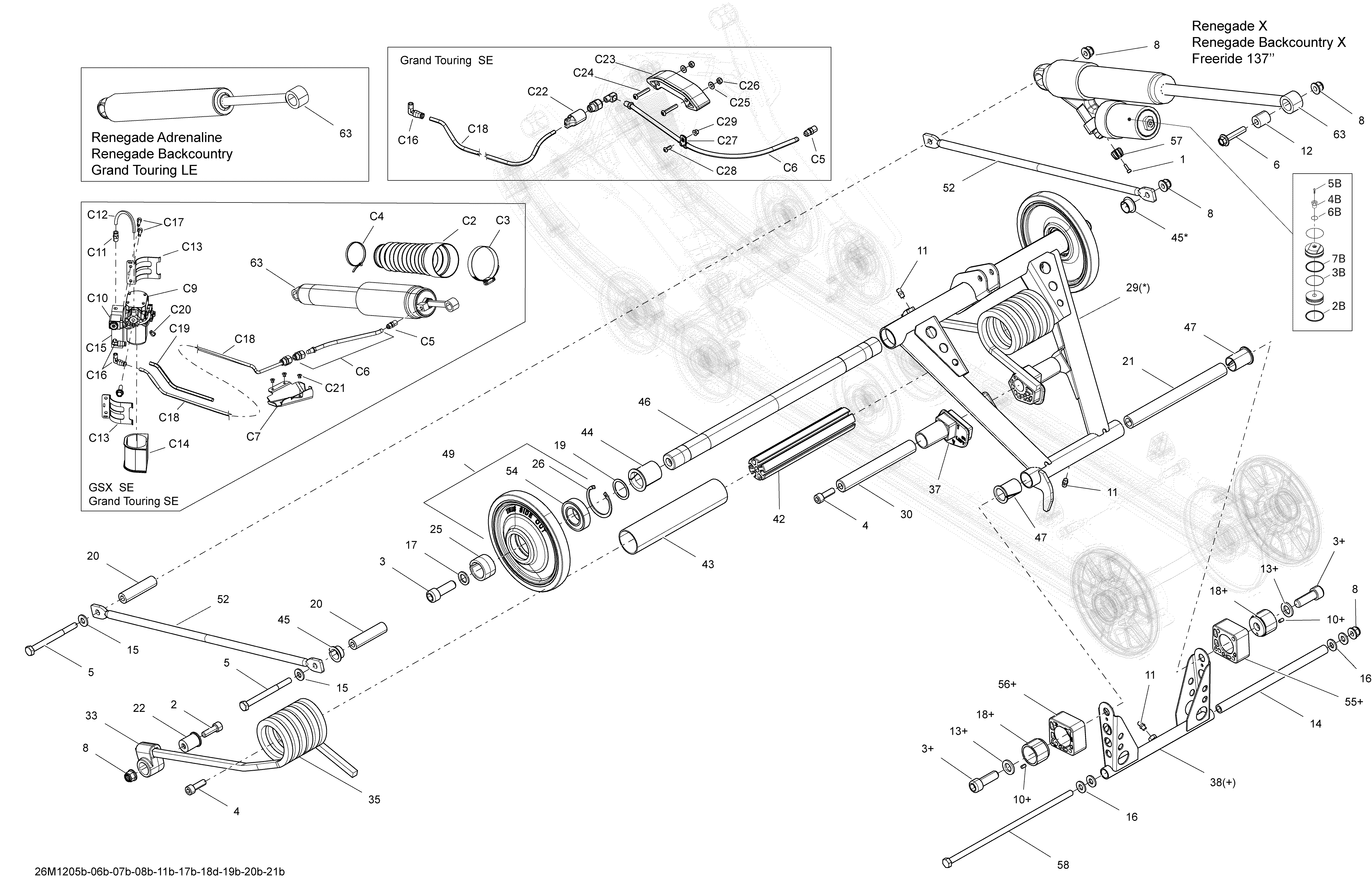

08- Rear Suspension Rear Arm, Shock для BRP Ski-Doo GSX SE 800RETEC XR - 2012
-
№АртикулНазвание
-
2250000477 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
3250000484 Socket Screw M12 X 35Socket Screw M12 X 35
-
4205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
5207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
6207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
8250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
10250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
11408200700 Grease FittingGrease Fitting
-
12414936000 CushionCushion
-
13503189148 WasherWasher
-
14503189156 Pivot Arm AxlePivot Arm Axle
-
15503189157 WasherWasher
-
16503192494 WasherWasher
-
17503192491 WasherWasher
-
18503189488 Block GuideBlock Guide
-
19503190328 WasherWasher
-
20503190643 Bar AxleBar Axle
-
21503192330 Lower ShaftLower Shaft
-
22503190754 Retainer CushionRetainer Cushion
-
25503191099 Retaining RingRetaining Ring
-
26415129371 Retaining RingRetaining Ring
-
29503191967 Rear Arm Ass'yRear Arm Ass'y
-
30503191178 Spring Cam AxeSpring Cam Axe
-
33503191183 Spring SupportSpring Support
-
35503192267 LH Spring, SquareLH Spring, Square
-
35503192268 RH Spring, SquareRH Spring, Square
-
37503191191 LH Spring CamLH Spring Cam
-
37503191190 RH Spring CamRH Spring Cam
-
38503191302 Pivot ArmPivot Arm
-
42503191344 Spring AxleSpring Axle
-
43503191345 Plastic BushingPlastic Bushing
-
44503191451 CushionCushion
-
45503191555 Swivel BushingSwivel Bushing
-
46503191233 Upper ShaftUpper Shaft
-
47503191640 CushionCushion
-
49503191738 Wheel, 155 mmWheel, 155 mm
-
52503192083 Throttle RodThrottle Rod
-
54503191982 Ball BearingBall Bearing
-
55503192300 RH Block, 4 PositionsRH Block, 4 Positions
-
56503192301 LH Block, 4 PositionsLH Block, 4 Positions
-
58503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
63503192651 Rear Shock Ass'yRear Shock Ass'y
-
C2570278300 Protection BootProtection Boot
-
C3293650064 Tridon ClampTridon Clamp
-
C4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
C5503191939 Male Pneumatic ConnectorMale Pneumatic Connector
-
C6503192652 Air Hose Ass'yAir Hose Ass'y
-
C7518326391 Air Suspension BracketAir Suspension Bracket
-
C9503192517 CompressorCompressor
-
C10706000940 Check ValveCheck Valve
-
C11706000869 ConnectorConnector
-
C12415129507 HoseHose
-
C13503193103 Compressor BracketCompressor Bracket
-
C14706000631 Compressor IsolatorCompressor Isolator
-
C15503193008 SolenoidSolenoid
-
C16706000872 Elbow 90°Elbow 90°
-
C17205061644 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
C18415129507 HoseHose
-
C19515175442 Tubing 6 mmTubing 6 mm
-
C20414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
C21293150102 Rivet 3/16Rivet 3/16
