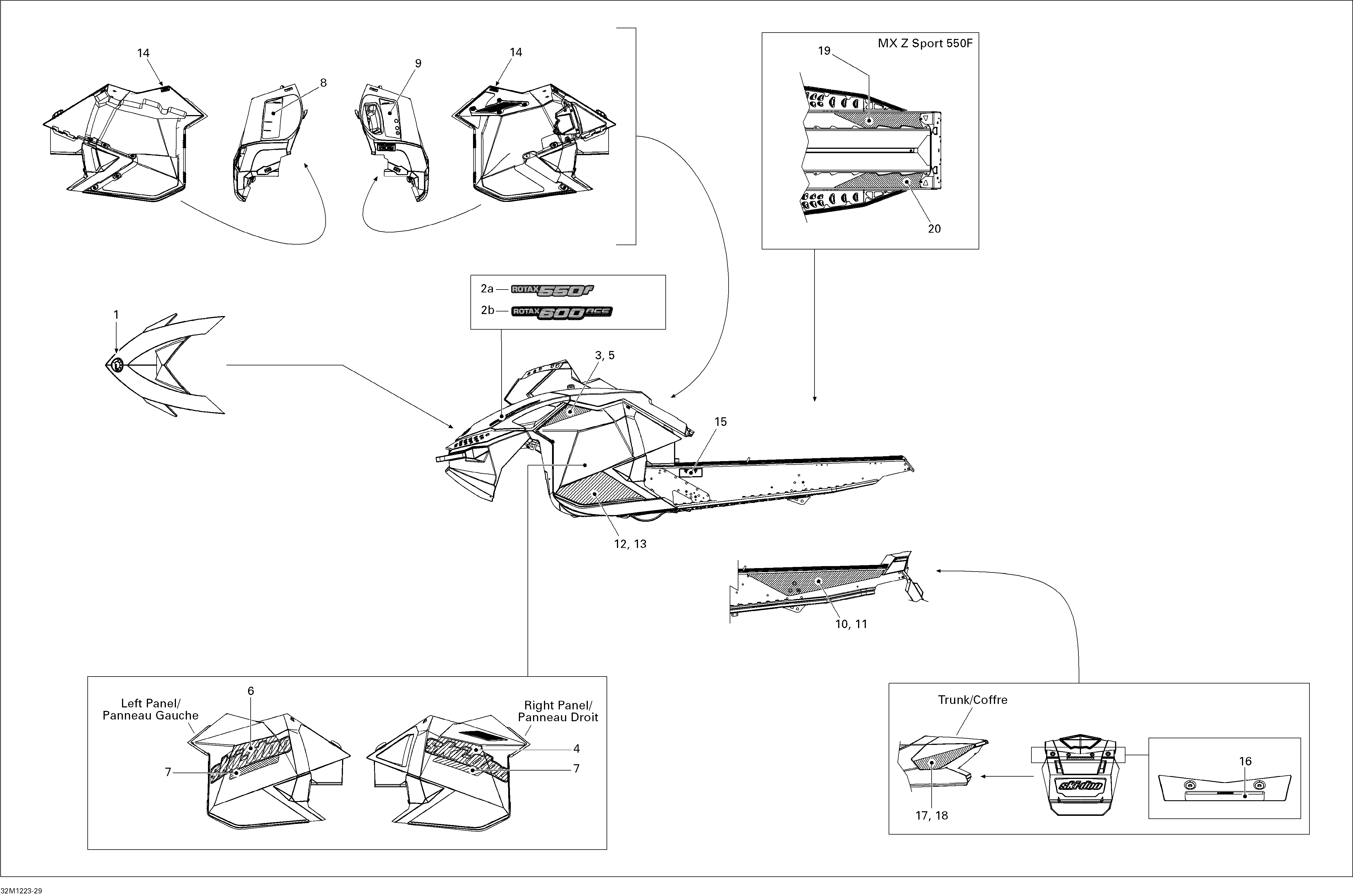

09- Decals для BRP Ski-Doo MXZ Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2b516004624 Hood Decal, Rotax 600ACEHood Decal, Rotax 600ACE
-
3516004767 RH Upper Side DecalRH Upper Side Decal
-
4516004762 RH Side DecalRH Side Decal
-
5516004766 LH Upper Side DecalLH Upper Side Decal
-
6516004761 LH Side DecalLH Side Decal
-
7516004765 Side Decal, MX-ZSide Decal, MX-Z
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004888 Warning Decal, SecurityWarning Decal, Security
-
10516004769 RH Frame DecalRH Frame Decal
-
11516004768 LH Frame DecalLH Frame Decal
-
12516004764 RH Lower DecalRH Lower Decal
-
13516004763 LH Lower DecalLH Lower Decal
-
14516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
15516004815 Conformity Decal, B.A.T.. North AmericaConformity Decal, B.A.T.. North America
-
16516004440 Warning Decal, TrackWarning Decal, Track
-
17516004760 RH Cover DecalRH Cover Decal
-
18516004759 LH Cover DecalLH Cover Decal
