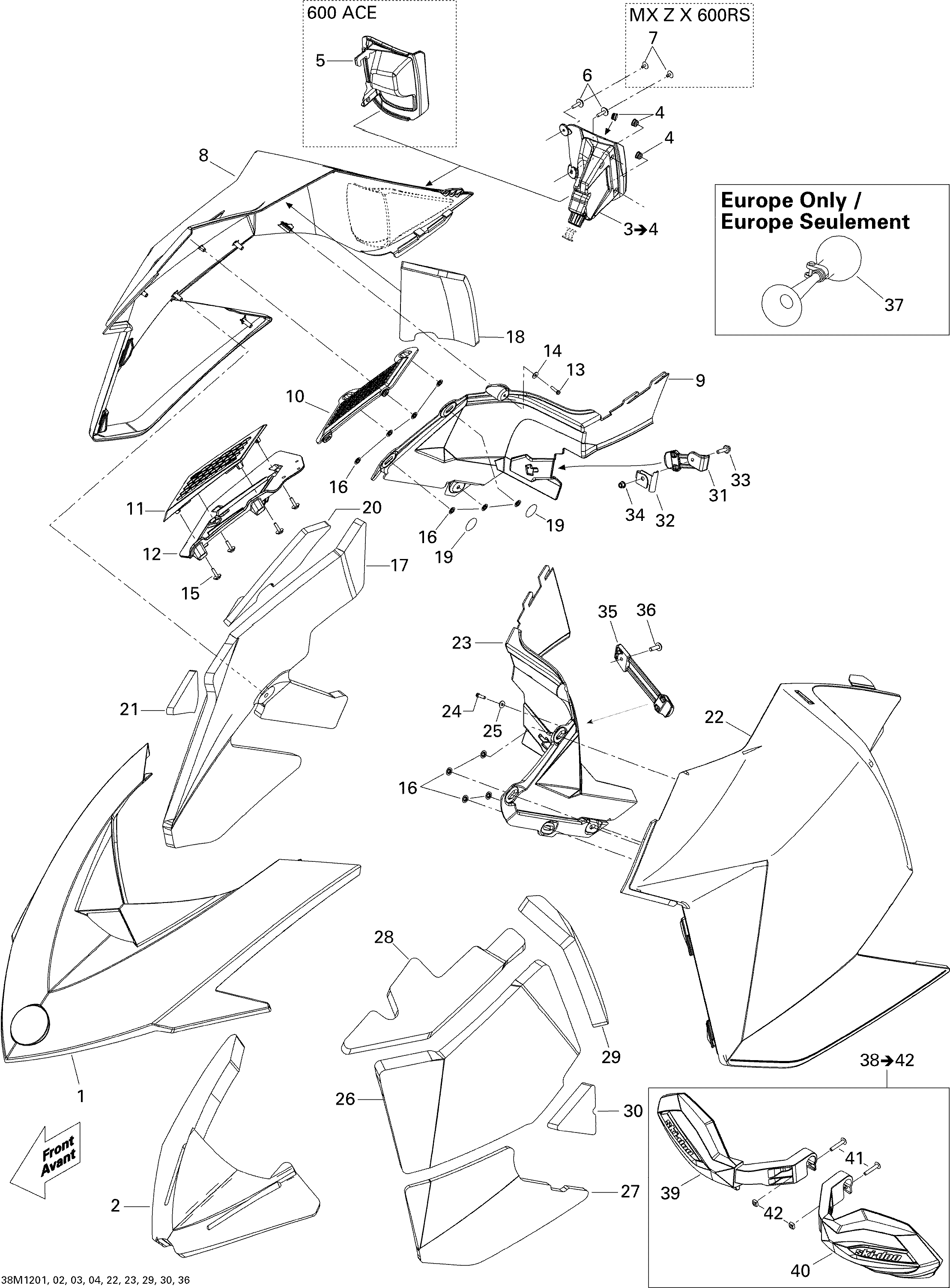

09- Hood для BRP Ski-Doo MXZ Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1517304198 Hood, Yellow 2000Hood, Yellow 2000
-
2517304913 Hood FoamHood Foam
-
5517304500 RH Console. 600 ACERH Console. 600 ACE
-
8517304029 RH Panel, Deep BlackRH Panel, Deep Black
-
9517304424 RH Moulding PanelRH Moulding Panel
-
11517304763 External GrillExternal Grill
-
12517304764 Internal GrillInternal Grill
-
13241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
14234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
15250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
16732610072 Push NutPush Nut
-
17517304883 RH Center FoamRH Center Foam
-
18517304884 RH Panel Rear FoamRH Panel Rear Foam
-
19518325560 Adhesive PatchAdhesive Patch
-
22517304030 LH Panel, Deep BlackLH Panel, Deep Black
-
23517304431 LH Moulding PanelLH Moulding Panel
-
24241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
25234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
26517304887 LH Panel Center FoamLH Panel Center Foam
-
27517304888 LH Panel Lower FoamLH Panel Lower Foam
-
28517304889 LH Panel Upper FoamLH Panel Upper Foam
-
29517304890 LH Panel Rear FoamLH Panel Rear Foam
-
30517304891 FoamFoam
-
31517304551 Panel LatchPanel Latch
-
35517303808 Panel LatchPanel Latch
-
36250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
37549011291 Horn. EuropeHorn. Europe
