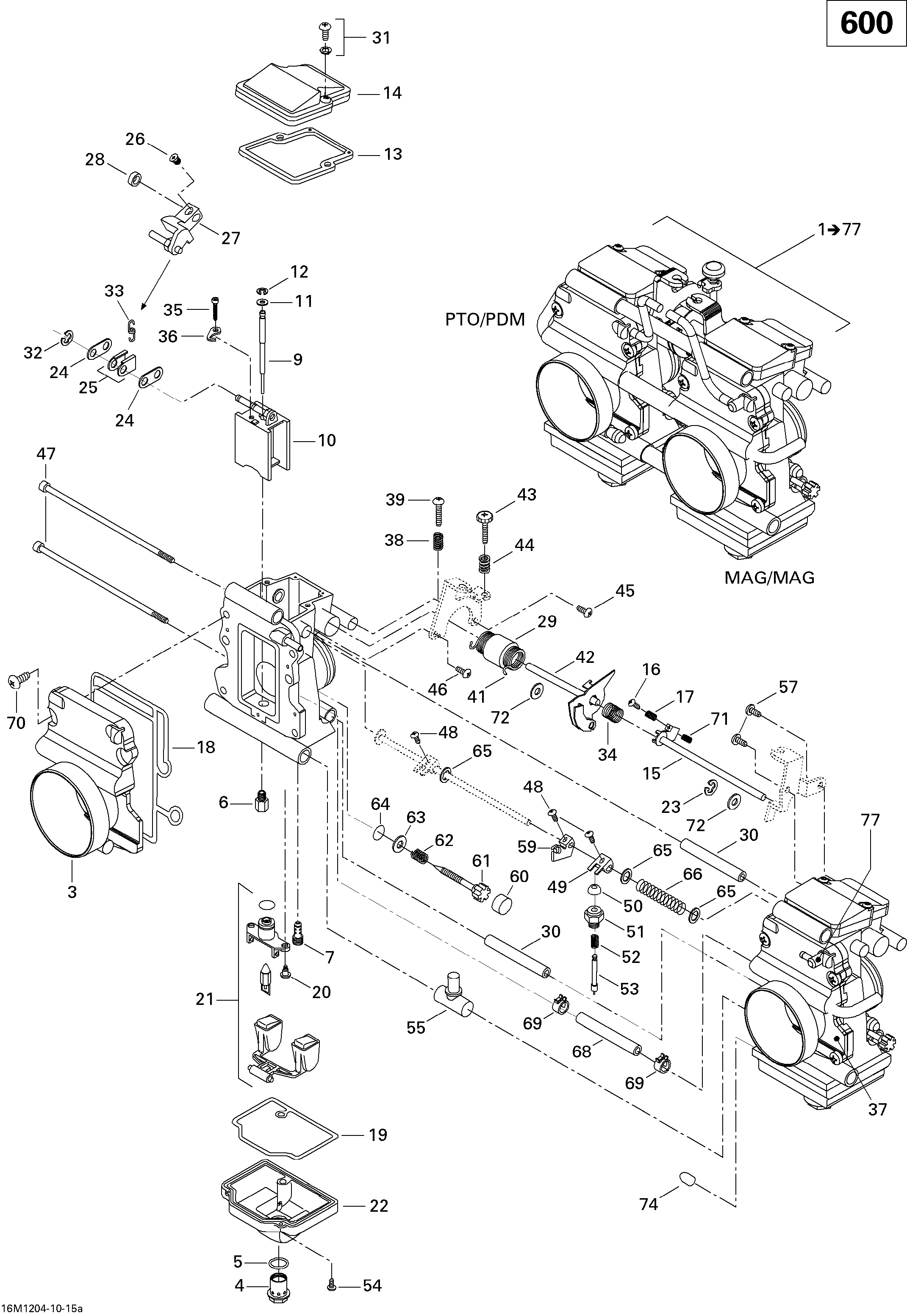

02- Carburetor для BRP Ski-Doo MXZ TNT & Sport 600 XP - 2012
-
№АртикулНазвание
-
1403138815 Carburetor Kit, TM40-B418. Includes 1 to 77Carburetor Kit, TM40-B418. Includes 1 to 77
-
3404162093 Funnel, PTOFunnel, PTO
-
4404162094 Drain ScrewDrain Screw
-
5404161945 O-RingO-Ring
-
6404106400 Main jet MJ 390 (PTO)Main jet MJ 390 (PTO)
-
7404161944 Pilot Jet 17.5Pilot Jet 17.5
-
9404162129 Needle Jet J8-9CEY02-58Needle Jet J8-9CEY02-58
-
10404162020 Valve Piston 2.0Valve Piston 2.0
-
11404137600 PackingPacking
-
12404152200 E-RingE-Ring
-
13404161940 GasketGasket
-
14404161939 CoverCover
-
15404162006 Throttle ShaftThrottle Shaft
-
16404136700 ScrewScrew
-
17404135300 Adjustment SpringAdjustment Spring
-
18404161935 O-RingO-Ring
-
19404161961 O-RingO-Ring
-
20404161933 ScrewScrew
-
21404161932 FloatFloat
-
22404162095 Body Float Ass'yBody Float Ass'y
-
23707200027 E-RingE-Ring
-
24404162007 PlatePlate
-
25404162008 HolderHolder
-
26404161928 ScrewScrew
-
27404162009 LeverLever
-
28404161926 RingRing
-
29404161925 RingRing
-
30404161924 RingRing
-
31404161923 ScrewScrew
-
32404138300 E-RingE-Ring
-
33404162010 SpringSpring
-
34404162011 SpringSpring
-
35404161920 ScrewScrew
-
36404161919 PlatePlate
-
37404162096 Funnel, MAGFunnel, MAG
-
38404161918 SpringSpring
-
39404161917 ScrewScrew
-
41404162014 SpringSpring
-
42404162015 Throttle ShaftThrottle Shaft
-
43404137500 Adjustment ScrewAdjustment Screw
-
44404161913 SpringSpring
-
45404161912 ScrewScrew
-
46404136100 ScrewScrew
-
47404161911 ScrewScrew
-
48404161910 ScrewScrew
-
49404161909 LeverLever
-
50404140000 CapCap
-
51404136900 Guide HolderGuide Holder
-
52404161908 SpringSpring
-
53404161907 Plunger Ass'yPlunger Ass'y
-
54404161906 ScrewScrew
-
55404161905 NippleNipple
-
57404161903 ScrewScrew
-
59404161901 Starter LeverStarter Lever
-
60404161899 CapCap
-
61404161898 AdjusterAdjuster
-
62404161897 SpringSpring
-
63404161896 WasherWasher
-
64404161895 PackingPacking
-
65404161894 PackingPacking
-
66404103500 SpringSpring
-
68404161956 HoseHose
-
69404161957 ClipClip
-
70404138800 ScrewScrew
-
71404135400 SpringSpring
-
72270500118 PackingPacking
-
74270500095 CapCap
-
77404128800 Elbow 90°Elbow 90°
