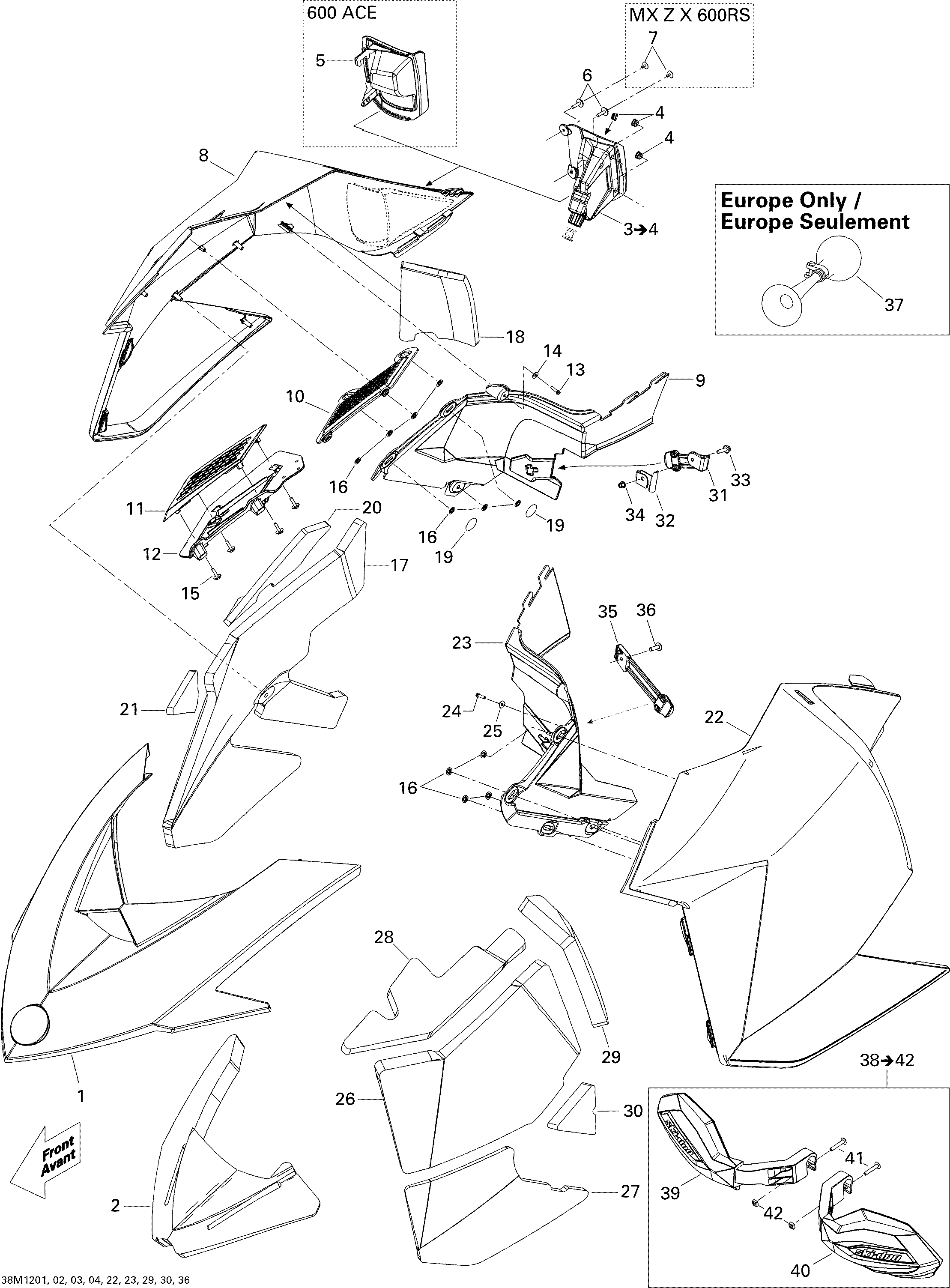

09- Hood для BRP Ski-Doo MXZ TNT & Sport 600 XP - 2012
-
№АртикулНазвание
-
1517304198 Hood, Yellow 2000Hood, Yellow 2000
-
2517304913 Hood FoamHood Foam
-
3517304322 RH Console. Includes 3 to 4RH Console. Includes 3 to 4
-
4275500241 Cap, BlackCap, Black
-
6250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
8517304029 RH Panel, Deep BlackRH Panel, Deep Black
-
9517304424 RH Moulding PanelRH Moulding Panel
-
10517303622 GrillGrill
-
13241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
14234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
16732610072 Push NutPush Nut
-
17517304883 RH Center FoamRH Center Foam
-
18517304884 RH Panel Rear FoamRH Panel Rear Foam
-
19518325560 Adhesive PatchAdhesive Patch
-
22517304030 LH Panel, Deep BlackLH Panel, Deep Black
-
23517304431 LH Moulding PanelLH Moulding Panel
-
24241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
25234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
26517304887 LH Panel Center FoamLH Panel Center Foam
-
27517304888 LH Panel Lower FoamLH Panel Lower Foam
-
28517304889 LH Panel Upper FoamLH Panel Upper Foam
-
29517304890 LH Panel Rear FoamLH Panel Rear Foam
-
30517304891 FoamFoam
-
31517303612 Panel LatchPanel Latch
-
32517304221 Latch SupportLatch Support
-
33207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
34233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
35517303808 Panel LatchPanel Latch
-
36250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
37549011291 Horn. EuropeHorn. Europe
