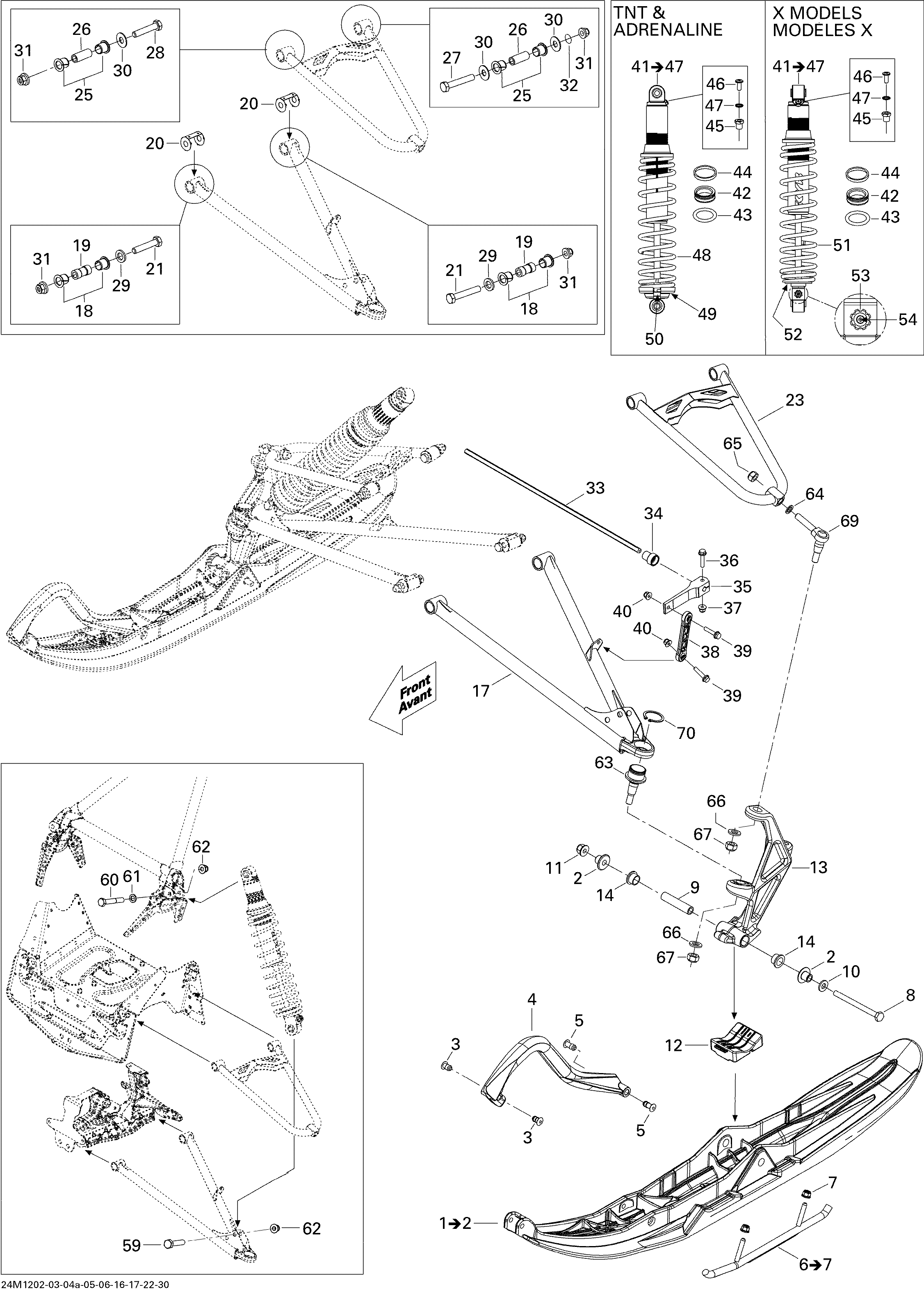

07- Front Suspension And Ski для BRP Ski-Doo MXZ TNT 600ACE LFF - 2012
-
№АртикулНазвание
-
1505072943 RH Pilot Ski, Black. Includes 1 to 2RH Pilot Ski, Black. Includes 1 to 2
-
1505072942 LH Pilot Ski, Black. Includes 1 to 2LH Pilot Ski, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070917 Handle, YellowHandle, Yellow
-
5505072133 RetainerRetainer
-
6860200141 Carbide Runner Kit. Includes 6 to 7Carbide Runner Kit. Includes 6 to 7
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073007 LH Ski Leg. TNTLH Ski Leg. TNT
-
13505073008 RH Ski Leg. TNTRH Ski Leg. TNT
-
14505072690 Leg CushionLeg Cushion
-
17505072495 RH Lower Arm. TNTRH Lower Arm. TNT
-
17505072496 LH Lower Arm. TNTLH Lower Arm. TNT
-
18505072208 BushingBushing
-
19505072393 BushingBushing
-
20505072634 Wear PlateWear Plate
-
21250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
23505072374 Upper ArmUpper Arm
-
25505072250 BushingBushing
-
26505072143 BushingBushing
-
27250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
28250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
29503189564 WasherWasher
-
30505072392 WasherWasher
-
31250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
32505072448 O-RingO-Ring
-
33505072602 StabilisatorStabilisator
-
34505072064 BushingBushing
-
35505072394 Stabilisator LeverStabilisator Lever
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072204 Double Ball Joint LinkDouble Ball Joint Link
-
39207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
40233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41505072754 Front Shock. TNT, Includes 41 to 47Front Shock. TNT, Includes 41 to 47
-
42505189309 Free PistonFree Piston
-
43414888312 O-RingO-Ring
-
44503189308 Piston RingPiston Ring
-
45505070398 Air ValveAir Valve
-
46505070399 ScrewScrew
-
47505070400 O-RingO-Ring
-
48505072230 Spring. TNTSpring. TNT
-
49706200881 Spring Stopper. TNTSpring Stopper. TNT
-
50706200785 Cap. TNTCap. TNT
-
59207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
60207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
61503189564 WasherWasher
-
62233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
63505072682 Lower Ball JointLower Ball Joint
-
64503189276 WasherWasher
-
65250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
66234021410 Flat Washer 12 mmFlat Washer 12 mm
-
67250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
69505072257 Upper Ball JointUpper Ball Joint
-
70293370035 CirclipCirclip
