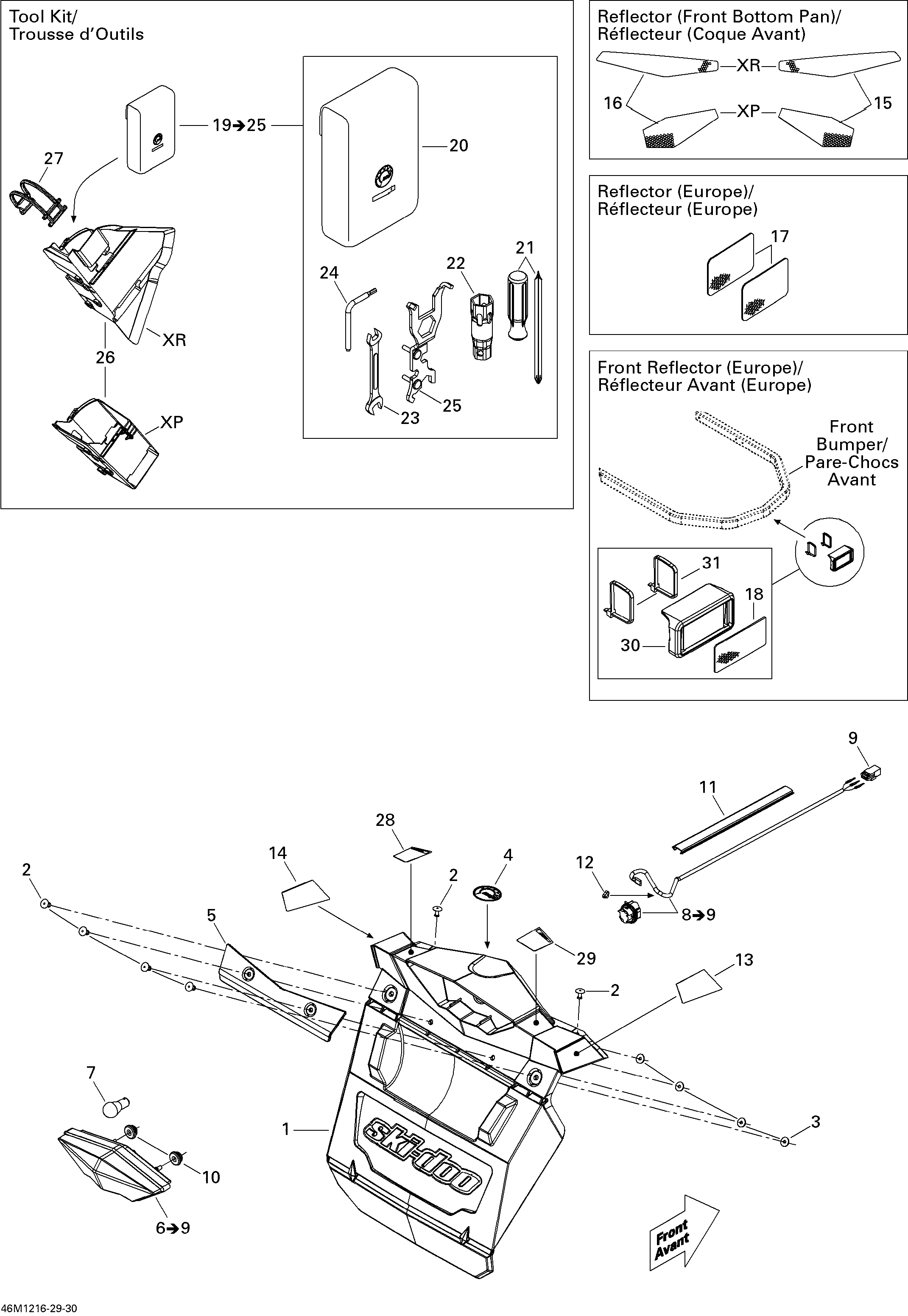

09- Utilities для BRP Ski-Doo MXZ TNT 600ACE LFF - 2012
-
№АртикулНазвание
-
1520000702 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000751 ReinforcementReinforcement
-
6520000587 Rear Light. Includes 6 to 9Rear Light. Includes 6 to 9
-
7520000758 BulbBulb
-
8520000677 Wiring Harness. Includes 8 to 9Wiring Harness. Includes 8 to 9
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10705003666 Rubber GrommetRubber Grommet
-
11520000829 Radiator TrimRadiator Trim
-
12293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13520001162 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
14520001161 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
15520000718 RH Front ReflectorRH Front Reflector
-
16520000719 LH Front ReflectorLH Front Reflector
-
19529000066 Tool Kit. Includes 19 to 25Tool Kit. Includes 19 to 25
-
21529000004 Screw DriverScrew Driver
-
23529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
24520001142 Spacing ToolSpacing Tool
-
25520000988 Wrench SuspensionWrench Suspension
-
26520000894 Tool Kit RackTool Kit Rack
-
27520000528 LatchLatch
-
28516004550 Warning Decal, SecurityWarning Decal, Security
-
29516004601 Warning Decal, SecurityWarning Decal, Security
