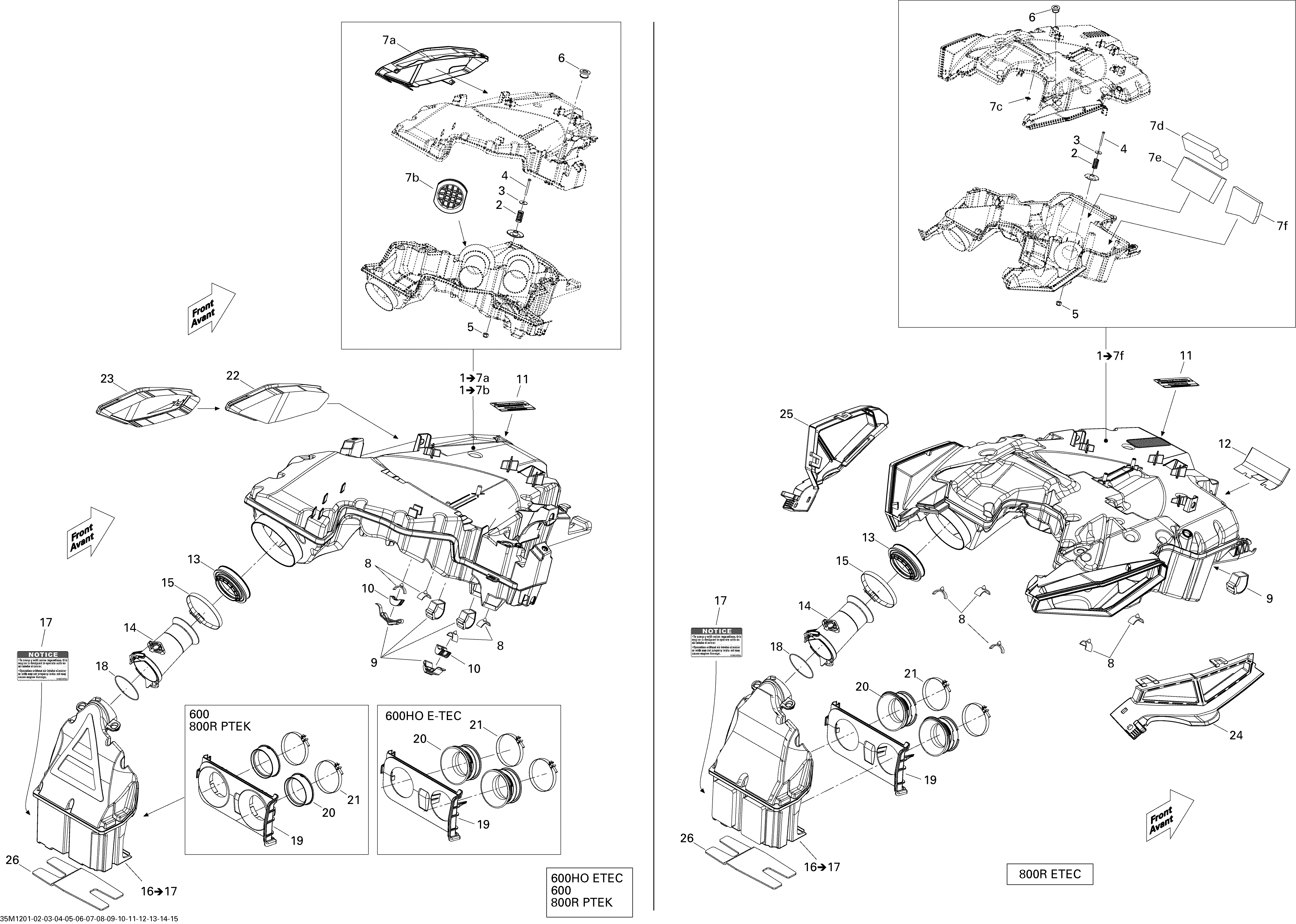

02- Air Intake System 600HO ETEC для BRP Ski-Doo MXZ TNT 600HOETEC - 2012
-
№АртикулНазвание
-
1508000625 Secondary Chamber Ass'y. Includes 1 to 7bSecondary Chamber Ass'y. Includes 1 to 7b
-
2508000576 SpringSpring
-
3224060201 Flat WasherFlat Washer
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
5232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
6508000574 GrommetGrommet
-
8508000537 StopperStopper
-
9508000532 Strip VelcroStrip Velcro
-
10508000572 BumperBumper
-
11516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
13508000567 BootBoot
-
14508000662 FluteFlute
-
15514052924 Norma ClampNorma Clamp
-
16508000681 Primary Chamber Ass'y. Includes 16 To 17Primary Chamber Ass'y. Includes 16 To 17
-
17516004572 Decal, Air IntakeDecal, Air Intake
-
18293300115 O-RingO-Ring
-
19508000613 Plate AdapterPlate Adapter
-
20508000614 Air Intake AdapterAir Intake Adapter
-
21508000346 Gemi ClampGemi Clamp
-
22415129377 Foam FilterFoam Filter
-
23415129376 Filter CoverFilter Cover
-
26508000739 Insulated FoamInsulated Foam
-
7A508000568 Air FilterAir Filter
-
7b508000590 CapCap
