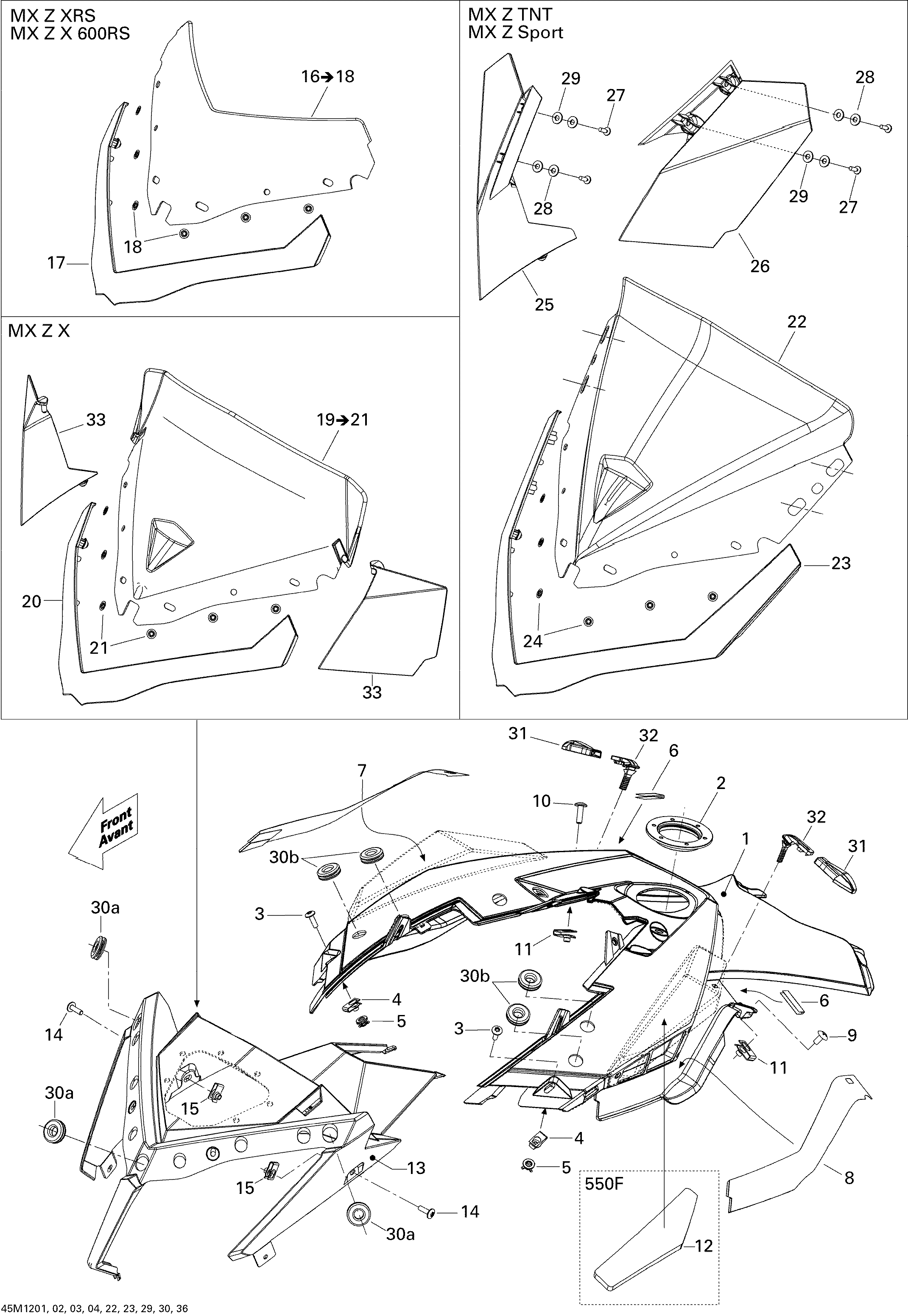

09- Windshield And Console для BRP Ski-Doo MXZ TNT 600HOETEC - 2012
-
№АртикулНазвание
-
1517303778 Yellow Console. 600HOEYellow Console. 600HOE
-
1517304842 Console, Yellow. 800REConsole, Yellow. 800RE
-
2517304518 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250100113 Panel Nut, M6 X 1.0. 600HOEPanel Nut, M6 X 1.0. 600HOE
-
5732610057 Jack Nut M6. 800REJack Nut M6. 800RE
-
6517304105 Console Decal. 600HOEConsole Decal. 600HOE
-
7517304103 RH Decal. 600HOERH Decal. 600HOE
-
8517304104 LH Decal. 600HOELH Decal. 600HOE
-
9250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
13517304575 Gauge SupportGauge Support
-
14250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
15250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
22860200478 Windsheld Kit 375. Includes 22 to 29Windsheld Kit 375. Includes 22 to 29
-
22517304395 Windsheld 375mm. Windshield OnlyWindsheld 375mm. Windshield Only
-
23517303607 Windshield SupportWindshield Support
-
24732610072 Push NutPush Nut
-
25517303604 RH Air DeflectorRH Air Deflector
-
26517303605 LH Air DeflectorLH Air Deflector
-
27250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
28250200025 Washer M5Washer M5
-
29250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
30a517303756 GrommetGrommet
-
30b517303756 GrommetGrommet
-
31860200239 Black Latch Kit. Includes 31 to 32Black Latch Kit. Includes 31 to 32
-
32517303981 Panel LatchPanel Latch
