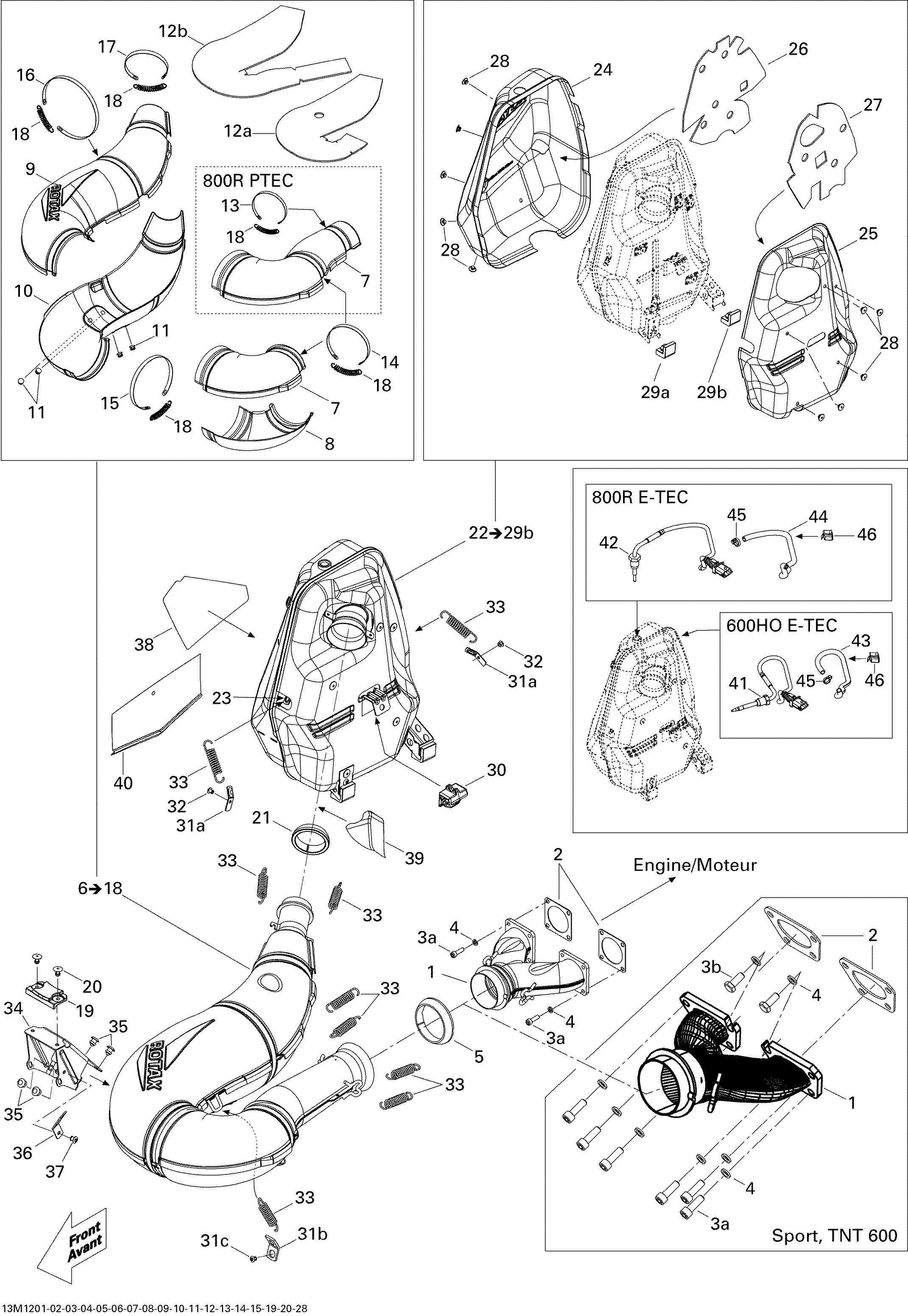

01- Exhaust System для BRP Ski-Doo MXZ X 800RETEC XP - 2012
-
№АртикулНазвание
-
1420673373 Exhaust Manifold. 800R ETECExhaust Manifold. 800R ETEC
-
1420673420 Exhaust Manifold. 600 HO ETECExhaust Manifold. 600 HO ETEC
-
2420430482 Gasket. 800R ETECGasket. 800R ETEC
-
2420850552 Gasket. 600 HO ETECGasket. 600 HO ETEC
-
3a250000414 Socket Head Screw M8 X 22. 800R ETECSocket Head Screw M8 X 22. 800R ETEC
-
3a514054626 Socket Screw M6 X 22, Scotch Grip. 600 HO ETECSocket Screw M6 X 22, Scotch Grip. 600 HO ETEC
-
4250200111 Washer. 800R ETECWasher. 800R ETEC
-
4514053953 Washer. 600 HO ETECWasher. 600 HO ETEC
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054858 Tuned Pipe Ass'y. Includes 6 to 18, 800R ETECTuned Pipe Ass'y. Includes 6 to 18, 800R ETEC
-
6514054832 Tuned Pipe Ass'y. Includes 6 to 18, 600 HO ETECTuned Pipe Ass'y. Includes 6 to 18, 600 HO ETEC
-
7514054485 Front Upper EnveloppeFront Upper Enveloppe
-
8514054486 Front Lower EnveloppeFront Lower Enveloppe
-
9514054590 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11293150091 Henrob RivetHenrob Rivet
-
12a514054487 Insulating WoolInsulating Wool
-
14514054408 Retaining StrapRetaining Strap
-
15514054409 Retaining StrapRetaining Strap
-
16514054410 Retaining StrapRetaining Strap
-
17514053499 Retaining StrapRetaining Strap
-
18514053643 SpringSpring
-
19514054275 BumperBumper
-
20293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
21514054174 Exhaust GasketExhaust Gasket
-
22514054663 Muffler Ass'y. Includes 22 to 29b, 800R ETECMuffler Ass'y. Includes 22 to 29b, 800R ETEC
-
22514054444 Muffler Ass'y. Includes 22 to 29b, 600 HO ETECMuffler Ass'y. Includes 22 to 29b, 600 HO ETEC
-
23514054155 Spring BracketSpring Bracket
-
24514054710 RH Deflector. 800R ETECRH Deflector. 800R ETEC
-
24514054434 RH Deflector. 600 HO ETECRH Deflector. 600 HO ETEC
-
25514054202 LH Deflector. 800R ETECLH Deflector. 800R ETEC
-
25514054202 LH Deflector. 600 HO ETECLH Deflector. 600 HO ETEC
-
26514054711 RH Insulating WoolRH Insulating Wool
-
27514054299 LH Insulating WoolLH Insulating Wool
-
28390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
29a514054274 Lower StopperLower Stopper
-
29b514054496 Lower StopperLower Stopper
-
30514054606 Upper StopperUpper Stopper
-
31a514054391 Spring BracketSpring Bracket
-
31b514054087 Spring BracketSpring Bracket
-
31c293150147 Hemlock RivetHemlock Rivet
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33514054226 SpringSpring
-
38514054488 Reflective SheetReflective Sheet
-
39514054817 Heat ShieldHeat Shield
-
41514054856 Temperature Sensor. 600 HO ETECTemperature Sensor. 600 HO ETEC
-
42514054641 Temperature Sensor. 800R ETECTemperature Sensor. 800R ETEC
-
43515175442 Tubing 6 mm. 600 HO ETECTubing 6 mm. 600 HO ETEC
-
44514054825 Tubing. 800R ETECTubing. 800R ETEC
-
45293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
46414227300 ClipClip
